NXOpen::CAE::UserDefinedSolidBeamSectionBuilder Class Reference

Represents a CAE::UserDefinedSolidBeamSectionBuilder
To create a new instance of this class, use CAE::BeamSectionCollection::CreateUserDefinedSolidBeamSectionBuilder

Created in NX7.5.0. More...

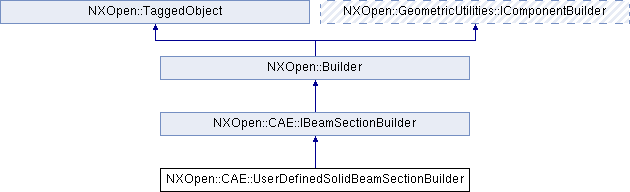

Inheritance diagram for NXOpen::CAE::UserDefinedSolidBeamSectionBuilder:

Public Member Functions
NXString	DescriptorName ()
	Returns the section descriptor name Created in NX7.5.0.
NXOpen::CAE::BeamSection::DirectionOption	DirectionType ()
	Returns the option to define reference vector Created in NX7.5.0.
NXOpen::Direction *	ReferenceVector ()
	Returns the reference vector Created in NX7.5.0.
void	SetDescriptorName (const NXString &descriptorName)
	Sets the section descriptor name Created in NX7.5.0.
void	SetDescriptorName (const char *descriptorName)
	Sets the section descriptor name Created in NX7.5.0.
void	SetDirectionType (NXOpen::CAE::BeamSection::DirectionOption directionType)
	Sets the option to define reference vector Created in NX7.5.0.
void	SetReferenceVector (NXOpen::Direction *referenceVector)
	Sets the reference vector Created in NX7.5.0.
NXOpen::CAE::SelectCAEFace *	SolidFace ()
	Returns the solid face Created in NX7.5.0.
Public Member Functions inherited from NXOpen::CAE::IBeamSectionBuilder
void	GetUserDefinedStressRecoveryPoints (std::vector< NXOpen::Point2d > &points)
	Gets the user-defined stress recovery points.
NXOpen::CAE::PropertyTable *	PropertyTable ()
	Returns the section builder's CAE::PropertyTable Created in NX7.5.0.
NXString	SectionName ()
	Returns the section name Created in NX7.5.0.
void	SetSectionName (const NXString &sectionName)
	Sets the section name Created in NX7.5.0.
void	SetSectionName (const char *sectionName)
	Sets the section name Created in NX7.5.0.
void	SetUserDefinedStressRecoveryPoints (const std::vector< NXOpen::Point2d > &points)
	Sets the user-defined stress recovery points.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::UserDefinedSolidBeamSectionBuilder
To create a new instance of this class, use CAE::BeamSectionCollection::CreateUserDefinedSolidBeamSectionBuilder

Created in NX7.5.0.

Member Function Documentation

NXString NXOpen::CAE::UserDefinedSolidBeamSectionBuilder::DescriptorName

(

)

Returns the section descriptor name
Created in NX7.5.0.

License requirements : None

NXOpen::CAE::BeamSection::DirectionOption NXOpen::CAE::UserDefinedSolidBeamSectionBuilder::DirectionType

(

)

Returns the option to define reference vector
Created in NX7.5.0.

License requirements : None

NXOpen::Direction* NXOpen::CAE::UserDefinedSolidBeamSectionBuilder::ReferenceVector

(

)

Returns the reference vector
Created in NX7.5.0.

License requirements : None

void NXOpen::CAE::UserDefinedSolidBeamSectionBuilder::SetDescriptorName

(

const NXString &

descriptorName

)

Sets the section descriptor name
Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

descriptorName

descriptorname

void NXOpen::CAE::UserDefinedSolidBeamSectionBuilder::SetDescriptorName

(

const char *

descriptorName

)

Sets the section descriptor name
Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

descriptorName

descriptorname

void NXOpen::CAE::UserDefinedSolidBeamSectionBuilder::SetDirectionType

(

NXOpen::CAE::BeamSection::DirectionOption

directionType

)

Sets the option to define reference vector
Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

directionType

directiontype

void NXOpen::CAE::UserDefinedSolidBeamSectionBuilder::SetReferenceVector

(

NXOpen::Direction *

referenceVector

)

Sets the reference vector
Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

referenceVector

referencevector

NXOpen::CAE::SelectCAEFace* NXOpen::CAE::UserDefinedSolidBeamSectionBuilder::SolidFace

(

)

Returns the solid face
Created in NX7.5.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• CAE_UserDefinedSolidBeamSectionBuilder.hxx
