Represents a CAE::PreTestDofSet builder
To create a new instance of this class, use CAE::PreTestSolutionCollection::CreatePretestDofsetBuilder

Created in NX7.5.0. More...

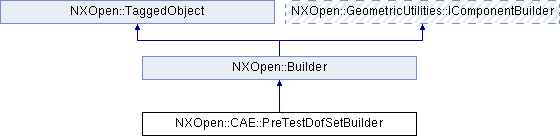

Inheritance diagram for NXOpen::CAE::PreTestDofSetBuilder:

Public Member Functions
NXOpen::CAE::CaeDOFSet *	DofSetSelect ()
	Returns the referrenced CAE::CaeDOFSet Created in NX7.5.0.

NXOpen::CAE::SelectFENodeList *	Nodes ()
	Returns the selected nodes Created in NX7.5.0.

bool	NodesEnabled ()
	Returns the manual selection toggle value Created in NX7.5.0.

void	SetDofSetSelect (NXOpen::CAE::CaeDOFSet *dofSetSelect)
	Sets the referrenced CAE::CaeDOFSet Created in NX7.5.0.

void	SetNodesEnabled (bool nodesEnabled)
	Sets the manual selection toggle value Created in NX7.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::PreTestDofSet builder
To create a new instance of this class, use CAE::PreTestSolutionCollection::CreatePretestDofsetBuilder

Created in NX7.5.0.
