   Represents a @link CAE::PostGraphAcrossIterationsBuilder CAE::PostGraphAcrossIterationsBuilder@endlink
<br> This is an abstract class and cannot be instantiated  <br>

Created in NX9.0.0. More...

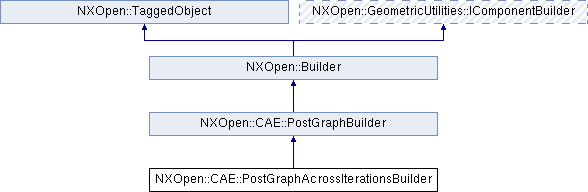

Inheritance diagram for NXOpen::CAE::PostGraphAcrossIterationsBuilder:

Public Types
enum	CombinationMethod { CombinationMethodAverage, CombinationMethodMinimum, CombinationMethodMaximum, CombinationMethodSum, CombinationMethodDifference }
	Defines the methods that can be used to combine multiple values into a single value. More...

enum	IterationLabelingOption { IterationLabelingOptionValue, IterationLabelingOptionId }
	Defines the Iteration labeling options. More...

Public Types inherited from NXOpen::CAE::PostGraphBuilder
enum	DataErrorHandling { DataErrorHandlingSkip, DataErrorHandlingUserValue }
	error handling option when result values are not present for the selected entities More...

enum	EntityType { EntityTypeNode, EntityTypeElement, EntityTypePoint, EntityTypeEdge, EntityTypeFace, EntityTypeBody }
	types of the entity objects which are selected More...

enum	EvalutionErrors { EvalutionErrorsSkip, EvalutionErrorsUserValue, EvalutionErrorsAbort }
	error handling option when there are expression evaluation errors while evaluating the formula More...

enum	GeometryValue { GeometryValueAverage, GeometryValueMinimum, GeometryValueMaximum, GeometryValueSum }
	This option is used to when the geometric entity selected has multiple result values. More...

enum	IncompatibleResult { IncompatibleResultSkip, IncompatibleResultAbort }
	error handling option when incompactible results are selected More...

enum	NodalCombination { NodalCombinationAverage, NodalCombinationMinimum, NodalCombinationMaximum, NodalCombinationSum, NodalCombinationNone }
	nodal combination option for determining the nodal result value for element and element-nodal result More...

Public Member Functions
bool	CombineAcrossEntities ()
	Returns the combine across entities method to be used if CAE::PostGraphAcrossIterationsBuilder::CombineAcrossEntities and CAE::PostGraphAcrossIterationsBuilder::SetCombineAcrossEntities is True Created in NX9.0.0.

NXOpen::CAE::PostGraphAcrossIterationsBuilder::CombinationMethod	CombineValueFromEntitiesOption ()
	Returns the set combine across entities option type Created in NX9.0.0.

int	IterationStepSpacing ()
	Returns the step spacing to be used between the start and end iteration.

NXOpen::CAE::PostGraphAcrossIterationsBuilder::IterationLabelingOption	IterationValueOption ()
	Returns the select iteration type to be set as x axis Created in NX9.0.0.

void	SetCombineAcrossEntities (bool combineAcrossEntities)
	Sets the combine across entities method to be used if CAE::PostGraphAcrossIterationsBuilder::CombineAcrossEntities and CAE::PostGraphAcrossIterationsBuilder::SetCombineAcrossEntities is True Created in NX9.0.0.

void	SetCombineValueFromEntitiesOption (NXOpen::CAE::PostGraphAcrossIterationsBuilder::CombinationMethod combineOption)
	Sets the set combine across entities option type Created in NX9.0.0.

void	SetEndIteration (NXOpen::CAE::BaseIteration *iteration)
	Set end iteration Created in NX9.0.0.

void	SetIterationStepSpacing (int iterationStepSpacing)
	Sets the step spacing to be used between the start and end iteration.

void	SetIterationValueOption (NXOpen::CAE::PostGraphAcrossIterationsBuilder::IterationLabelingOption iterationValue)
	Sets the select iteration type to be set as x axis Created in NX9.0.0.

void	SetStartIteration (NXOpen::CAE::BaseIteration *iteration)
	Set start iteration Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAE::PostGraphBuilder
NXOpen::CAE::Xyplot::ComplexOption2D	ComplexGraphTypes ()
	Returns the complex plot display option while plotting complex result type Created in NX9.0.0.

bool	CreateFieldOption ()
	Returns the option to create field of the across iteration graph created by expression Created in NX9.0.0.

NXOpen::CAE::PostGraphBuilder::EvalutionErrors	EvalutionErrorsOption ()
	Returns the error handling option when there are evaluation errors on selected entities or path Created in NX9.0.0.

NXOpen::CAE::PostGraphBuilder::GeometryValue	GeometryCombinationValue ()
	Returns the geometry value option in case of edge, face or body selection Created in NX9.0.0.

NXOpen::Fields::FieldTable *	GetFieldTable ()
	Gets the field which is created when user sets the CAE::PostGraphBuilder::CreateFieldOption and CAE::PostGraphBuilder::SetCreateFieldOption to true for across iterations type of graphs.

NXString	GraphTitle ()
	Returns the graph title Created in NX9.0.0.

NXOpen::CAE::PostGraphBuilder::IncompatibleResult	IncompatibleResultOption ()
	Returns the error handling option when results are not compatible on selected entities or path Created in NX9.0.0.

NXOpen::CAE::PostGraphBuilder::NodalCombination	NodalCombinationValue ()
	Returns the nodal combination option for determining the nodal value for element and element-nodal results Created in NX9.0.0.

NXOpen::CAE::PostGraphBuilder::DataErrorHandling	NoDataOption ()
	Returns the error handling option when result is not present on selected entities or path Created in NX9.0.0.

bool	SaveAfuOption ()
	Returns the save in AFU option to save graph data as AFU records Created in NX9.0.0.

NXOpen::CAE::PostGraphBuilder::EntityType	SelectedEntityType ()
	Returns the entity type of the tags of entities which passed using SetEntityObjects function Created in NX9.0.0.

void	SetComplexGraphTypes (NXOpen::CAE::Xyplot::ComplexOption2D complexGraphTypes)
	Sets the complex plot display option while plotting complex result type Created in NX9.0.0.

void	SetCreateFieldOption (bool createField)
	Sets the option to create field of the across iteration graph created by expression Created in NX9.0.0.

void	SetEntityIds (bool isnodal, const std::vector< int > &entityIds)
	Set entity ids for extracting result data Created in NX9.0.0.

void	SetEntityObjects (const std::vector< NXOpen::TaggedObject * > &entityObjs)
	Sets the entity objects for extracting result data.

void	SetEvalutionErrorsOption (NXOpen::CAE::PostGraphBuilder::EvalutionErrors evalutionErrorsOption)
	Sets the error handling option when there are evaluation errors on selected entities or path Created in NX9.0.0.

void	SetFreePoints (const std::vector< NXOpen::Point3d > &freePoints)
	Set free points for extracting data Created in NX9.0.0.

void	SetGeometryCombinationValue (NXOpen::CAE::PostGraphBuilder::GeometryValue geometryValue)
	Sets the geometry value option in case of edge, face or body selection Created in NX9.0.0.

void	SetGraphTitle (const NXString &graphTitle)
	Sets the graph title Created in NX9.0.0.

void	SetGraphTitle (const char *graphTitle)
	Sets the graph title Created in NX9.0.0.

void	SetIncompatibleResultOption (NXOpen::CAE::PostGraphBuilder::IncompatibleResult incompatibleResult)
	Sets the error handling option when results are not compatible on selected entities or path Created in NX9.0.0.

void	SetNodalCombinationValue (NXOpen::CAE::PostGraphBuilder::NodalCombination nodalValue)
	Sets the nodal combination option for determining the nodal value for element and element-nodal results Created in NX9.0.0.

void	SetNoDataOption (NXOpen::CAE::PostGraphBuilder::DataErrorHandling noDataOption)
	Sets the error handling option when result is not present on selected entities or path Created in NX9.0.0.

void	SetSaveAfuOption (bool saveAFU)
	Sets the save in AFU option to save graph data as AFU records Created in NX9.0.0.

void	SetSelectedEntityType (NXOpen::CAE::PostGraphBuilder::EntityType geometryEntity)
	Sets the entity type of the tags of entities which passed using SetEntityObjects function Created in NX9.0.0.

void	SetUserData (double userDataOption)
	Sets the error handling value used when error occurs or no data present on entities Created in NX9.0.0.

double	UserData ()
	Returns the error handling value used when error occurs or no data present on entities Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

   Represents a @link CAE::PostGraphAcrossIterationsBuilder CAE::PostGraphAcrossIterationsBuilder@endlink
<br> This is an abstract class and cannot be instantiated  <br>

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::PostGraphAcrossIterationsBuilder::CombinationMethod

Defines the methods that can be used to combine multiple values into a single value.

Enumerator:

CombinationMethodAverage	average
CombinationMethodMinimum	minimum
CombinationMethodMaximum	maximum
CombinationMethodSum	sum
CombinationMethodDifference	difference

enum NXOpen::CAE::PostGraphAcrossIterationsBuilder::IterationLabelingOption

Defines the Iteration labeling options.

Enumerator:

IterationLabelingOptionValue	value
IterationLabelingOptionId	id

Member Function Documentation

bool NXOpen::CAE::PostGraphAcrossIterationsBuilder::CombineAcrossEntities ( )

Returns the combine across entities method to be used if CAE::PostGraphAcrossIterationsBuilder::CombineAcrossEntities and CAE::PostGraphAcrossIterationsBuilder::SetCombineAcrossEntities is True
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::PostGraphAcrossIterationsBuilder::CombinationMethod NXOpen::CAE::PostGraphAcrossIterationsBuilder::CombineValueFromEntitiesOption ( )

Returns the set combine across entities option type
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

int NXOpen::CAE::PostGraphAcrossIterationsBuilder::IterationStepSpacing ( )

Returns the step spacing to be used between the start and end iteration.

       This option can be used to reduce the amount of data graphed.

Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::CAE::PostGraphAcrossIterationsBuilder::IterationLabelingOption NXOpen::CAE::PostGraphAcrossIterationsBuilder::IterationValueOption ( )

Returns the select iteration type to be set as x axis
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

void NXOpen::CAE::PostGraphAcrossIterationsBuilder::SetCombineAcrossEntities ( bool combineAcrossEntities )

Sets the combine across entities method to be used if CAE::PostGraphAcrossIterationsBuilder::CombineAcrossEntities and CAE::PostGraphAcrossIterationsBuilder::SetCombineAcrossEntities is True
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

combineAcrossEntities combineacrossentities

void NXOpen::CAE::PostGraphAcrossIterationsBuilder::SetCombineValueFromEntitiesOption ( NXOpen::CAE::PostGraphAcrossIterationsBuilder::CombinationMethod combineOption )

Sets the set combine across entities option type
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

combineOption combineoption

void NXOpen::CAE::PostGraphAcrossIterationsBuilder::SetEndIteration ( NXOpen::CAE::BaseIteration * iteration )

Set end iteration
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

iteration iteration

void NXOpen::CAE::PostGraphAcrossIterationsBuilder::SetIterationStepSpacing ( int iterationStepSpacing )

Sets the step spacing to be used between the start and end iteration.

       This option can be used to reduce the amount of data graphed.

Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

iterationStepSpacing iterationstepspacing

void NXOpen::CAE::PostGraphAcrossIterationsBuilder::SetIterationValueOption ( NXOpen::CAE::PostGraphAcrossIterationsBuilder::IterationLabelingOption iterationValue )

Sets the select iteration type to be set as x axis
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

iterationValue iterationvalue

void NXOpen::CAE::PostGraphAcrossIterationsBuilder::SetStartIteration ( NXOpen::CAE::BaseIteration * iteration )

Set start iteration
Created in NX9.0.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

Parameters

iteration iteration

The documentation for this class was generated from the following file:

CAE_PostGraphAcrossIterationsBuilder.hxx
