Represents the parameters to control an optimization in sensitivity strategy
Created in NX8.0.0. More...

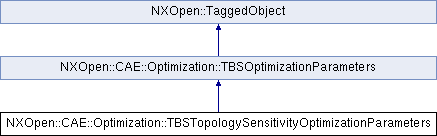

Inheritance diagram for NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters:

Public Types
enum	DensityUpdate { DensityUpdateNormal, DensityUpdateConservative, DensityUpdateAgressive }
	the method defines how the densities are updated in the method of moving asymptotes More...

enum	MaterialInterpolation { MaterialInterpolationSimp, MaterialInterpolationRamp }
	the relationshp between relative density and relative element stiffness More...

Public Member Functions
double	DensityMove ()
	Returns the move limit on design variables Created in NX8.0.0.

NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::DensityUpdate	DensityUpdateOption ()
	Returns the parameter for how the densities are updated Created in NX8.0.0.

NXOpen::CAE::Optimization::TBSEigenvalueOptimizationParameters *	EigenvalueParameters ()
	Returns the eigenvalue optimization control parameters Created in NX8.0.0.

NXOpen::Expression *	FilterRadius ()
	Returns the filter for mesh independence and minimum size Created in NX8.0.0.

NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::MaterialInterpolation	MaterialInterpolationOption ()
	Returns the material interpolation scheme Created in NX8.0.0.

void	SetDensityMove (double densityMove)
	Sets the move limit on design variables Created in NX8.0.0.

void	SetDensityUpdateOption (NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::DensityUpdate densityUpdateOption)
	Sets the parameter for how the densities are updated Created in NX8.0.0.

void	SetMaterialInterpolationOption (NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::MaterialInterpolation materialInterpolationOption)
	Sets the material interpolation scheme Created in NX8.0.0.

Detailed Description

Represents the parameters to control an optimization in sensitivity strategy
Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::DensityUpdate

the method defines how the densities are updated in the method of moving asymptotes

Enumerator:

DensityUpdateNormal	Normal strategy.
DensityUpdateConservative	Conservative strategy.
DensityUpdateAgressive	Agressive strategy.

enum NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::MaterialInterpolation

the relationshp between relative density and relative element stiffness

Enumerator:

MaterialInterpolationSimp	Solid Isotropic material with penalization.
MaterialInterpolationRamp	Rational approximation of material properties.

Member Function Documentation

double NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::DensityMove ( )

Returns the move limit on design variables
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::DensityUpdate NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::DensityUpdateOption ( )

Returns the parameter for how the densities are updated
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::TBSEigenvalueOptimizationParameters* NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::EigenvalueParameters ( )

Returns the eigenvalue optimization control parameters
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::FilterRadius ( )

Returns the filter for mesh independence and minimum size
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::MaterialInterpolation NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::MaterialInterpolationOption ( )

Returns the material interpolation scheme
Created in NX8.0.0.

License requirements : None

void NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::SetDensityMove ( double densityMove )

Sets the move limit on design variables
Created in NX8.0.0.

License requirements : cae_opt_topo ("NX Topology Optimization") OR cae_opt_topobead ("NX Bead Optimization") OR cae_opt_toposhape ("NX Shape Optimization")

Parameters

densityMove densitymove

void NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::SetDensityUpdateOption ( NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::DensityUpdate densityUpdateOption )

Sets the parameter for how the densities are updated
Created in NX8.0.0.

License requirements : cae_opt_topo ("NX Topology Optimization") OR cae_opt_topobead ("NX Bead Optimization") OR cae_opt_toposhape ("NX Shape Optimization")

Parameters

densityUpdateOption densityupdateoption

void NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::SetMaterialInterpolationOption ( NXOpen::CAE::Optimization::TBSTopologySensitivityOptimizationParameters::MaterialInterpolation materialInterpolationOption )

Sets the material interpolation scheme
Created in NX8.0.0.

License requirements : cae_opt_topo ("NX Topology Optimization") OR cae_opt_topobead ("NX Bead Optimization") OR cae_opt_toposhape ("NX Shape Optimization")

Parameters

materialInterpolationOption materialinterpolationoption

The documentation for this class was generated from the following file:

CAE_Optimization_TBSTopologySensitivityOptimizationParameters.hxx
