NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters Class Reference

Represents the parameters to control an optimization in controller strategy
Created in NX8.0.0. More...

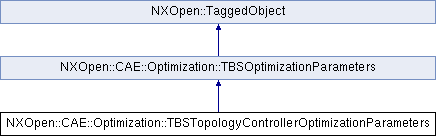

Inheritance diagram for NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters:

Public Types
enum	AutoFrozen { AutoFrozenLoad, AutoFrozenOff, AutoFrozenSpc, AutoFrozenBoth }
	Defines the automatic fromzen strategy. More...
enum	Speed {   SpeedVerySlow, SpeedSlow, SpeedModerate, SpeedMedium,   SpeedFast, SpeedIteration }
	Specifies the step size of increment. More...
enum	VolumeDefinitionMethod { VolumeDefinitionMethodPercent, VolumeDefinitionMethodAbsolute }
	Represents the definition of volume that can be removed immediatedly in the first design cycle. More...

Public Member Functions
NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::AutoFrozen	AutomaticFrozenOption ()
	Returns the automatic frozen option Created in NX8.0.0.
int	IterationNumbers ()
	Returns the number of iterations.
void	SetAutomaticFrozenOption (NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::AutoFrozen autoFrozen)
	Sets the automatic frozen option Created in NX8.0.0.
void	SetIterationNumbers (int numIterations)
	Sets the number of iterations.
void	SetSpeedOption (NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::Speed speedOption)
	Sets the speed size of increment Created in NX8.0.0.
void	SetStartDeleteVolume (double startDeleteVolume)
	Sets the volume that is deleted in the first design cycle Created in NX8.0.0.
void	SetVolumeDefinitionOption (NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::VolumeDefinitionMethod volumeDefinitionOption)
	Sets the volume definition option Created in NX8.0.0.
NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::Speed	SpeedOption ()
	Returns the speed size of increment Created in NX8.0.0.
double	StartDeleteVolume ()
	Returns the volume that is deleted in the first design cycle Created in NX8.0.0.
NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::VolumeDefinitionMethod	VolumeDefinitionOption ()
	Returns the volume definition option Created in NX8.0.0.

Detailed Description

Represents the parameters to control an optimization in controller strategy
Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::AutoFrozen

Defines the automatic fromzen strategy.

Enumerator:

AutoFrozenLoad	All loaded elements and nodes are excluded from the optimization.
AutoFrozenOff	Loaded elements are optimizable.
AutoFrozenSpc	Elements with boundary conditions are excluded from the optimization.
AutoFrozenBoth	All loaded elements, elements with load nodes with boundary conditions are excluded from the optimization.

enum NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::Speed

Specifies the step size of increment.

Enumerator:

SpeedVerySlow	Very small stepsize.
SpeedSlow	Small stepsize.
SpeedModerate	Moderate stepsize.
SpeedMedium	Medium stepsize.
SpeedFast	Fast large step size.
SpeedIteration	Step size is modified dynamically so the optimization end after the given number of iterations.

enum NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::VolumeDefinitionMethod

Represents the definition of volume that can be removed immediatedly in the first design cycle.

Enumerator:

VolumeDefinitionMethodPercent	Specifying the volume in percentage.
VolumeDefinitionMethodAbsolute	Specifying the absolute volume.

Member Function Documentation

NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::AutoFrozen NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::AutomaticFrozenOption

(

)

Returns the automatic frozen option
Created in NX8.0.0.

License requirements : None

int NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::IterationNumbers

(

)

Returns the number of iterations.

Only available when CAE::Optimization::TBSTopologyControllerOptimizationParameters::SpeedOption is CAE::Optimization::TBSTopologyControllerOptimizationParameters::SpeedIteration
Created in NX8.0.0.

License requirements : None

void NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::SetAutomaticFrozenOption

(

NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::AutoFrozen

autoFrozen

)

Sets the automatic frozen option
Created in NX8.0.0.

License requirements : cae_opt_topo ("NX Topology Optimization") OR cae_opt_topobead ("NX Bead Optimization") OR cae_opt_toposhape ("NX Shape Optimization")

Parameters

autoFrozen

autofrozen

void NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::SetIterationNumbers

(

int

numIterations

)

Sets the number of iterations.

Only available when CAE::Optimization::TBSTopologyControllerOptimizationParameters::SpeedOption is CAE::Optimization::TBSTopologyControllerOptimizationParameters::SpeedIteration
Created in NX8.0.0.

License requirements : cae_opt_topo ("NX Topology Optimization") OR cae_opt_topobead ("NX Bead Optimization") OR cae_opt_toposhape ("NX Shape Optimization")

Parameters

numIterations

numiterations

void NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::SetSpeedOption

(

NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::Speed

speedOption

)

Sets the speed size of increment
Created in NX8.0.0.

License requirements : cae_opt_topo ("NX Topology Optimization") OR cae_opt_topobead ("NX Bead Optimization") OR cae_opt_toposhape ("NX Shape Optimization")

Parameters

speedOption

speedoption

void NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::SetStartDeleteVolume

(

double

startDeleteVolume

)

Sets the volume that is deleted in the first design cycle
Created in NX8.0.0.

License requirements : cae_opt_topo ("NX Topology Optimization") OR cae_opt_topobead ("NX Bead Optimization") OR cae_opt_toposhape ("NX Shape Optimization")

Parameters

startDeleteVolume

startdeletevolume

void NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::SetVolumeDefinitionOption

(

NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::VolumeDefinitionMethod

volumeDefinitionOption

)

Sets the volume definition option
Created in NX8.0.0.

License requirements : cae_opt_topo ("NX Topology Optimization") OR cae_opt_topobead ("NX Bead Optimization") OR cae_opt_toposhape ("NX Shape Optimization")

Parameters

volumeDefinitionOption

volumedefinitionoption

NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::Speed NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::SpeedOption

(

)

Returns the speed size of increment
Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::StartDeleteVolume

(

)

Returns the volume that is deleted in the first design cycle
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::VolumeDefinitionMethod NXOpen::CAE::Optimization::TBSTopologyControllerOptimizationParameters::VolumeDefinitionOption

(

)

Returns the volume definition option
Created in NX8.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• CAE_Optimization_TBSTopologyControllerOptimizationParameters.hxx
