Represents the builder of CAE::Optimization::TBSShapeRestrictArea
To create a new instance of this class, use CAE::Optimization::TBSOptimizationManager::CreateShapeRestrictAreaBuilder

Created in NX8.5.0. More...

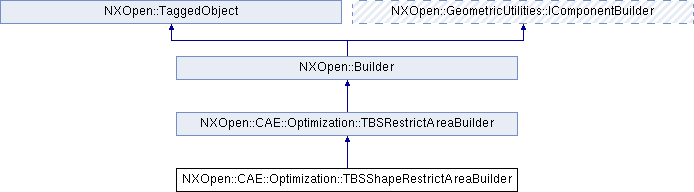

Inheritance diagram for NXOpen::CAE::Optimization::TBSShapeRestrictAreaBuilder:

Public Member Functions
NXOpen::CAE::Optimization::TBSShapeLinkCondition *	ActLinkConditionButton ()
	Returns the link condition Created in NX8.5.0.

bool	CheckBoundaryCondition ()
	Returns a value indicating whether to accept nodes of boundary condition as constraint Created in NX8.5.0.

bool	CheckDof ()
	Returns a value indicating whether to restrict the dispacement in the coordinate direction of the referenced coordinate system Created in NX8.5.0.

NXOpen::CAE::Optimization::TBSGroupDefinition *	CheckedElements ()
	Returns the elements checked for penetration Created in NX8.5.0.

bool	CheckElementGroup ()
	Returns a value indicating whether to check elements for penetration Created in NX8.5.0.

bool	CheckLinkCondition ()
	Returns a value indicating whether to check link condition Created in NX8.5.0.

bool	CheckMaximumGrowValue ()
	Returns a value indicating whether to check maximum grow value Created in NX8.5.0.

bool	CheckMaximumShrinkValue ()
	Returns a value indicating whether to check maximum shrink value Created in NX8.5.0.

NXOpen::CAE::Optimization::TBSCheckDOF *	DofSettings ()
	Returns the DOF settings Created in NX8.5.0.

NXOpen::Expression *	MaximumGrowValue ()
	Returns the maximum grow value Created in NX8.5.0.

NXOpen::Expression *	MaximumShrinkValue ()
	Returns the maximum shrink value Created in NX8.5.0.

NXOpen::CAE::Optimization::TBSGroupDefinition *	RestrictedNodes ()
	Returns the nodes to react on the restrictions Created in NX8.5.0.

void	SetCheckBoundaryCondition (bool boundaryCondition)
	Sets a value indicating whether to accept nodes of boundary condition as constraint Created in NX8.5.0.

void	SetCheckDof (bool checkDof)
	Sets a value indicating whether to restrict the dispacement in the coordinate direction of the referenced coordinate system Created in NX8.5.0.

void	SetCheckElementGroup (bool checkElements)
	Sets a value indicating whether to check elements for penetration Created in NX8.5.0.

void	SetCheckLinkCondition (bool checkLinkCondition)
	Sets a value indicating whether to check link condition Created in NX8.5.0.

void	SetCheckMaximumGrowValue (bool isMaxGrowValue)
	Sets a value indicating whether to check maximum grow value Created in NX8.5.0.

void	SetCheckMaximumShrinkValue (bool isMaxShrinkValue)
	Sets a value indicating whether to check maximum shrink value Created in NX8.5.0.

Public Member Functions inherited from NXOpen::CAE::Optimization::TBSRestrictAreaBuilder
NXOpen::CAE::Optimization::NameDescription *	NameDescription ()
	Returns the name description Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the builder of CAE::Optimization::TBSShapeRestrictArea
To create a new instance of this class, use CAE::Optimization::TBSOptimizationManager::CreateShapeRestrictAreaBuilder

Created in NX8.5.0.

Member Function Documentation

NXOpen::CAE::Optimization::TBSShapeLinkCondition* NXOpen::CAE::Optimization::TBSShapeRestrictAreaBuilder::ActLinkConditionButton ( )

Returns the link condition
Created in NX8.5.0.

License requirements : None

bool NXOpen::CAE::Optimization::TBSShapeRestrictAreaBuilder::CheckBoundaryCondition ( )

Returns a value indicating whether to accept nodes of boundary condition as constraint
Created in NX8.5.0.

License requirements : None

bool NXOpen::CAE::Optimization::TBSShapeRestrictAreaBuilder::CheckDof ( )

Returns a value indicating whether to restrict the dispacement in the coordinate direction of the referenced coordinate system
Created in NX8.5.0.

License requirements : None

NXOpen::CAE::Optimization::TBSGroupDefinition* NXOpen::CAE::Optimization::TBSShapeRestrictAreaBuilder::CheckedElements ( )

Returns the elements checked for penetration
Created in NX8.5.0.

License requirements : None

bool NXOpen::CAE::Optimization::TBSShapeRestrictAreaBuilder::CheckElementGroup ( )

Returns a value indicating whether to check elements for penetration
Created in NX8.5.0.

License requirements : None

bool NXOpen::CAE::Optimization::TBSShapeRestrictAreaBuilder::CheckLinkCondition ( )

Returns a value indicating whether to check link condition
Created in NX8.5.0.

License requirements : None

bool NXOpen::CAE::Optimization::TBSShapeRestrictAreaBuilder::CheckMaximumGrowValue ( )

Returns a value indicating whether to check maximum grow value
Created in NX8.5.0.

License requirements : None

bool NXOpen::CAE::Optimization::TBSShapeRestrictAreaBuilder::CheckMaximumShrinkValue ( )

Returns a value indicating whether to check maximum shrink value
Created in NX8.5.0.

License requirements : None

NXOpen::CAE::Optimization::TBSCheckDOF* NXOpen::CAE::Optimization::TBSShapeRestrictAreaBuilder::DofSettings ( )

Returns the DOF settings
Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::CAE::Optimization::TBSShapeRestrictAreaBuilder::MaximumGrowValue ( )

Returns the maximum grow value
Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::CAE::Optimization::TBSShapeRestrictAreaBuilder::MaximumShrinkValue ( )

Returns the maximum shrink value
Created in NX8.5.0.

License requirements : None

NXOpen::CAE::Optimization::TBSGroupDefinition* NXOpen::CAE::Optimization::TBSShapeRestrictAreaBuilder::RestrictedNodes ( )

Returns the nodes to react on the restrictions
Created in NX8.5.0.

License requirements : None

void NXOpen::CAE::Optimization::TBSShapeRestrictAreaBuilder::SetCheckBoundaryCondition ( bool boundaryCondition )

Sets a value indicating whether to accept nodes of boundary condition as constraint
Created in NX8.5.0.
