Represents the builder of CAE::Optimization::TBSDesignVariable
To create a new instance of this class, use CAE::Optimization::TBSOptimizationManager::CreateDesignVariableBuilder
Created in NX8.0.0.
More...

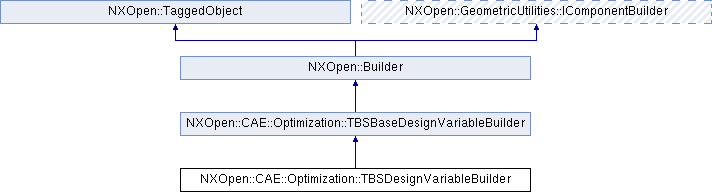

Inheritance diagram for NXOpen::CAE::Optimization::TBSDesignVariableBuilder:
Additional Inherited Members | |
 Public Types inherited from NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder | |
| enum | GroupOperator { GroupOperatorMax, GroupOperatorMin, GroupOperatorSum, GroupOperatorCount, GroupOperatorDeviation } |
| Defines the operator type to determine the design variable that used within the selection area. More... | |
| Public Member Functions inherited from NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder | |
| NXOpen::CAE::Optimization::TBSGroupDefinition * | DesignElements () |
| Returns the element group in which the value of the design variable is to be determined Created in NX8.0.0. | |
| NXOpen::CAE::Optimization::TBSGroupDefinition * | DesignNodes () |
| Returns the node group in which the value of the design variable is to be determined Created in NX8.0.0. | |
| NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::GroupOperator | GroupOperatorOption () |
| Returns the group operator option Created in NX8.0.0. | |
| NXOpen::CAE::Optimization::TBSLoadCaseManager * | LoadCases () |
| Returns the load cases Created in NX8.0.0. | |
| NXOpen::CAE::Optimization::NameDescription * | NameDescription () |
| Returns the name description Created in NX8.0.0. | |
| NXOpen::CoordinateSystem * | ReferenceCoordinateSystem () |
| Returns the referenced coordinate system Created in NX8.0.0. | |
| NXOpen::CAE::Optimization::TBSGroupDefinition::GroupElementType | SelectionAreaType () |
| Returns the type of selection location on which design variable is applied Created in NX8.0.0. | |
| void | SetGroupOperatorOption (NXOpen::CAE::Optimization::TBSBaseDesignVariableBuilder::GroupOperator groupOperatorOption) |
| Sets the group operator option Created in NX8.0.0. | |
| void | SetReferenceCoordinateSystem (NXOpen::CoordinateSystem *referenceCsys) |
| Sets the referenced coordinate system Created in NX8.0.0. | |
| void | SetSelectionAreaType (NXOpen::CAE::Optimization::TBSGroupDefinition::GroupElementType areaType) |
| Sets the type of selection location on which design variable is applied Created in NX8.0.0. | |
Detailed Description
Represents the builder of CAE::Optimization::TBSDesignVariable
To create a new instance of this class, use CAE::Optimization::TBSOptimizationManager::CreateDesignVariableBuilder
Created in NX8.0.0.
The documentation for this class was generated from the following file:
- CAE_Optimization_TBSDesignVariableBuilder.hxx
