NXOpen::CAE::Optimization::DAOSolutionBuilder Class Reference

Represents a CAE::Optimization::DAOSolutionBuilder . More...

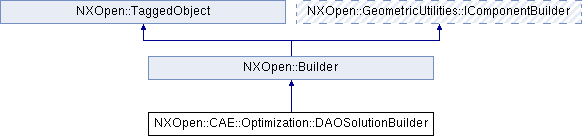

Inheritance diagram for NXOpen::CAE::Optimization::DAOSolutionBuilder:

Public Member Functions
NXOpen::CAE::SimSolution *	AnalysisSolution ()
	Returns the optimization solution analysis solution Created in NX8.0.0.
NXString	Name ()
	Returns the optimization solution name Created in NX8.0.0.
void	SetAnalysisSolution (NXOpen::CAE::SimSolution *analysisSolution)
	Sets the optimization solution analysis solution Created in NX8.0.0.
void	SetName (const NXString &solutionName)
	Sets the optimization solution name Created in NX8.0.0.
void	SetName (const char *solutionName)
	Sets the optimization solution name Created in NX8.0.0.
void	SetSolverType (NXOpen::CAE::Optimization::Solver solverType)
	Sets the optimization solution solver type Created in NX8.0.0.
NXOpen::CAE::Optimization::Solver	SolverType ()
	Returns the optimization solution solver type Created in NX8.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::Optimization::DAOSolutionBuilder .

To create a new instance of this class, use CAE::Optimization::DAOSolutionCollection::CreateOptimizationBuilder

Created in NX8.0.0.

Member Function Documentation

NXOpen::CAE::SimSolution* NXOpen::CAE::Optimization::DAOSolutionBuilder::AnalysisSolution

(

)

Returns the optimization solution analysis solution
Created in NX8.0.0.

License requirements : None

NXString NXOpen::CAE::Optimization::DAOSolutionBuilder::Name

(

)

Returns the optimization solution name
Created in NX8.0.0.

License requirements : None

void NXOpen::CAE::Optimization::DAOSolutionBuilder::SetAnalysisSolution

(

NXOpen::CAE::SimSolution *

analysisSolution

)

Sets the optimization solution analysis solution
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

analysisSolution

Analysis solution of optimization solution

void NXOpen::CAE::Optimization::DAOSolutionBuilder::SetName

(

const NXString &

solutionName

)

Sets the optimization solution name
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

solutionName

Optimization solution name

void NXOpen::CAE::Optimization::DAOSolutionBuilder::SetName

(

const char *

solutionName

)

Sets the optimization solution name
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

solutionName

Optimization solution name

void NXOpen::CAE::Optimization::DAOSolutionBuilder::SetSolverType

(

NXOpen::CAE::Optimization::Solver

solverType

)

Sets the optimization solution solver type
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

solverType

Optimization solution solver type

NXOpen::CAE::Optimization::Solver NXOpen::CAE::Optimization::DAOSolutionBuilder::SolverType

(

)

Returns the optimization solution solver type
Created in NX8.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• CAE_Optimization_DAOSolutionBuilder.hxx
