Represents a CAE::Optimization::DAOConstraintBuilder . More...

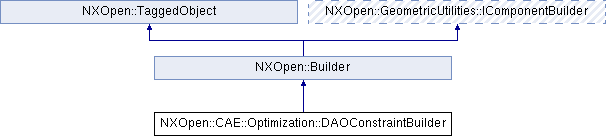

Inheritance diagram for NXOpen::CAE::Optimization::DAOConstraintBuilder:

Public Member Functions
NXOpen::CAE::Optimization::Category	CategoryType ()
	Returns the category type Created in NX8.0.0.

NXOpen::CAE::Optimization::Geometry	GeometryType ()
	Returns the geometry type Created in NX8.0.0.

std::vector < NXOpen::DisplayableObject * >	GetGeometry ()
	Gets the target geometry.

NXOpen::CAE::Optimization::Hookes	Hookes2dLocation ()
	Returns the Hooke's 2d location

NXOpen::CAE::Optimization::Limit	LimitType ()
	Returns the limit type Created in NX8.0.0.

NXOpen::Unit *	LimitUnit ()
	Returns the limit unit Created in NX8.0.0.

double	LimitValue ()
	Returns the limit value Created in NX8.0.0.

int	LoadCase ()
	Returns the frequency load case index Created in NX8.5.0.

int	ModeNumber ()
	Returns the frequency mode number Created in NX8.0.0.

NXOpen::CAE::Optimization::Response	Response ()
	Returns the constraint response Created in NX8.0.0.

NXOpen::CAE::ResultMeasure *	ResultMeasure ()
	Returns the result measure Created in NX8.5.0.

void	SetCategoryType (NXOpen::CAE::Optimization::Category categoryType)
	Sets the category type Created in NX8.0.0.

void	SetGeometry (const std::vector< NXOpen::DisplayableObject * > &geometry)
	Sets the target geometry Created in NX8.0.0.

void	SetGeometryType (NXOpen::CAE::Optimization::Geometry geometryType)
	Sets the geometry type Created in NX8.0.0.

void	SetHookes2dLocation (NXOpen::CAE::Optimization::Hookes hookesLocation)
	Sets the Hooke's 2d location

void	SetLimitType (NXOpen::CAE::Optimization::Limit limitType)
	Sets the limit type Created in NX8.0.0.

void	SetLimitUnit (NXOpen::Unit *targetUnit)
	Sets the limit unit Created in NX8.0.0.

void	SetLimitValue (double limitValue)
	Sets the limit value Created in NX8.0.0.

void	SetLoadCase (int loadcase)
	Sets the frequency load case index Created in NX8.5.0.

void	SetModeNumber (int modeNumber)
	Sets the frequency mode number Created in NX8.0.0.

void	SetResponse (NXOpen::CAE::Optimization::Response constraintResponse)
	Sets the constraint response Created in NX8.0.0.

void	SetResultMeasure (NXOpen::CAE::ResultMeasure *resMeas)
	Sets the result measure Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::Optimization::DAOConstraintBuilder .

To create a new instance of this class, use CAE::Optimization::DAOSolutionCollection::CreateConstraintBuilder

Created in NX8.0.0.

Member Function Documentation

NXOpen::CAE::Optimization::Category NXOpen::CAE::Optimization::DAOConstraintBuilder::CategoryType ( )

Returns the category type
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::Geometry NXOpen::CAE::Optimization::DAOConstraintBuilder::GeometryType ( )

Returns the geometry type
Created in NX8.0.0.

License requirements : None

std::vector<NXOpen::DisplayableObject *> NXOpen::CAE::Optimization::DAOConstraintBuilder::GetGeometry ( )

Gets the target geometry.

Returns: Target geometry
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::Hookes NXOpen::CAE::Optimization::DAOConstraintBuilder::Hookes2dLocation ( )

Returns the Hooke's 2d location

Deprecated:: Deprecated in NX8.5.0.

Use the ShellSection property on one of the following classes - CAE::ResultMeasureResultSectionOptions , CAE::ResultMeasureResultDirectionSectionOptions , or CAE::ResultMeasureResultAllOptions

Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::Limit NXOpen::CAE::Optimization::DAOConstraintBuilder::LimitType ( )

Returns the limit type
Created in NX8.0.0.

License requirements : None

NXOpen::Unit* NXOpen::CAE::Optimization::DAOConstraintBuilder::LimitUnit ( )

Returns the limit unit
Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::Optimization::DAOConstraintBuilder::LimitValue ( )

Returns the limit value
Created in NX8.0.0.

License requirements : None

int NXOpen::CAE::Optimization::DAOConstraintBuilder::LoadCase ( )

Returns the frequency load case index
Created in NX8.5.0.

License requirements : None

int NXOpen::CAE::Optimization::DAOConstraintBuilder::ModeNumber ( )

Returns the frequency mode number
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Optimization::Response NXOpen::CAE::Optimization::DAOConstraintBuilder::Response ( )

Returns the constraint response
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::ResultMeasure* NXOpen::CAE::Optimization::DAOConstraintBuilder::ResultMeasure ( )

Returns the result measure
Created in NX8.5.0.

License requirements : None

void NXOpen::CAE::Optimization::DAOConstraintBuilder::SetCategoryType ( NXOpen::CAE::Optimization::Category categoryType )

Sets the category type
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

categoryType Category type

void NXOpen::CAE::Optimization::DAOConstraintBuilder::SetGeometry ( const std::vector< NXOpen::DisplayableObject * > & geometry )

Sets the target geometry
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

geometry Target geometry

void NXOpen::CAE::Optimization::DAOConstraintBuilder::SetGeometryType ( NXOpen::CAE::Optimization::Geometry geometryType )

Sets the geometry type
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

geometryType Geometry type

void NXOpen::CAE::Optimization::DAOConstraintBuilder::SetHookes2dLocation ( NXOpen::CAE::Optimization::Hookes hookesLocation )

Sets the Hooke's 2d location

Deprecated:: Deprecated in NX8.5.0.

Use the ShellSection property on one of the following classes - CAE::ResultMeasureResultSectionOptions , CAE::ResultMeasureResultDirectionSectionOptions , or CAE::ResultMeasureResultAllOptions

Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

hookesLocation Hook location

void NXOpen::CAE::Optimization::DAOConstraintBuilder::SetLimitType ( NXOpen::CAE::Optimization::Limit limitType )

Sets the limit type
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

limitType Limit type

void NXOpen::CAE::Optimization::DAOConstraintBuilder::SetLimitUnit ( NXOpen::Unit * targetUnit )

Sets the limit unit
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

targetUnit Limit unit

void NXOpen::CAE::Optimization::DAOConstraintBuilder::SetLimitValue ( double limitValue )

Sets the limit value
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

limitValue Limit value

void NXOpen::CAE::Optimization::DAOConstraintBuilder::SetLoadCase ( int loadcase )

Sets the frequency load case index
Created in NX8.5.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

loadcase loadcase

void NXOpen::CAE::Optimization::DAOConstraintBuilder::SetModeNumber ( int modeNumber )

Sets the frequency mode number
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

modeNumber Mode number

void NXOpen::CAE::Optimization::DAOConstraintBuilder::SetResponse ( NXOpen::CAE::Optimization::Response constraintResponse )

Sets the constraint response
Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

constraintResponse Constraint response

void NXOpen::CAE::Optimization::DAOConstraintBuilder::SetResultMeasure ( NXOpen::CAE::ResultMeasure * resMeas )

Sets the result measure
Created in NX8.5.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

resMeas resmeas

The documentation for this class was generated from the following file:

CAE_Optimization_DAOConstraintBuilder.hxx
