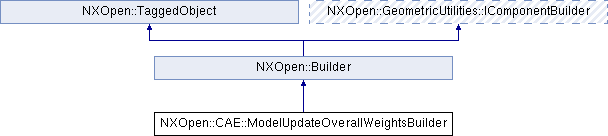

Inheritance diagram for NXOpen::CAE::ModelUpdateOverallWeightsBuilder:

Public Member Functions
double	Frequencies ()
	Returns the overall weights of frequency targets Created in NX7.5.0.

double	ModeShapes ()
	Returns the overall weights of mode shape targets Created in NX7.5.0.

void	SetFrequencies (double frequencies)
	Sets the overall weights of frequency targets Created in NX7.5.0.

void	SetModeShapes (double modeShapes)
	Sets the overall weights of mode shape targets Created in NX7.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Member Function Documentation

double NXOpen::CAE::ModelUpdateOverallWeightsBuilder::Frequencies ( )

Returns the overall weights of frequency targets
Created in NX7.5.0.

License requirements : None

double NXOpen::CAE::ModelUpdateOverallWeightsBuilder::ModeShapes ( )

Returns the overall weights of mode shape targets
Created in NX7.5.0.

License requirements : None

void NXOpen::CAE::ModelUpdateOverallWeightsBuilder::SetFrequencies ( double frequencies )

Sets the overall weights of frequency targets
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

Parameters

frequencies frequencies

void NXOpen::CAE::ModelUpdateOverallWeightsBuilder::SetModeShapes ( double modeShapes )

Sets the overall weights of mode shape targets
Created in NX7.5.0.

License requirements : nx_correl_update ("FE Model Update")

Parameters

modeShapes modeshapes
