This class is the builder that is used for the rapid creation of design variables. More...

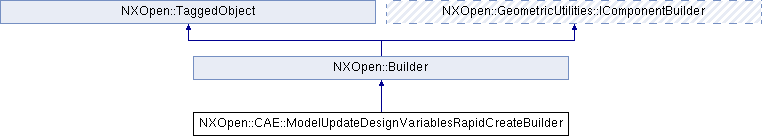

Inheritance diagram for NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder:

Public Types
enum	DesignVariableTypeEnum { DesignVariableTypeEnumMaterial, DesignVariableTypeEnumPhysical }
	The enum for the design variable type. More...

enum	MaterialTypesEnum { MaterialTypesEnumMat1, MaterialTypesEnumMat2, MaterialTypesEnumMat3, MaterialTypesEnumMat8, MaterialTypesEnumMat9 }
	The enum for the material type. More...

enum	PhysicalTypesEnum { PhysicalTypesEnumPbar, PhysicalTypesEnumPbarl, PhysicalTypesEnumPbeam, PhysicalTypesEnumPbeaml, PhysicalTypesEnumPbush, PhysicalTypesEnumPdamp, PhysicalTypesEnumPelas, PhysicalTypesEnumPgap, PhysicalTypesEnumPmass, PhysicalTypesEnumProd, PhysicalTypesEnumPshear, PhysicalTypesEnumPshell, PhysicalTypesEnumPtube, PhysicalTypesEnumPvisc }
	The enum for the physical type. More...

Public Member Functions
NXString	CardName ()
	Returns the card name Created in NX8.0.1.

void	DeselectAllEntities ()
	This command deselects all the entities.

void	DeselectAllFields ()
	This command deselects all the fields.

NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::DesignVariableTypeEnum	DesignVariableType ()
	Returns the design variable type Created in NX8.0.1.

bool	HasInitialValue ()
	Returns the has initial value Created in NX8.0.1.

bool	HasLowerBound ()
	Returns the has lower bound Created in NX8.0.1.

bool	HasUpperBound ()
	Returns the has upper bound Created in NX8.0.1.

double	InitialValue ()
	Returns the initial value Created in NX8.0.1.

double	LowerBound ()
	Returns the lower bound Created in NX8.0.1.

NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::MaterialTypesEnum	MaterialTypes ()
	Returns the material types Created in NX8.0.1.

NXString	NameSeed ()
	Returns the name seed Created in NX8.0.1.

NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::PhysicalTypesEnum	PhysicalTypes ()
	Returns the physical types Created in NX8.0.1.

void	SelectAllEntities ()
	This command selects all the entities.

void	SelectAllFields ()
	This command selects all the fields.

void	SelectEntity (const NXString &entityName)
	This command selects one entity.

void	SelectEntity (const char *entityName)
	This command selects one entity.

void	SelectField (const NXString &field)
	This command selects one field.

void	SelectField (const char *field)
	This command selects one field.

void	SetCardName (const NXString &cardName)
	Sets the card name Created in NX8.0.1.

void	SetCardName (const char *cardName)
	Sets the card name Created in NX8.0.1.

void	SetDesignVariableType (NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::DesignVariableTypeEnum designVariableType)
	Sets the design variable type Created in NX8.0.1.

void	SetHasInitialValue (bool initialValue)
	Sets the has initial value Created in NX8.0.1.

void	SetHasLowerBound (bool lowerBound)
	Sets the has lower bound Created in NX8.0.1.

void	SetHasUpperBound (bool upperBound)
	Sets the has upper bound Created in NX8.0.1.

void	SetInitialValue (double initialValue)
	Sets the initial value Created in NX8.0.1.

void	SetLowerBound (double lowerBound)
	Sets the lower bound Created in NX8.0.1.

void	SetMaterialTypes (NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::MaterialTypesEnum materialTypes)
	Sets the material types Created in NX8.0.1.

void	SetNameSeed (const NXString &title)
	Sets the name seed Created in NX8.0.1.

void	SetNameSeed (const char *title)
	Sets the name seed Created in NX8.0.1.

void	SetPhysicalTypes (NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::PhysicalTypesEnum physicalTypes)
	Sets the physical types Created in NX8.0.1.

void	SetUpperBound (double upperBound)
	Sets the upper bound Created in NX8.0.1.

double	UpperBound ()
	Returns the upper bound Created in NX8.0.1.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This class is the builder that is used for the rapid creation of design variables.

To create a new instance of this class, use CAE::CorrelManager::CreateModelUpdateDesignVariablesRapidCreateBuilderBuilder

Created in NX8.0.1.

Member Enumeration Documentation

enum NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::DesignVariableTypeEnum

The enum for the design variable type.

Enumerator:

DesignVariableTypeEnumMaterial	material
DesignVariableTypeEnumPhysical	physical

enum NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::MaterialTypesEnum

The enum for the material type.

Enumerator:

MaterialTypesEnumMat1	mat1
MaterialTypesEnumMat2	mat2
MaterialTypesEnumMat3	mat3
MaterialTypesEnumMat8	mat8
MaterialTypesEnumMat9	mat9

enum NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::PhysicalTypesEnum

The enum for the physical type.

Enumerator:

PhysicalTypesEnumPbar	pbar
PhysicalTypesEnumPbarl	pbarl
PhysicalTypesEnumPbeam	pbeam
PhysicalTypesEnumPbeaml	pbeaml
PhysicalTypesEnumPbush	pbush
PhysicalTypesEnumPdamp	pdamp
PhysicalTypesEnumPelas	pelas
PhysicalTypesEnumPgap	pgap
PhysicalTypesEnumPmass	pmass
PhysicalTypesEnumProd	prod
PhysicalTypesEnumPshear	pshear
PhysicalTypesEnumPshell	pshell
PhysicalTypesEnumPtube	ptube
PhysicalTypesEnumPvisc	pvisc

Member Function Documentation

NXString NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::CardName ( )

Returns the card name
Created in NX8.0.1.

License requirements : None

void NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::DeselectAllEntities ( )

This command deselects all the entities.

Created in NX8.0.1.

License requirements : nx_correl_update ("FE Model Update")

void NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::DeselectAllFields ( )

This command deselects all the fields.

Created in NX8.0.1.

License requirements : nx_correl_update ("FE Model Update")

NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::DesignVariableTypeEnum NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::DesignVariableType ( )

Returns the design variable type
Created in NX8.0.1.

License requirements : None

bool NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::HasInitialValue ( )

Returns the has initial value
Created in NX8.0.1.

License requirements : None

bool NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::HasLowerBound ( )

Returns the has lower bound
Created in NX8.0.1.

License requirements : None

bool NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::HasUpperBound ( )

Returns the has upper bound
Created in NX8.0.1.

License requirements : None

double NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::InitialValue ( )

Returns the initial value
Created in NX8.0.1.

License requirements : None

double NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::LowerBound ( )

Returns the lower bound
Created in NX8.0.1.

License requirements : None

NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::MaterialTypesEnum NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::MaterialTypes ( )

Returns the material types
Created in NX8.0.1.

License requirements : None

NXString NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::NameSeed ( )

Returns the name seed
Created in NX8.0.1.

License requirements : None

NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::PhysicalTypesEnum NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::PhysicalTypes ( )

Returns the physical types
Created in NX8.0.1.

License requirements : None

void NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::SelectAllEntities ( )

This command selects all the entities.

Created in NX8.0.1.

License requirements : nx_correl_update ("FE Model Update")

void NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::SelectAllFields ( )

This command selects all the fields.

Created in NX8.0.1.

License requirements : nx_correl_update ("FE Model Update")

void NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::SelectEntity ( const NXString & entityName )

This command selects one entity.

Created in NX8.0.1.

License requirements : nx_correl_update ("FE Model Update")

Parameters

entityName NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::SelectEntity ( const char * entityName )

This command selects one entity.

Created in NX8.0.1.

License requirements : nx_correl_update ("FE Model Update")

Parameters

entityName NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::SelectField ( const NXString & field )

This command selects one field.

Created in NX8.0.1.

License requirements : nx_correl_update ("FE Model Update")

Parameters

field NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::SelectField ( const char * field )

This command selects one field.

Created in NX8.0.1.

License requirements : nx_correl_update ("FE Model Update")

Parameters

field NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::ModelUpdateDesignVariablesRapidCreateBuilder::SetCardName ( const NXString & cardName )

Sets the card name
Created in NX8.0.1.
