Represents a CAE::ModelCheck::ReverseShellElementNormalBuilder used to reverse normals for specified shell elements. More...

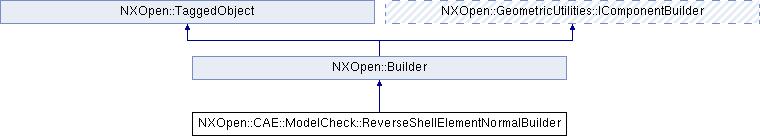

Inheritance diagram for NXOpen::CAE::ModelCheck::ReverseShellElementNormalBuilder:

Public Member Functions
void	DisplayNormals ()
	Display normals of CAE::ModelCheck::ReverseShellElementNormalBuilder::SelectionList Created in NX8.5.0.

std::vector < NXOpen::CAE::FEElement * >	ReverseNormals ()
	Reverses normals specified in CAE::ModelCheck::ReverseShellElementNormalBuilder::SelectionList and returns those elements whose normals were reversed successfully.

NXOpen::SelectTaggedObjectList *	SelectionList ()
	Returns the selected objects to be checked.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::ModelCheck::ReverseShellElementNormalBuilder used to reverse normals for specified shell elements.

You can reverse shell element normals by using either Builder::Commit or CAE::ModelCheck::ReverseShellElementNormalBuilder::ReverseNormals . The difference between these two methods is Builder::Commit reverses the normals and updates normal display, but it does not return the shell elements which were reversed successfully. CAE::ModelCheck::ReverseShellElementNormalBuilder::ReverseNormals reverses normals and returns the shell elements which were reversed successfully. Both of the methods are only available in fem context.

Created in NX8.5.0.

Member Function Documentation

void NXOpen::CAE::ModelCheck::ReverseShellElementNormalBuilder::DisplayNormals ( )

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

std::vector<NXOpen::CAE::FEElement *> NXOpen::CAE::ModelCheck::ReverseShellElementNormalBuilder::ReverseNormals ( )

Reverses normals specified in CAE::ModelCheck::ReverseShellElementNormalBuilder::SelectionList and returns those elements whose normals were reversed successfully.

This method will only reverse the normals for shell elements in the current work fem part.

Returns: Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")

NXOpen::SelectTaggedObjectList* NXOpen::CAE::ModelCheck::ReverseShellElementNormalBuilder::SelectionList ( )

Returns the selected objects to be checked.

The objects must be CAE::Mesh or CAE::FEElement
Created in NX8.5.0.

License requirements : None
