Represents a CAE::MeshControlDisplayOptionsBuilder
To create a new instance of this class, use CAE::MeshControlDisplayManager::CreateBuilder

Created in NX5.0.0. More...

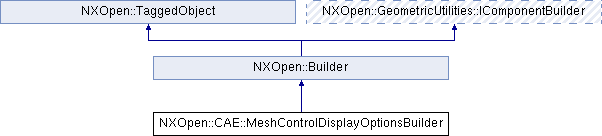

Inheritance diagram for NXOpen::CAE::MeshControlDisplayOptionsBuilder:

Public Member Functions
int	CylinderDensitySize ()
	Returns the cylinder density size Created in NX8.5.0.

int	DependentEdgeDensitySize ()
	Returns the dependent edge density size Created in NX5.0.0.

int	EdgeDensitySize ()
	Returns the edge density size Created in NX5.0.0.

int	FaceDensitySize ()
	Returns the face density size Created in NX5.0.0.

int	FilletDensitySize ()
	Returns the fillet density size Created in NX8.5.0.

int	MappedHoleSize ()
	Returns the mapped holes size Created in NX8.5.0.

int	MeshMateSize ()
	Returns the mesh mate size Created in NX5.0.0.

void	SetCylinderDensitySize (int cylinderDensitySize)
	Sets the cylinder density size Created in NX8.5.0.

void	SetDependentEdgeDensitySize (int dependentEdgeDensitySize)
	Sets the dependent edge density size Created in NX5.0.0.

void	SetEdgeDensitySize (int edgeDensitySize)
	Sets the edge density size Created in NX5.0.0.

void	SetFaceDensitySize (int faceDensitySize)
	Sets the face density size Created in NX5.0.0.

void	SetFilletDensitySize (int filletDensitySize)
	Sets the fillet density size Created in NX8.5.0.

void	SetMappedHoleSize (int mappedHoleSize)
	Sets the mapped holes size Created in NX8.5.0.

void	SetMeshMateSize (int meshMateSize)
	Sets the mesh mate size Created in NX5.0.0.

void	SetShadeSymbols (bool shadeSymbols)
	Sets the shade symbols Created in NX5.0.0.

void	SetShowThroughDisplay (bool showThroughDisplay)
	Sets the show through display Created in NX5.0.0.

void	SetTextDisplay (bool textDisplay)
	Sets the text display Created in NX5.0.0.

void	SetWeldRowSize (int weldRowSize)
	Sets the weld row density size Created in NX8.5.0.

bool	ShadeSymbols ()
	Returns the shade symbols Created in NX5.0.0.

bool	ShowThroughDisplay ()
	Returns the show through display Created in NX5.0.0.

bool	TextDisplay ()
	Returns the text display Created in NX5.0.0.

int	WeldRowSize ()
	Returns the weld row density size Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::MeshControlDisplayOptionsBuilder
To create a new instance of this class, use CAE::MeshControlDisplayManager::CreateBuilder

Created in NX5.0.0.

Member Function Documentation

int NXOpen::CAE::MeshControlDisplayOptionsBuilder::CylinderDensitySize ( )

Returns the cylinder density size
Created in NX8.5.0.

License requirements : None

int NXOpen::CAE::MeshControlDisplayOptionsBuilder::DependentEdgeDensitySize ( )

Returns the dependent edge density size
Created in NX5.0.0.

License requirements : None

int NXOpen::CAE::MeshControlDisplayOptionsBuilder::EdgeDensitySize ( )

Returns the edge density size
Created in NX5.0.0.

License requirements : None

int NXOpen::CAE::MeshControlDisplayOptionsBuilder::FaceDensitySize ( )

Returns the face density size
Created in NX5.0.0.

License requirements : None

int NXOpen::CAE::MeshControlDisplayOptionsBuilder::FilletDensitySize ( )

Returns the fillet density size
Created in NX8.5.0.

License requirements : None

int NXOpen::CAE::MeshControlDisplayOptionsBuilder::MappedHoleSize ( )

Returns the mapped holes size
Created in NX8.5.0.

License requirements : None

int NXOpen::CAE::MeshControlDisplayOptionsBuilder::MeshMateSize ( )

Returns the mesh mate size
Created in NX5.0.0.

License requirements : None

void NXOpen::CAE::MeshControlDisplayOptionsBuilder::SetCylinderDensitySize ( int cylinderDensitySize )

Sets the cylinder density size
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

cylinderDensitySize cylinderdensitysize

void NXOpen::CAE::MeshControlDisplayOptionsBuilder::SetDependentEdgeDensitySize ( int dependentEdgeDensitySize )

Sets the dependent edge density size
Created in NX5.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

dependentEdgeDensitySize dependentedgedensitysize

void NXOpen::CAE::MeshControlDisplayOptionsBuilder::SetEdgeDensitySize ( int edgeDensitySize )

Sets the edge density size
Created in NX5.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

edgeDensitySize edgedensitysize

void NXOpen::CAE::MeshControlDisplayOptionsBuilder::SetFaceDensitySize ( int faceDensitySize )

Sets the face density size
Created in NX5.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

faceDensitySize facedensitysize

void NXOpen::CAE::MeshControlDisplayOptionsBuilder::SetFilletDensitySize ( int filletDensitySize )

Sets the fillet density size
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

filletDensitySize filletdensitysize

void NXOpen::CAE::MeshControlDisplayOptionsBuilder::SetMappedHoleSize ( int mappedHoleSize )

Sets the mapped holes size
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

mappedHoleSize mappedholesize

void NXOpen::CAE::MeshControlDisplayOptionsBuilder::SetMeshMateSize ( int meshMateSize )

Sets the mesh mate size
Created in NX5.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

meshMateSize meshmatesize

void NXOpen::CAE::MeshControlDisplayOptionsBuilder::SetShadeSymbols ( bool shadeSymbols )

Sets the shade symbols
Created in NX5.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

shadeSymbols shadesymbols

void NXOpen::CAE::MeshControlDisplayOptionsBuilder::SetShowThroughDisplay ( bool showThroughDisplay )

Sets the show through display
Created in NX5.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

showThroughDisplay showthroughdisplay

void NXOpen::CAE::MeshControlDisplayOptionsBuilder::SetTextDisplay ( bool textDisplay )

Sets the text display
Created in NX5.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

textDisplay textdisplay

void NXOpen::CAE::MeshControlDisplayOptionsBuilder::SetWeldRowSize ( int weldRowSize )

Sets the weld row density size
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

weldRowSize weldrowsize

bool NXOpen::CAE::MeshControlDisplayOptionsBuilder::ShadeSymbols ( )

Returns the shade symbols
Created in NX5.0.0.

License requirements : None

bool NXOpen::CAE::MeshControlDisplayOptionsBuilder::ShowThroughDisplay ( )

Returns the show through display
Created in NX5.0.0.

License requirements : None

bool NXOpen::CAE::MeshControlDisplayOptionsBuilder::TextDisplay ( )

Returns the text display
Created in NX5.0.0.

License requirements : None

int NXOpen::CAE::MeshControlDisplayOptionsBuilder::WeldRowSize ( )

Returns the weld row density size
Created in NX8.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

The documentation for this class was generated from the following file:

CAE_MeshControlDisplayOptionsBuilder.hxx
