Represents 0D Mesh Used to create a CAE::Mesh0d
To create a new instance of this class, use CAE::MeshManager::CreateMesh0dBuilder

Created in NX6.0.0. More...

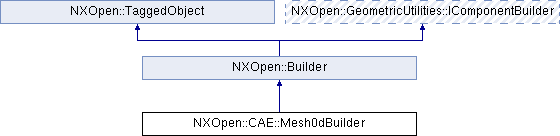

Inheritance diagram for NXOpen::CAE::Mesh0dBuilder:

Public Member Functions
std::vector< NXOpen::CAE::Mesh * >	CommitMesh ()
	Commits the creation of the CAE::Mesh0d.

NXOpen::CAE::ElementTypeBuilder *	ElementType ()
	Returns the element type builder.

NXOpen::CAE::PropertyTable *	PropertyTable ()
	Returns the property table associated with the mesh.

NXOpen::SelectDisplayableObjectList *	SelectionList ()
	Returns the selection objects Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents 0D Mesh Used to create a CAE::Mesh0d
To create a new instance of this class, use CAE::MeshManager::CreateMesh0dBuilder

Created in NX6.0.0.

Member Function Documentation

std::vector<NXOpen::CAE::Mesh *> NXOpen::CAE::Mesh0dBuilder::CommitMesh ( )

Commits the creation of the CAE::Mesh0d.

     @return

Created in NX6.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

NXOpen::CAE::ElementTypeBuilder* NXOpen::CAE::Mesh0dBuilder::ElementType ( )

Returns the element type builder.

Created in NX6.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

NXOpen::CAE::PropertyTable* NXOpen::CAE::Mesh0dBuilder::PropertyTable ( )

Returns the property table associated with the mesh.

       The property table contains the parameters needed for the generation
       of the mesh.

Created in NX6.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

NXOpen::SelectDisplayableObjectList* NXOpen::CAE::Mesh0dBuilder::SelectionList ( )

Returns the selection objects
Created in NX6.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")
