Represents a CAE::LaminateSelectEntitiesBuilder
To create a new instance of this class, use CAE::LaminateGlobalLayupMgr::CreateLaminateSelectEntitiesBuilder
Created in NX7.5.2.
More...
Public Member Functions | |
| void | AddEntities (const std::vector< NXOpen::CAE::SetObject > &objects) |
| Add entities to the selection objects Created in NX7.5.2. | |
| void | Clear () |
| Clears the selection list Created in NX7.5.2. | |
| NXOpen::SelectTaggedObjectList * | SelectionList () |
| Returns the selection list Created in NX7.5.2. | |

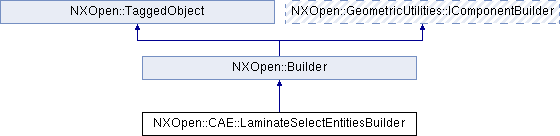

 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a CAE::LaminateSelectEntitiesBuilder
To create a new instance of this class, use CAE::LaminateGlobalLayupMgr::CreateLaminateSelectEntitiesBuilder
Created in NX7.5.2.
Member Function Documentation
| void NXOpen::CAE::LaminateSelectEntitiesBuilder::AddEntities | ( | const std::vector< NXOpen::CAE::SetObject > & | objects | ) |
Add entities to the selection objects
Created in NX7.5.2.
License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")
- Parameters
-
objects Geometric faces, element faces, geometric edges, element edges
| void NXOpen::CAE::LaminateSelectEntitiesBuilder::Clear | ( | ) |
Clears the selection list
Created in NX7.5.2.
License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")
| NXOpen::SelectTaggedObjectList* NXOpen::CAE::LaminateSelectEntitiesBuilder::SelectionList | ( | ) |
Returns the selection list
Created in NX7.5.2.
License requirements : nx_lam_comp_adv ("Laminate Composites Advanced")
The documentation for this class was generated from the following file:
- CAE_LaminateSelectEntitiesBuilder.hxx
