Represents a CAE::LaminatePlyFilterBuilder
There is no kf creator. More...

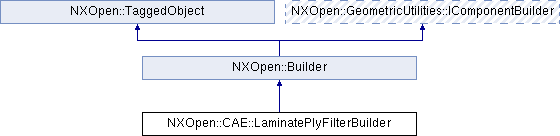

Inheritance diagram for NXOpen::CAE::LaminatePlyFilterBuilder:

Public Member Functions
void	GetSelectedPlyNames (std::vector< NXString > &selectedPlyNames)
	Returns the selected plies Created in NX8.0.0.

bool	SelectAllPlies ()
	Returns the select all plies option Created in NX8.0.0.

void	SetSelectAllPlies (bool selectAllPlies)
	Sets the select all plies option Created in NX8.0.0.

void	SetSelectedPlyNames (const std::vector< NXString > &selectedPlies)
	Sets the selected plies Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::LaminatePlyFilterBuilder
There is no kf creator.

Created in NX8.0.0.

Member Function Documentation

void NXOpen::CAE::LaminatePlyFilterBuilder::GetSelectedPlyNames ( std::vector< NXString > & selectedPlyNames )

Returns the selected plies
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

selectedPlyNames selectedplynames

bool NXOpen::CAE::LaminatePlyFilterBuilder::SelectAllPlies ( )

Returns the select all plies option
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

void NXOpen::CAE::LaminatePlyFilterBuilder::SetSelectAllPlies ( bool selectAllPlies )

Sets the select all plies option
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

selectAllPlies selectallplies

void NXOpen::CAE::LaminatePlyFilterBuilder::SetSelectedPlyNames ( const std::vector< NXString > & selectedPlies )

Sets the selected plies
Created in NX8.0.0.

License requirements : nx_lam_composites ("Laminate Composites")

Parameters

selectedPlies selectedplies

The documentation for this class was generated from the following file:
