This is a manager to the CAE::CorrelSolution class. More...

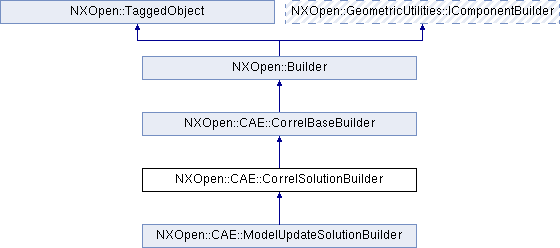

Inheritance diagram for NXOpen::CAE::CorrelSolutionBuilder:

Public Types
enum	EnumDampingFrftype { EnumDampingFrftypeFromWorkModel, EnumDampingFrftypeSpecifyDamping }
	The damping type enum. More...

Public Member Functions
NXOpen::CAE::CorrelSolutionBuilder::EnumDampingFrftype	FrfDampingSource ()
	Returns the option controlling which damping to consider when synthesizing FRF data from analysis results Created in NX6.0.0.

double	HighFrequencyCutoff ()
	Returns the high-frequency cutoff for work modes Created in NX6.0.1.

bool	HighFrequencyFilteringMode ()
	Returns the high-frequency filtering option for work modes Created in NX6.0.1.

double	LowFrequencyCutoff ()
	Returns the low-frequency cutoff for work modes Created in NX6.0.2.

bool	LowFrequencyFilteringMode ()
	Returns the low-frequency filtering option for work modes Created in NX6.0.2.

int	NodeMapSizeLimit ()
	Returns the node map size limit Created in NX7.5.2.

bool	NodeMapSizeLimitActive ()
	Returns the high-frequency filtering option for work modes Created in NX7.5.2.

double	NodeMatchingDistance ()
	Returns the node-matching distance Created in NX6.0.0.

NXOpen::CAE::SimSolution *	ReferenceSolution ()
	Returns the reference (test) solution of correlation Created in NX6.0.0.

void	SetFrfDampingSource (NXOpen::CAE::CorrelSolutionBuilder::EnumDampingFrftype frfDampingSource)
	Sets the option controlling which damping to consider when synthesizing FRF data from analysis results Created in NX6.0.0.

void	SetHighFrequencyCutoff (double cutoffFrequency)
	Sets the high-frequency cutoff for work modes Created in NX6.0.1.

void	SetHighFrequencyFilteringMode (bool highFrequencyFilteringMode)
	Sets the high-frequency filtering option for work modes Created in NX6.0.1.

void	SetLowFrequencyCutoff (double cutoffFrequency)
	Sets the low-frequency cutoff for work modes Created in NX6.0.2.

void	SetLowFrequencyFilteringMode (bool lowFrequencyFilteringMode)
	Sets the low-frequency filtering option for work modes Created in NX6.0.2.

void	SetNodeMapSizeLimit (int limit)
	Sets the node map size limit Created in NX7.5.2.

void	SetNodeMapSizeLimitActive (bool active)
	Sets the high-frequency filtering option for work modes Created in NX7.5.2.

void	SetNodeMatchingDistance (double distance)
	Sets the node-matching distance Created in NX6.0.0.

void	SetReferenceSolution (NXOpen::CAE::SimSolution *referenceSolution)
	Sets the reference (test) solution of correlation Created in NX6.0.0.

void	SetTitle (const NXString &title)
	Sets the correlation metasolution name Created in NX6.0.0.

void	SetTitle (const char *title)
	Sets the correlation metasolution name Created in NX6.0.0.

void	SetWorkSolution (NXOpen::CAE::SimSolution *workSolution)
	Sets the work (analysis) solution of correlation Created in NX6.0.0.

NXString	Title ()
	Returns the correlation metasolution name Created in NX6.0.0.

NXOpen::CAE::SimSolution *	WorkSolution ()
	Returns the work (analysis) solution of correlation Created in NX6.0.0.

Detailed Description

This is a manager to the CAE::CorrelSolution class.

Object of type CAE::CorrelSolution can be created and edited only through this class
To create a new instance of this class, use CAE::CorrelSolutionCollection::CreateSolutionBuilder

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::CorrelSolutionBuilder::EnumDampingFrftype

The damping type enum.

Enumerator:

EnumDampingFrftypeFromWorkModel	from work model
EnumDampingFrftypeSpecifyDamping	from user input

Member Function Documentation

NXOpen::CAE::CorrelSolutionBuilder::EnumDampingFrftype NXOpen::CAE::CorrelSolutionBuilder::FrfDampingSource ( )

Returns the option controlling which damping to consider when synthesizing FRF data from analysis results
Created in NX6.0.0.

License requirements : None

double NXOpen::CAE::CorrelSolutionBuilder::HighFrequencyCutoff ( )

Returns the high-frequency cutoff for work modes
Created in NX6.0.1.

License requirements : None

bool NXOpen::CAE::CorrelSolutionBuilder::HighFrequencyFilteringMode ( )

Returns the high-frequency filtering option for work modes
Created in NX6.0.1.

License requirements : None

double NXOpen::CAE::CorrelSolutionBuilder::LowFrequencyCutoff ( )

Returns the low-frequency cutoff for work modes
Created in NX6.0.2.

License requirements : None

bool NXOpen::CAE::CorrelSolutionBuilder::LowFrequencyFilteringMode ( )

Returns the low-frequency filtering option for work modes
Created in NX6.0.2.

License requirements : None

int NXOpen::CAE::CorrelSolutionBuilder::NodeMapSizeLimit ( )

Returns the node map size limit
Created in NX7.5.2.

License requirements : None

bool NXOpen::CAE::CorrelSolutionBuilder::NodeMapSizeLimitActive ( )

Returns the high-frequency filtering option for work modes
Created in NX7.5.2.

License requirements : None

double NXOpen::CAE::CorrelSolutionBuilder::NodeMatchingDistance ( )

Returns the node-matching distance
Created in NX6.0.0.

License requirements : None

NXOpen::CAE::SimSolution* NXOpen::CAE::CorrelSolutionBuilder::ReferenceSolution ( )

Returns the reference (test) solution of correlation
Created in NX6.0.0.

License requirements : None

void NXOpen::CAE::CorrelSolutionBuilder::SetFrfDampingSource ( NXOpen::CAE::CorrelSolutionBuilder::EnumDampingFrftype frfDampingSource )

Sets the option controlling which damping to consider when synthesizing FRF data from analysis results
Created in NX6.0.0.
