Builds a CAE::AutoPairs object which represets a recipe for generating face pairs from a selected set of faces or solids in the model whose distance is less than a specified tolerance. More...
Public Member Functions | |
| NXOpen::CAE::SelectCAEFaceList * | GeometrySelection () |
| Returns the geometry selection Created in NX5.0.0. | |
| void | PreviewButton () |
| Preview the list of face-pairs Created in NX5.0.0. | |
| NXOpen::CAE::PropertyTable * | PropertyTable () |
| Returns the AutoPair's property table Created in NX5.0.0. | |

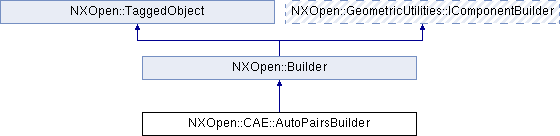

 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Builds a CAE::AutoPairs object which represets a recipe for generating face pairs from a selected set of faces or solids in the model whose distance is less than a specified tolerance.
<br> To create a new instance of this class, use @link CAE::SimSimulation::CreateAutoPairsBuilder CAE::SimSimulation::CreateAutoPairsBuilder @endlink <br>
Created in NX5.0.0.
Member Function Documentation
| NXOpen::CAE::SelectCAEFaceList* NXOpen::CAE::AutoPairsBuilder::GeometrySelection | ( | ) |
Returns the geometry selection
Created in NX5.0.0.
License requirements : None
| void NXOpen::CAE::AutoPairsBuilder::PreviewButton | ( | ) |
Preview the list of face-pairs
Created in NX5.0.0.
License requirements : nx_masterfem ("Finite Element Modeling") OR nx_design_sim ("NX Design Simulation")
| NXOpen::CAE::PropertyTable* NXOpen::CAE::AutoPairsBuilder::PropertyTable | ( | ) |
Returns the AutoPair's property table
Created in NX5.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- CAE_AutoPairsBuilder.hxx
