Builds one or more CAE::SimSimulationObject object(s). More...

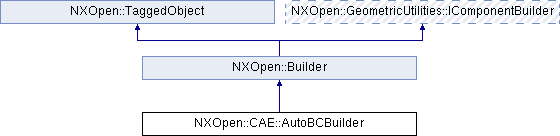

Inheritance diagram for NXOpen::CAE::AutoBCBuilder:

Public Member Functions
NXOpen::CAE::AutoPairs *	Autopairs ()
	Returns the AutoBC's CAE::AutoPairs Created in NX5.0.0.

NXString	BcBaseName ()
	Returns the base name of CAE::SimBC objects created Created in NX8.0.0.

NXOpen::CAE::SimLbcFolder *	DestinationFolder ()
	Returns the destination folder of CAE::SimBC object Created in NX9.0.0.

int	Label ()
	Returns the initial label of CAE::CaeRegion and CAE::SimBC objects Created in NX8.0.0.

NXOpen::CAE::PropertyTable *	PropertyTable ()
	Returns the AutoBC's CAE::PropertyTable Created in NX5.0.0.

NXOpen::CAE::SimAutoBcRecipe *	Recipe ()
	Returns the AutoBC's CAE::SimAutoBcRecipe Created in NX5.0.0.

bool	RetainRecipeFlag ()
	Returns the retain recipe flag, which signifies whether or not the recipe will be retained after the generation of the BCs Created in NX5.0.0.

void	SetAutopairs (NXOpen::CAE::AutoPairs *recipe)
	Sets the AutoBC's CAE::AutoPairs Created in NX5.0.0.

void	SetBcBaseName (const NXString &name)
	Sets the base name of CAE::SimBC objects created Created in NX8.0.0.

void	SetBcBaseName (const char *name)
	Sets the base name of CAE::SimBC objects created Created in NX8.0.0.

void	SetDestinationFolder (NXOpen::CAE::SimLbcFolder *folder)
	Sets the destination folder of CAE::SimBC object Created in NX9.0.0.

void	SetLabel (int label)
	Sets the initial label of CAE::CaeRegion and CAE::SimBC objects Created in NX8.0.0.

void	SetRetainRecipeFlag (bool retainRecipe)
	Sets the retain recipe flag, which signifies whether or not the recipe will be retained after the generation of the BCs Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Builds one or more CAE::SimSimulationObject object(s).

These simulation objects use two target face sets like the Surf to Surf Contact
To create a new instance of this class, use CAE::SimSimulation::CreateAutoBcBuilder

Created in NX5.0.0.

Member Function Documentation

NXOpen::CAE::AutoPairs* NXOpen::CAE::AutoBCBuilder::Autopairs ( )

Returns the AutoBC's CAE::AutoPairs
Created in NX5.0.0.

License requirements : None

NXString NXOpen::CAE::AutoBCBuilder::BcBaseName ( )

Returns the base name of CAE::SimBC objects created
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::SimLbcFolder* NXOpen::CAE::AutoBCBuilder::DestinationFolder ( )

Returns the destination folder of CAE::SimBC object
Created in NX9.0.0.

License requirements : None

int NXOpen::CAE::AutoBCBuilder::Label ( )

Returns the initial label of CAE::CaeRegion and CAE::SimBC objects
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::PropertyTable* NXOpen::CAE::AutoBCBuilder::PropertyTable ( )

Returns the AutoBC's CAE::PropertyTable
Created in NX5.0.0.

License requirements : None

NXOpen::CAE::SimAutoBcRecipe* NXOpen::CAE::AutoBCBuilder::Recipe ( )

Returns the AutoBC's CAE::SimAutoBcRecipe
Created in NX5.0.0.

License requirements : None

bool NXOpen::CAE::AutoBCBuilder::RetainRecipeFlag ( )

Returns the retain recipe flag, which signifies whether or not the recipe will be retained after the generation of the BCs
Created in NX5.0.0.

License requirements : None

void NXOpen::CAE::AutoBCBuilder::SetAutopairs ( NXOpen::CAE::AutoPairs * recipe )

Sets the AutoBC's CAE::AutoPairs
Created in NX5.0.0.

License requirements : None

Parameters

recipe auto pairs object

void NXOpen::CAE::AutoBCBuilder::SetBcBaseName ( const NXString & name )

Sets the base name of CAE::SimBC objects created
Created in NX8.0.0.

License requirements : None

Parameters

name	the base name, if NULL or blank, a base name will be generated

void NXOpen::CAE::AutoBCBuilder::SetBcBaseName ( const char * name )

Sets the base name of CAE::SimBC objects created
Created in NX8.0.0.

License requirements : None

Parameters

name	the base name, if NULL or blank, a base name will be generated

void NXOpen::CAE::AutoBCBuilder::SetDestinationFolder ( NXOpen::CAE::SimLbcFolder * folder )

Sets the destination folder of CAE::SimBC object
Created in NX9.0.0.

License requirements : None

Parameters

folder destination folder

void NXOpen::CAE::AutoBCBuilder::SetLabel ( int label )

Sets the initial label of CAE::CaeRegion and CAE::SimBC objects
Created in NX8.0.0.

License requirements : None

Parameters

label the initial label, if <=0 unique labels will be generated for you

void NXOpen::CAE::AutoBCBuilder::SetRetainRecipeFlag ( bool retainRecipe )

Sets the retain recipe flag, which signifies whether or not the recipe will be retained after the generation of the BCs
Created in NX5.0.0.

License requirements : None

Parameters

retainRecipe flag for retaining recipe or not

The documentation for this class was generated from the following file:

CAE_AutoBCBuilder.hxx
