Represents a @link Assemblies::MakeUniquePartBuilder Assemblies::MakeUniquePartBuilder@endlink builder <br> To create a new instance of this class, use @link Assemblies::AssemblyManager::CreateMakeUniquePartBuilder Assemblies::AssemblyManager::CreateMakeUniquePartBuilder @endlink <br>
Default values. More...

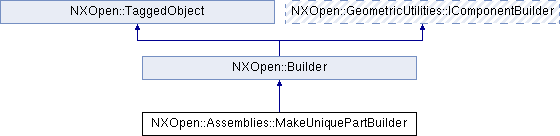

Inheritance diagram for NXOpen::Assemblies::MakeUniquePartBuilder:
Public Types | |
| enum | Option { OptionCopyAssemblyOnly } |
| Represents possible copy assembly options for unique part. More... | |
Public Member Functions | |
| NXOpen::Assemblies::MakeUniquePartBuilder::Option | CopyChoices () |
| Returns the copy choices returned. | |
| NXOpen::SelectDisplayableObjectList * | SelectedComponents () |
| Returns the selected components to be made unique are returned. | |
| void | SetCopyChoices (NXOpen::Assemblies::MakeUniquePartBuilder::Option copyChoices) |
| Sets the copy choices returned. | |
 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a @link Assemblies::MakeUniquePartBuilder Assemblies::MakeUniquePartBuilder@endlink builder <br> To create a new instance of this class, use @link Assemblies::AssemblyManager::CreateMakeUniquePartBuilder Assemblies::AssemblyManager::CreateMakeUniquePartBuilder @endlink <br>
Default values.
| Property | Value |
|---|---|
|
CopyChoices |
CopyAssemblyOnly |
Created in NX8.0.0.
Member Enumeration Documentation
Member Function Documentation
| NXOpen::Assemblies::MakeUniquePartBuilder::Option NXOpen::Assemblies::MakeUniquePartBuilder::CopyChoices | ( | ) |
Returns the copy choices returned.
Created in NX8.0.0.
License requirements : assemblies ("ASSEMBLIES MODULE")
| NXOpen::SelectDisplayableObjectList* NXOpen::Assemblies::MakeUniquePartBuilder::SelectedComponents | ( | ) |
Returns the selected components to be made unique are returned.
Created in NX8.0.0.
License requirements : assemblies ("ASSEMBLIES MODULE")
| void NXOpen::Assemblies::MakeUniquePartBuilder::SetCopyChoices | ( | NXOpen::Assemblies::MakeUniquePartBuilder::Option | copyChoices | ) |
Sets the copy choices returned.
Created in NX8.0.0.
License requirements : assemblies ("ASSEMBLIES MODULE")
- Parameters
-
copyChoices copychoices
The documentation for this class was generated from the following file:
- Assemblies_MakeUniquePartBuilder.hxx
