Represents a @link Assemblies::CreateNewComponentBuilder Assemblies::CreateNewComponentBuilder@endlink  builder class  <br> To create a new instance of this class, use @link Assemblies::AssemblyManager::CreateNewComponentBuilder  Assemblies::AssemblyManager::CreateNewComponentBuilder @endlink  <br>

Default values. More...

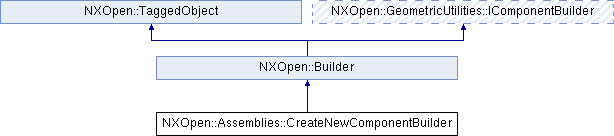

Inheritance diagram for NXOpen::Assemblies::CreateNewComponentBuilder:

Public Types
enum	ComponentCamType { ComponentCamTypeTarget, ComponentCamTypeResource, ComponentCamTypeWorkpiece }
	Set the origin type. More...

enum	ComponentLayerOptionType { ComponentLayerOptionTypeOriginal, ComponentLayerOptionTypeWork, ComponentLayerOptionTypeAsSpecified }
	Set the layer option type. More...

enum	ComponentOriginType { ComponentOriginTypeWcs, ComponentOriginTypeAbsolute }
	Set the cam component type. More...

enum	ComponentReferenceSetType { ComponentReferenceSetTypeModel, ComponentReferenceSetTypeEntirePartOnly, ComponentReferenceSetTypeOther }
	Set the reference set. More...

Public Member Functions
NXOpen::Assemblies::CreateNewComponentBuilder::ComponentCamType	ComponentCam ()
	Returns the cam component cam type Created in NX6.0.0.

NXOpen::Assemblies::CreateNewComponentBuilder::ComponentOriginType	ComponentOrigin ()
	Returns the component origin Created in NX6.0.0.

bool	DefiningObjectsAdded ()
	Returns the defining objects added toggle Created in NX6.0.0.

int	LayerNumber ()
	Returns the layer number Created in NX6.0.0.

NXOpen::Assemblies::CreateNewComponentBuilder::ComponentLayerOptionType	LayerOption ()
	Returns the layer option Created in NX6.0.0.

NXString	NewComponentName ()
	Returns the new component name Created in NX6.0.0.

NXOpen::FileNew *	NewFile ()
	Returns the file new object is get and set Created in NX6.0.0.

NXOpen::SelectDisplayableObjectList *	ObjectForNewComponent ()
	Returns the objects for select block Created in NX6.0.0.

bool	OriginalObjectsDeleted ()
	Returns the original objects deleted Created in NX6.0.0.

NXOpen::Assemblies::CreateNewComponentBuilder::ComponentReferenceSetType	ReferenceSet ()
	Returns the reference set Created in NX6.0.0.

NXString	ReferenceSetName ()
	Returns the reference set name.

void	SetComponentCam (NXOpen::Assemblies::CreateNewComponentBuilder::ComponentCamType componentCam)
	Sets the cam component cam type Created in NX6.0.0.

void	SetComponentOrigin (NXOpen::Assemblies::CreateNewComponentBuilder::ComponentOriginType componentOrigin)
	Sets the component origin Created in NX6.0.0.

void	SetDefiningObjectsAdded (bool definingObjectsAdded)
	Sets the defining objects added toggle Created in NX6.0.0.

void	SetLayerNumber (int layerNumber)
	Sets the layer number Created in NX6.0.0.

void	SetLayerOption (NXOpen::Assemblies::CreateNewComponentBuilder::ComponentLayerOptionType layerOption)
	Sets the layer option Created in NX6.0.0.

void	SetNewComponentName (const NXString &newComponentName)
	Sets the new component name Created in NX6.0.0.

void	SetNewComponentName (const char *newComponentName)
	Sets the new component name Created in NX6.0.0.

void	SetNewFile (NXOpen::FileNew *fileNew)
	Sets the file new object is get and set Created in NX6.0.0.

void	SetOriginalObjectsDeleted (bool originalObjectsDeleted)
	Sets the original objects deleted Created in NX6.0.0.

void	SetReferenceSet (NXOpen::Assemblies::CreateNewComponentBuilder::ComponentReferenceSetType referenceSet)
	Sets the reference set Created in NX6.0.0.

void	SetReferenceSetName (const NXString &referenceSetName)
	Sets the reference set name.

void	SetReferenceSetName (const char *referenceSetName)
	Sets the reference set name.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Assemblies::CreateNewComponentBuilder Assemblies::CreateNewComponentBuilder@endlink  builder class  <br> To create a new instance of this class, use @link Assemblies::AssemblyManager::CreateNewComponentBuilder  Assemblies::AssemblyManager::CreateNewComponentBuilder @endlink  <br>

Default values.

Property

Value

ComponentCam

Target

ComponentOrigin

Wcs

DefiningObjectsAdded

1

LayerNumber

1

LayerOption

Original

OriginalObjectsDeleted

1

ReferenceSet

Model

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Assemblies::CreateNewComponentBuilder::ComponentCamType

Set the origin type.

Enumerator:

ComponentCamTypeTarget	Set the origin type to target.
ComponentCamTypeResource	Set the component type to resource.
ComponentCamTypeWorkpiece	Set the component type to workpiece.

enum NXOpen::Assemblies::CreateNewComponentBuilder::ComponentLayerOptionType

Set the layer option type.

Enumerator:

ComponentLayerOptionTypeOriginal	Set the layer option type to original.
ComponentLayerOptionTypeWork	Set the layer option type to work.
ComponentLayerOptionTypeAsSpecified	Set the layer option type to as specified.

enum NXOpen::Assemblies::CreateNewComponentBuilder::ComponentOriginType

Set the cam component type.

Enumerator:

ComponentOriginTypeWcs	Set the origin type to wcs.
ComponentOriginTypeAbsolute	Set the origin type to absolute.

enum NXOpen::Assemblies::CreateNewComponentBuilder::ComponentReferenceSetType

Set the reference set.

Enumerator:

ComponentReferenceSetTypeModel	Set the reference set to model.
ComponentReferenceSetTypeEntirePartOnly	Set the reference set to entire part only.
ComponentReferenceSetTypeOther	Set the reference to other.

Member Function Documentation

NXOpen::Assemblies::CreateNewComponentBuilder::ComponentCamType NXOpen::Assemblies::CreateNewComponentBuilder::ComponentCam ( )

Returns the cam component cam type
Created in NX6.0.0.

License requirements : None

NXOpen::Assemblies::CreateNewComponentBuilder::ComponentOriginType NXOpen::Assemblies::CreateNewComponentBuilder::ComponentOrigin ( )

Returns the component origin
Created in NX6.0.0.

License requirements : None

bool NXOpen::Assemblies::CreateNewComponentBuilder::DefiningObjectsAdded ( )

Returns the defining objects added toggle
Created in NX6.0.0.

License requirements : None

int NXOpen::Assemblies::CreateNewComponentBuilder::LayerNumber ( )

Returns the layer number
Created in NX6.0.0.

License requirements : None

NXOpen::Assemblies::CreateNewComponentBuilder::ComponentLayerOptionType NXOpen::Assemblies::CreateNewComponentBuilder::LayerOption ( )

Returns the layer option
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Assemblies::CreateNewComponentBuilder::NewComponentName ( )

Returns the new component name
Created in NX6.0.0.

License requirements : None

NXOpen::FileNew* NXOpen::Assemblies::CreateNewComponentBuilder::NewFile ( )

Returns the file new object is get and set
Created in NX6.0.0.

License requirements : None

NXOpen::SelectDisplayableObjectList* NXOpen::Assemblies::CreateNewComponentBuilder::ObjectForNewComponent ( )

Returns the objects for select block
Created in NX6.0.0.

License requirements : None

bool NXOpen::Assemblies::CreateNewComponentBuilder::OriginalObjectsDeleted ( )

Returns the original objects deleted
Created in NX6.0.0.

License requirements : None

NXOpen::Assemblies::CreateNewComponentBuilder::ComponentReferenceSetType NXOpen::Assemblies::CreateNewComponentBuilder::ReferenceSet ( )

Returns the reference set
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Assemblies::CreateNewComponentBuilder::ReferenceSetName ( )

Returns the reference set name.

This should be used when reference set type is set to other
Created in NX6.0.0.

License requirements : None

void NXOpen::Assemblies::CreateNewComponentBuilder::SetComponentCam ( NXOpen::Assemblies::CreateNewComponentBuilder::ComponentCamType componentCam )

Sets the cam component cam type
Created in NX6.0.0.

License requirements : None

Parameters

componentCam componentcam

void NXOpen::Assemblies::CreateNewComponentBuilder::SetComponentOrigin ( NXOpen::Assemblies::CreateNewComponentBuilder::ComponentOriginType componentOrigin )

Sets the component origin
Created in NX6.0.0.
