NXOpen::Assemblies::AttributeSearchTermBuilder Class Reference

An AttributeSearchTermBuilder is used to create or edit an Assemblies::AttributeSearchTerm . More...

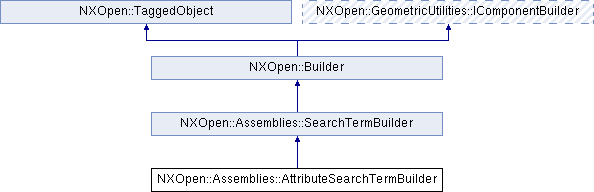

Inheritance diagram for NXOpen::Assemblies::AttributeSearchTermBuilder:

Public Member Functions
void	GetCriteria (std::vector< NXString > &titles, std::vector< NXString > &values)
	Get the entry titles and values that are used to populate the saved query.
NXString	QueryName ()
	Returns the name of the saved query upon which this search term is based.
NXOpen::Assemblies::SearchTerm::SearchTermLogicType	SearchTermLogic ()
	Returns the search term logic.
void	SetCriteria (std::vector< NXString > &titles, std::vector< NXString > &values)
	Set the entry titles and values that are used to populate the saved query.
void	SetQueryName (const NXString &queryName)
	Sets the name of the saved query upon which this search term is based.
void	SetQueryName (const char *queryName)
	Sets the name of the saved query upon which this search term is based.
void	SetSearchTermLogic (NXOpen::Assemblies::SearchTerm::SearchTermLogicType searchTermLogic)
	Sets the search term logic.

Detailed Description

An AttributeSearchTermBuilder is used to create or edit an Assemblies::AttributeSearchTerm .

<br> To create a new instance of this class, use @link Assemblies::SubsetCollection::CreateAttributeSearchTermBuilder  Assemblies::SubsetCollection::CreateAttributeSearchTermBuilder @endlink  <br>

Created in NX8.5.0.

Member Function Documentation

void NXOpen::Assemblies::AttributeSearchTermBuilder::GetCriteria	(	std::vector< NXString > &	titles,
		std::vector< NXString > &	values
	)

Get the entry titles and values that are used to populate the saved query.

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

Parameters

titles	search criteria titles
values	search criteria values

NXString NXOpen::Assemblies::AttributeSearchTermBuilder::QueryName

(

)

Returns the name of the saved query upon which this search term is based.

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

NXOpen::Assemblies::SearchTerm::SearchTermLogicType NXOpen::Assemblies::AttributeSearchTermBuilder::SearchTermLogic

(

)

Returns the search term logic.

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

void NXOpen::Assemblies::AttributeSearchTermBuilder::SetCriteria	(	std::vector< NXString > &	titles,
		std::vector< NXString > &	values
	)

Set the entry titles and values that are used to populate the saved query.

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

Parameters

titles	search criteria titles
values	search criteria values

void NXOpen::Assemblies::AttributeSearchTermBuilder::SetQueryName

(

const NXString &

queryName

)

Sets the name of the saved query upon which this search term is based.

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

Parameters

queryName

queryname

void NXOpen::Assemblies::AttributeSearchTermBuilder::SetQueryName

(

const char *

queryName

)

Sets the name of the saved query upon which this search term is based.

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

Parameters

queryName

queryname

void NXOpen::Assemblies::AttributeSearchTermBuilder::SetSearchTermLogic

(

NXOpen::Assemblies::SearchTerm::SearchTermLogicType

searchTermLogic

)

Sets the search term logic.

Created in NX8.5.0.

License requirements : nx_4gd_integration ("4th Generation Design")

Parameters

searchTermLogic

searchtermlogic

---

The documentation for this class was generated from the following file:

• Assemblies_AttributeSearchTermBuilder.hxx
