NXOpen::Assemblies::AssembliesParameterPropertiesBuilder Class Reference

Represents an Assemblies::AssembliesParameterPropertiesBuilder to be used for changing the name or modifying the positioning mixture status of a component. More...

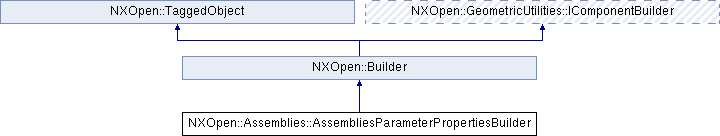

Inheritance diagram for NXOpen::Assemblies::AssembliesParameterPropertiesBuilder:

Public Types
enum	ArrangementOptions { ArrangementOptionsIndividuallyPositioned, ArrangementOptionsSamePositionInAll, ArrangementOptionsMixed }
	The positioning mixture status options. More...

Public Member Functions
NXOpen::Assemblies::AssembliesParameterPropertiesBuilder::ArrangementOptions	Arrangements ()
	Returns the arrangements.
NXOpen::Assemblies::SelectComponentList *	SelectedObjects ()
	Returns the selected object(s) list.
void	SetArrangements (NXOpen::Assemblies::AssembliesParameterPropertiesBuilder::ArrangementOptions arrangements)
	Sets the arrangements.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents an Assemblies::AssembliesParameterPropertiesBuilder to be used for changing the name or modifying the positioning mixture status of a component.

 <br> To create a new instance of this class, use @link PropertiesManager::CreateAssembliesParameterPropertiesBuilder  PropertiesManager::CreateAssembliesParameterPropertiesBuilder @endlink  <br>

Default values.

Property	Value
Arrangements	IndividuallyPositioned

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Assemblies::AssembliesParameterPropertiesBuilder::ArrangementOptions

The positioning mixture status options.

Enumerator:

ArrangementOptionsIndividuallyPositioned	All components are varied.
ArrangementOptionsSamePositionInAll	All components are unvaried.
ArrangementOptionsMixed	All components are neither varied nor unvaried.

Member Function Documentation

NXOpen::Assemblies::AssembliesParameterPropertiesBuilder::ArrangementOptions NXOpen::Assemblies::AssembliesParameterPropertiesBuilder::Arrangements

(

)

Returns the arrangements.

The positioning mixture status for the selected components. No action will take place if Mixed is set as the arrangement option.
Created in NX8.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

NXOpen::Assemblies::SelectComponentList* NXOpen::Assemblies::AssembliesParameterPropertiesBuilder::SelectedObjects

(

)

Returns the selected object(s) list.

This is the active list of components that will be modified by any parameter changes.
Created in NX8.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

void NXOpen::Assemblies::AssembliesParameterPropertiesBuilder::SetArrangements

(

NXOpen::Assemblies::AssembliesParameterPropertiesBuilder::ArrangementOptions

arrangements

)

Sets the arrangements.

The positioning mixture status for the selected components. No action will take place if Mixed is set as the arrangement option.
Created in NX8.0.0.

License requirements : assemblies ("ASSEMBLIES MODULE")

Parameters

arrangements

arrangements

---

The documentation for this class was generated from the following file:

• Assemblies_AssembliesParameterPropertiesBuilder.hxx
