Represents a Annotations::SurfaceFinish builder
To create a new instance of this class, use Annotations::PmiAttributeCollection::CreateSurfaceFinishBuilder

Created in NX6.0.0. More...

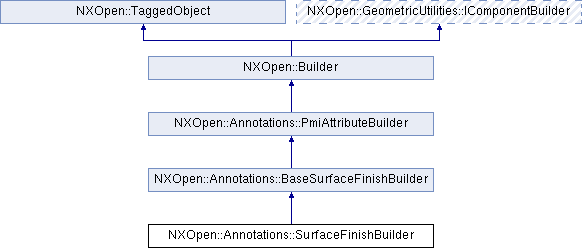

Inheritance diagram for NXOpen::Annotations::SurfaceFinishBuilder:

Public Types
enum	FinishType { FinishTypeBasic, FinishTypeModifier, FinishTypeModifierAllAround, FinishTypeMaterialRemovalRequired, FinishTypeModifierMaterialRemovalRequired, FinishTypeModifierMaterialRemovalRequiredAllAround, FinishTypeMaterialRemovalProhibited, FinishTypeModifierMaterialRemovalProhibited, FinishTypeModifierMaterialRemovalProhibitedAllAround }
	the valid types for pmi finish type More...

enum	StandardType { StandardTypeAnsi, StandardTypeIso, StandardTypeJis, StandardTypeDin, StandardTypeIso2002, StandardTypeDin2002, StandardTypeGb, StandardTypeEskd }
	the valid types for pmi surface finish standards More...

Public Types inherited from NXOpen::Annotations::BaseSurfaceFinishBuilder
enum	ParanthesesType { ParanthesesTypeNone, ParanthesesTypeLeft, ParanthesesTypeRight, ParanthesesTypeBoth }
	Represents the valid parantheses types. More...

enum	ParenthesesType { ParenthesesTypeNone, ParenthesesTypeLeft, ParenthesesTypeRight, ParenthesesTypeBoth }
	Represents the valid parentheses types. More...

enum	ToleranceOption { ToleranceOptionNone, ToleranceOptionEqualBilateral, ToleranceOptionBilateral, ToleranceOptionUnilateralPlus, ToleranceOptionUnilateralMinus, ToleranceOptionPlusLimitTwoLines, ToleranceOptionMinusLimitTwoLines, ToleranceOptionPlusLimitOneLine, ToleranceOptionMinusLimitOneLine }
	Represents the valid surface finish tolerance types. More...

Public Member Functions
NXString	A1 ()
	Returns the a1 Created in NX6.0.0.

NXString	A2 ()
	Returns the a2 Created in NX6.0.0.

double	Angle ()
	Returns the angle Created in NX7.5.0.

NXString	B ()
	Returns the b Created in NX6.0.0.

NXString	C ()
	Returns the c Created in NX6.0.0.

NXString	D ()
	Returns the d Created in NX6.0.0.

NXString	E ()
	Returns the e Created in NX6.0.0.

NXString	F1 ()
	Returns the f1 Created in NX6.0.0.

NXString	F2 ()
	Returns the f2 Created in NX6.0.0.

NXOpen::Annotations::SurfaceFinishBuilder::FinishType	Finish ()
	Returns the finish Created in NX6.0.0.

void	InheritFrom (NXOpen::Annotations::SurfaceFinish *inheritTag)
	The surface finish is inherited form existing surface finish.

bool	InvertSymbol ()
	Returns the invert symbol Created in NX7.5.2.

bool	InvertText ()
	Returns the invert text flag Created in NX7.5.0.

double	LowerTolerance ()
	Returns the lower tolerance applicable for all the tolerance types other than Bilateral Created in NX7.5.0.

NXOpen::Annotations::BaseSurfaceFinishBuilder::ParanthesesType	Parantheses ()
	Returns the parantheses.

NXOpen::Annotations::BaseSurfaceFinishBuilder::ParenthesesType	Parentheses ()
	Returns the parentheses Created in NX8.0.0.

void	SetA1 (const NXString &a1)
	Sets the a1 Created in NX6.0.0.

void	SetA1 (const char *a1)
	Sets the a1 Created in NX6.0.0.

void	SetA2 (const NXString &a2)
	Sets the a2 Created in NX6.0.0.

void	SetA2 (const char *a2)
	Sets the a2 Created in NX6.0.0.

void	SetAngle (double angle)
	Sets the angle Created in NX7.5.0.

void	SetB (const NXString &b)
	Sets the b Created in NX6.0.0.

void	SetB (const char *b)
	Sets the b Created in NX6.0.0.

void	SetC (const NXString &c)
	Sets the c Created in NX6.0.0.

void	SetC (const char *c)
	Sets the c Created in NX6.0.0.

void	SetD (const NXString &d)
	Sets the d Created in NX6.0.0.

void	SetD (const char *d)
	Sets the d Created in NX6.0.0.

void	SetE (const NXString &e)
	Sets the e Created in NX6.0.0.

void	SetE (const char *e)
	Sets the e Created in NX6.0.0.

void	SetF1 (const NXString &f1)
	Sets the f1 Created in NX6.0.0.

void	SetF1 (const char *f1)
	Sets the f1 Created in NX6.0.0.

void	SetF2 (const NXString &f2)
	Sets the f2 Created in NX6.0.0.

void	SetF2 (const char *f2)
	Sets the f2 Created in NX6.0.0.

void	SetFinish (NXOpen::Annotations::SurfaceFinishBuilder::FinishType finish)
	Sets the finish Created in NX6.0.0.

void	SetInvertSymbol (bool invertSymbol)
	Sets the invert symbol Created in NX7.5.2.

void	SetInvertText (bool invertText)
	Sets the invert text flag Created in NX7.5.0.

void	SetLowerTolerance (double lowerTolerance)
	Sets the lower tolerance applicable for all the tolerance types other than Bilateral Created in NX7.5.0.

void	SetParantheses (NXOpen::Annotations::BaseSurfaceFinishBuilder::ParanthesesType paranthesesType)
	Sets the parantheses.

void	SetParentheses (NXOpen::Annotations::BaseSurfaceFinishBuilder::ParenthesesType parenthesesType)
	Sets the parentheses Created in NX8.0.0.

void	SetSingleRoughnessValue (bool singleRoughnessValue)
	Sets the single roughness value Created in NX8.0.0.

void	SetStandard (NXOpen::Annotations::SurfaceFinishBuilder::StandardType standard)
	Sets the standard Created in NX6.0.0.

void	SetTitle (const NXString &title)
	Sets the title Created in NX6.0.0.

void	SetTitle (const char *title)
	Sets the title Created in NX6.0.0.

void	SetTolerance (double tolerance)
	Sets the tolerance in case of bilateral tolerance type otherwise upper tolerance Created in NX7.5.0.

void	SetToleranceType (NXOpen::Annotations::BaseSurfaceFinishBuilder::ToleranceOption toleranceType)
	Sets the tolerance type is applicable only where Material Removal is required Created in NX7.5.0.

bool	SingleRoughnessValue ()
	Returns the single roughness value Created in NX8.0.0.

NXOpen::Annotations::SurfaceFinishBuilder::StandardType	Standard ()
	Returns the standard Created in NX6.0.0.

NXString	Title ()
	Returns the title Created in NX6.0.0.

double	Tolerance ()
	Returns the tolerance in case of bilateral tolerance type otherwise upper tolerance Created in NX7.5.0.

NXOpen::Annotations::BaseSurfaceFinishBuilder::ToleranceOption	ToleranceType ()
	Returns the tolerance type is applicable only where Material Removal is required Created in NX7.5.0.

Detailed Description

Represents a Annotations::SurfaceFinish builder
To create a new instance of this class, use Annotations::PmiAttributeCollection::CreateSurfaceFinishBuilder

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Annotations::SurfaceFinishBuilder::FinishType

the valid types for pmi finish type

Enumerator:

FinishTypeBasic	Basic.
FinishTypeModifier	Modifier.
FinishTypeModifierAllAround	Modifier, All Around.
FinishTypeMaterialRemovalRequired	Material Removal Required.
FinishTypeModifierMaterialRemovalRequired	Modifier, Material Removal Required.
FinishTypeModifierMaterialRemovalRequiredAllAround	Modifier, Material Removal Required, All Around.
FinishTypeMaterialRemovalProhibited	Material Removal Prohibited.
FinishTypeModifierMaterialRemovalProhibited	Modifier, Material Removal Prohibited.
FinishTypeModifierMaterialRemovalProhibitedAllAround	Modifier, Material Removal Prohibited, All Around.

enum NXOpen::Annotations::SurfaceFinishBuilder::StandardType

the valid types for pmi surface finish standards

Enumerator:

StandardTypeAnsi	ANSI.
StandardTypeIso	ISO.
StandardTypeJis	JIS.
StandardTypeDin	DIN.
StandardTypeIso2002	ISO 2002.
StandardTypeDin2002	DIN 2002.
StandardTypeGb	GB131-93.
StandardTypeEskd	ESKD.

Member Function Documentation

NXString NXOpen::Annotations::SurfaceFinishBuilder::A1 ( )

Returns the a1
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Annotations::SurfaceFinishBuilder::A2 ( )

Returns the a2
Created in NX6.0.0.

License requirements : None

double NXOpen::Annotations::SurfaceFinishBuilder::Angle ( )

Returns the angle
Created in NX7.5.0.

License requirements : None

NXString NXOpen::Annotations::SurfaceFinishBuilder::B ( )

Returns the b
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Annotations::SurfaceFinishBuilder::C ( )

Returns the c
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Annotations::SurfaceFinishBuilder::D ( )

Returns the d
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Annotations::SurfaceFinishBuilder::E ( )

Returns the e
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Annotations::SurfaceFinishBuilder::F1 ( )

Returns the f1
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Annotations::SurfaceFinishBuilder::F2 ( )

Returns the f2
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::SurfaceFinishBuilder::FinishType NXOpen::Annotations::SurfaceFinishBuilder::Finish ( )

Returns the finish
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::SurfaceFinishBuilder::InheritFrom ( NXOpen::Annotations::SurfaceFinish * inheritTag )

The surface finish is inherited form existing surface finish.

Created in NX8.5.0.

License requirements : None

Parameters

inheritTag inherittag

bool NXOpen::Annotations::SurfaceFinishBuilder::InvertSymbol ( )

Returns the invert symbol
Created in NX7.5.2.

License requirements : None

bool NXOpen::Annotations::SurfaceFinishBuilder::InvertText ( )

Returns the invert text flag
Created in NX7.5.0.

License requirements : None

double NXOpen::Annotations::SurfaceFinishBuilder::LowerTolerance ( )

Returns the lower tolerance applicable for all the tolerance types other than Bilateral
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::BaseSurfaceFinishBuilder::ParanthesesType NXOpen::Annotations::SurfaceFinishBuilder::Parantheses ( )

Returns the parantheses.

This method is deprecated.

Deprecated:: Deprecated in NX8.0.0. Use Annotations::SurfaceFinishBuilder::Parentheses and Annotations::SurfaceFinishBuilder::SetParentheses instead.

Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::BaseSurfaceFinishBuilder::ParenthesesType NXOpen::Annotations::SurfaceFinishBuilder::Parentheses ( )

Returns the parentheses
Created in NX8.0.0.

License requirements : None

void NXOpen::Annotations::SurfaceFinishBuilder::SetA1 ( const NXString & a1 )

Sets the a1
Created in NX6.0.0.

License requirements : None

Parameters

a1 a1

void NXOpen::Annotations::SurfaceFinishBuilder::SetA1 ( const char * a1 )

Sets the a1
Created in NX6.0.0.

License requirements : None

Parameters

a1 a1

void NXOpen::Annotations::SurfaceFinishBuilder::SetA2 ( const NXString & a2 )

Sets the a2
Created in NX6.0.0.

License requirements : None

Parameters

a2 a2

void NXOpen::Annotations::SurfaceFinishBuilder::SetA2 ( const char * a2 )

Sets the a2
Created in NX6.0.0.

License requirements : None

Parameters

a2 a2

void NXOpen::Annotations::SurfaceFinishBuilder::SetAngle ( double angle )

Sets the angle
Created in NX7.5.0.

License requirements : None

Parameters

angle angle

void NXOpen::Annotations::SurfaceFinishBuilder::SetB ( const NXString & b )

Sets the b
Created in NX6.0.0.

License requirements : None

Parameters

b b

void NXOpen::Annotations::SurfaceFinishBuilder::SetB ( const char * b )

Sets the b
Created in NX6.0.0.

License requirements : None

Parameters

b b

void NXOpen::Annotations::SurfaceFinishBuilder::SetC ( const NXString & c )

Sets the c
Created in NX6.0.0.

License requirements : None

Parameters

c c

void NXOpen::Annotations::SurfaceFinishBuilder::SetC ( const char * c )

Sets the c
Created in NX6.0.0.

License requirements : None

Parameters

c c

void NXOpen::Annotations::SurfaceFinishBuilder::SetD ( const NXString & d )

Sets the d
Created in NX6.0.0.

License requirements : None

Parameters

d d

void NXOpen::Annotations::SurfaceFinishBuilder::SetD ( const char * d )

Sets the d
Created in NX6.0.0.

License requirements : None

Parameters

d d

void NXOpen::Annotations::SurfaceFinishBuilder::SetE ( const NXString & e )

Sets the e
Created in NX6.0.0.

License requirements : None

Parameters

e e

void NXOpen::Annotations::SurfaceFinishBuilder::SetE ( const char * e )

Sets the e
Created in NX6.0.0.

License requirements : None

Parameters

e e

void NXOpen::Annotations::SurfaceFinishBuilder::SetF1 ( const NXString & f1 )

Sets the f1
Created in NX6.0.0.

License requirements : None

Parameters

f1 f1

void NXOpen::Annotations::SurfaceFinishBuilder::SetF1 ( const char * f1 )

Sets the f1
Created in NX6.0.0.

License requirements : None

Parameters

f1 f1

void NXOpen::Annotations::SurfaceFinishBuilder::SetF2 ( const NXString & f2 )

Sets the f2
Created in NX6.0.0.

License requirements : None

Parameters

f2 f2

void NXOpen::Annotations::SurfaceFinishBuilder::SetF2 ( const char * f2 )

Sets the f2
Created in NX6.0.0.

License requirements : None

Parameters

f2 f2

void NXOpen::Annotations::SurfaceFinishBuilder::SetFinish ( NXOpen::Annotations::SurfaceFinishBuilder::FinishType finish )

Sets the finish
Created in NX6.0.0.

License requirements : None

Parameters

finish finish

void NXOpen::Annotations::SurfaceFinishBuilder::SetInvertSymbol ( bool invertSymbol )

Sets the invert symbol
Created in NX7.5.2.

License requirements : None

Parameters

invertSymbol invertsymbol

void NXOpen::Annotations::SurfaceFinishBuilder::SetInvertText ( bool invertText )

Sets the invert text flag
Created in NX7.5.0.

License requirements : None

Parameters

invertText inverttext

void NXOpen::Annotations::SurfaceFinishBuilder::SetLowerTolerance ( double lowerTolerance )

Sets the lower tolerance applicable for all the tolerance types other than Bilateral
Created in NX7.5.0.

License requirements : None

Parameters

lowerTolerance lowertolerance

void NXOpen::Annotations::SurfaceFinishBuilder::SetParantheses ( NXOpen::Annotations::BaseSurfaceFinishBuilder::ParanthesesType paranthesesType )

Sets the parantheses.

This method is deprecated.

Deprecated:: Deprecated in NX8.0.0. Use Annotations::SurfaceFinishBuilder::Parentheses and Annotations::SurfaceFinishBuilder::SetParentheses instead.

Created in NX7.5.0.

License requirements : None

Parameters

paranthesesType paranthesestype

void NXOpen::Annotations::SurfaceFinishBuilder::SetParentheses ( NXOpen::Annotations::BaseSurfaceFinishBuilder::ParenthesesType parenthesesType )

Sets the parentheses
Created in NX8.0.0.

License requirements : None

Parameters

parenthesesType parenthesestype

void NXOpen::Annotations::SurfaceFinishBuilder::SetSingleRoughnessValue ( bool singleRoughnessValue )

Sets the single roughness value
Created in NX8.0.0.

License requirements : None

Parameters

singleRoughnessValue singleroughnessvalue

void NXOpen::Annotations::SurfaceFinishBuilder::SetStandard ( NXOpen::Annotations::SurfaceFinishBuilder::StandardType standard )

Sets the standard
Created in NX6.0.0.

License requirements : None

Parameters

standard standard

void NXOpen::Annotations::SurfaceFinishBuilder::SetTitle ( const NXString & title )

Sets the title
Created in NX6.0.0.

License requirements : None

Parameters

title title

void NXOpen::Annotations::SurfaceFinishBuilder::SetTitle ( const char * title )

Sets the title
Created in NX6.0.0.

License requirements : None

Parameters

title title

void NXOpen::Annotations::SurfaceFinishBuilder::SetTolerance ( double tolerance )

Sets the tolerance in case of bilateral tolerance type otherwise upper tolerance
Created in NX7.5.0.

License requirements : None

Parameters

tolerance tolerance

void NXOpen::Annotations::SurfaceFinishBuilder::SetToleranceType ( NXOpen::Annotations::BaseSurfaceFinishBuilder::ToleranceOption toleranceType )

Sets the tolerance type is applicable only where Material Removal is required
Created in NX7.5.0.

License requirements : None

Parameters

toleranceType tolerancetype

bool NXOpen::Annotations::SurfaceFinishBuilder::SingleRoughnessValue ( )

Returns the single roughness value
Created in NX8.0.0.

License requirements : None

NXOpen::Annotations::SurfaceFinishBuilder::StandardType NXOpen::Annotations::SurfaceFinishBuilder::Standard ( )

Returns the standard
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Annotations::SurfaceFinishBuilder::Title ( )

Returns the title
Created in NX6.0.0.

License requirements : None

double NXOpen::Annotations::SurfaceFinishBuilder::Tolerance ( )

Returns the tolerance in case of bilateral tolerance type otherwise upper tolerance
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::BaseSurfaceFinishBuilder::ToleranceOption NXOpen::Annotations::SurfaceFinishBuilder::ToleranceType ( )

Returns the tolerance type is applicable only where Material Removal is required
Created in NX7.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Annotations_SurfaceFinishBuilder.hxx
