Represents SearchCriteriaDimensionBuilder
To create a new instance of this class, use Annotations::SearchModelViewCollection::CreateSearchCriteriaDimensionBuilder

Created in NX7.5.0. More...

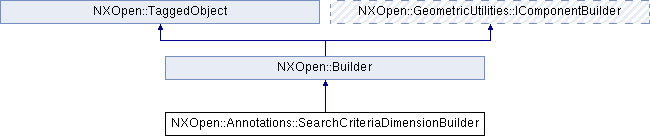

Inheritance diagram for NXOpen::Annotations::SearchCriteriaDimensionBuilder:

Public Types
enum	DiameterSymbolOptions { DiameterSymbolOptionsDiameter, DiameterSymbolOptionsDia, DiameterSymbolOptionsSphericalDiameter, DiameterSymbolOptionsUserDefined }
	DiameterSymbolOption. More...

enum	DimensionTypes { DimensionTypesLinear, DimensionTypesAngular, DimensionTypesDiameter, DimensionTypesRadial, DimensionTypesChamfer, DimensionTypesThickness, DimensionTypesArcLength, DimensionTypesChain, DimensionTypesOrdinate, DimensionTypesBaseline }
	DimensionTypes. More...

enum	RadialSymbolOptions { RadialSymbolOptionsR, RadialSymbolOptionsRad, RadialSymbolOptionsSr, RadialSymbolOptionsCr, RadialSymbolOptionsUserDefined }
	RadialSymbolOption. More...

enum	ToleranceTypes { ToleranceTypesNoTolerance, ToleranceTypesEqualBilateralTolerance, ToleranceTypesBilateralTolerance, ToleranceTypesUnilateralPlus, ToleranceTypesUnilateralMinus, ToleranceTypesPlusLimitTwoLines, ToleranceTypesMinusLimitTwoLines, ToleranceTypesPlusLimitOneLine, ToleranceTypesMinusLimitOneLine, ToleranceTypesLimitsAndFits, ToleranceTypesBasic, ToleranceTypesReference, ToleranceTypesDiameterReference, ToleranceTypesNotToScale, ToleranceTypesBasicDimensionNotToScale }
	ToleranceTypes. More...

Public Member Functions
NXString	AboveText ()
	Returns the above text Created in NX7.5.0.

NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions	AboveTextType ()
	Returns the above text enum Created in NX7.5.0.

NXString	AfterText ()
	Returns the after text Created in NX7.5.0.

NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions	AfterTextType ()
	Returns the after text enum Created in NX7.5.0.

NXString	BeforeText ()
	Returns the before text Created in NX7.5.0.

NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions	BeforeTextType ()
	Returns the before text enum Created in NX7.5.0.

NXString	BelowText ()
	Returns the below text Created in NX7.5.0.

NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions	BelowTextType ()
	Returns the below text enum Created in NX7.5.0.

bool	ByAboveText ()
	Returns the above text toggle Created in NX7.5.0.

bool	ByAfterText ()
	Returns the after text toggle Created in NX7.5.0.

bool	ByBeforeText ()
	Returns the before text toggle Created in NX7.5.0.

bool	ByBelowText ()
	Returns the below text toggle Created in NX7.5.0.

bool	ByDeviation ()
	Returns the deviation toggle Created in NX7.5.0.

bool	ByDiameterSymbol ()
	Returns the diameter symbol toggle Created in NX7.5.0.

bool	ByDimensionType ()
	Returns the dimension type toggle Created in NX7.5.0.

bool	ByDimensionValue ()
	Returns the dimension value toggle Created in NX7.5.0.

bool	ByGrade ()
	Returns the grade toggle Created in NX7.5.0.

bool	ByLowerTolerance ()
	Returns the lower tolerance toggle Created in NX7.5.0.

bool	ByRadialSymbol ()
	Returns the radial symbol toggle Created in NX7.5.0.

bool	ByToleranceType ()
	Returns the tolerance type toggle Created in NX7.5.0.

bool	ByUpperTolerance ()
	Returns the upper tolerance toggle Created in NX7.5.0.

NXOpen::Annotations::SearchCriteriaCalloutBuilder *	Callout ()
	Returns the callout block Created in NX9.0.0.

NXString	Deviation ()
	Returns the deviation Created in NX7.5.0.

NXOpen::Annotations::SearchCriteriaDimensionBuilder::DiameterSymbolOptions	DiameterSymbol ()
	Returns the diameter symbol Created in NX7.5.0.

NXOpen::Annotations::SearchCriteriaDimensionBuilder::DimensionTypes	DimensionType ()
	Returns the dimension type Created in NX7.5.0.

double	DimensionValue ()
	Returns the dimension value Created in NX7.5.0.

NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions	DimensionValueType ()
	Returns the dimension value enum Created in NX7.5.0.

NXString	Grade ()
	Returns the grade Created in NX7.5.0.

NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions	LowerToleranceType ()
	Returns the lower tolerance enum Created in NX7.5.0.

double	LowerToleranceValue ()
	Returns the lower tolerance value Created in NX7.5.0.

NXOpen::Annotations::SearchCriteriaDimensionBuilder::RadialSymbolOptions	RadialSymbol ()
	Returns the radial symbol Created in NX7.5.0.

void	SetAboveText (const NXString &aboveText)
	Sets the above text Created in NX7.5.0.

void	SetAboveText (const char *aboveText)
	Sets the above text Created in NX7.5.0.

void	SetAboveTextType (NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions aboveTextType)
	Sets the above text enum Created in NX7.5.0.

void	SetAfterText (const NXString &afterText)
	Sets the after text Created in NX7.5.0.

void	SetAfterText (const char *afterText)
	Sets the after text Created in NX7.5.0.

void	SetAfterTextType (NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions afterTextType)
	Sets the after text enum Created in NX7.5.0.

void	SetBeforeText (const NXString &beforeText)
	Sets the before text Created in NX7.5.0.

void	SetBeforeText (const char *beforeText)
	Sets the before text Created in NX7.5.0.

void	SetBeforeTextType (NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions beforeTextType)
	Sets the before text enum Created in NX7.5.0.

void	SetBelowText (const NXString &belowText)
	Sets the below text Created in NX7.5.0.

void	SetBelowText (const char *belowText)
	Sets the below text Created in NX7.5.0.

void	SetBelowTextType (NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions belowTextType)
	Sets the below text enum Created in NX7.5.0.

void	SetByAboveText (bool aboveText)
	Sets the above text toggle Created in NX7.5.0.

void	SetByAfterText (bool afterText)
	Sets the after text toggle Created in NX7.5.0.

void	SetByBeforeText (bool beforeText)
	Sets the before text toggle Created in NX7.5.0.

void	SetByBelowText (bool belowText)
	Sets the below text toggle Created in NX7.5.0.

void	SetByDeviation (bool byDeviation)
	Sets the deviation toggle Created in NX7.5.0.

void	SetByDiameterSymbol (bool diameterSymbol)
	Sets the diameter symbol toggle Created in NX7.5.0.

void	SetByDimensionType (bool dimensionType)
	Sets the dimension type toggle Created in NX7.5.0.

void	SetByDimensionValue (bool dimensionValue)
	Sets the dimension value toggle Created in NX7.5.0.

void	SetByGrade (bool byGrade)
	Sets the grade toggle Created in NX7.5.0.

void	SetByLowerTolerance (bool lowerTolerance)
	Sets the lower tolerance toggle Created in NX7.5.0.

void	SetByRadialSymbol (bool radialSymbol)
	Sets the radial symbol toggle Created in NX7.5.0.

void	SetByToleranceType (bool toleranceType)
	Sets the tolerance type toggle Created in NX7.5.0.

void	SetByUpperTolerance (bool upperTolerance)
	Sets the upper tolerance toggle Created in NX7.5.0.

void	SetDeviation (const NXString &deviation)
	Sets the deviation Created in NX7.5.0.

void	SetDeviation (const char *deviation)
	Sets the deviation Created in NX7.5.0.

void	SetDiameterSymbol (NXOpen::Annotations::SearchCriteriaDimensionBuilder::DiameterSymbolOptions diameterSymbol)
	Sets the diameter symbol Created in NX7.5.0.

void	SetDimensionType (NXOpen::Annotations::SearchCriteriaDimensionBuilder::DimensionTypes dimensionType)
	Sets the dimension type Created in NX7.5.0.

void	SetDimensionValue (double dimensionValue)
	Sets the dimension value Created in NX7.5.0.

void	SetDimensionValueType (NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions dimensionValueType)
	Sets the dimension value enum Created in NX7.5.0.

void	SetGrade (const NXString &grade)
	Sets the grade Created in NX7.5.0.

void	SetGrade (const char *grade)
	Sets the grade Created in NX7.5.0.

void	SetLowerToleranceType (NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions lowerToleranceType)
	Sets the lower tolerance enum Created in NX7.5.0.

void	SetLowerToleranceValue (double lowerToleranceValue)
	Sets the lower tolerance value Created in NX7.5.0.

void	SetRadialSymbol (NXOpen::Annotations::SearchCriteriaDimensionBuilder::RadialSymbolOptions radialSymbol)
	Sets the radial symbol Created in NX7.5.0.

void	SetToleranceType (NXOpen::Annotations::SearchCriteriaDimensionBuilder::ToleranceTypes toleranceType)
	Sets the tolerance type Created in NX7.5.0.

void	SetUpperToleranceType (NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions upperToleranceType)
	Sets the upper tolerance enum Created in NX7.5.0.

void	SetUpperToleranceValue (double upperToleranceValue)
	Sets the upper tolerance value Created in NX7.5.0.

NXOpen::Annotations::SearchCriteriaDimensionBuilder::ToleranceTypes	ToleranceType ()
	Returns the tolerance type Created in NX7.5.0.

NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions	UpperToleranceType ()
	Returns the upper tolerance enum Created in NX7.5.0.

double	UpperToleranceValue ()
	Returns the upper tolerance value Created in NX7.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents SearchCriteriaDimensionBuilder
To create a new instance of this class, use Annotations::SearchModelViewCollection::CreateSearchCriteriaDimensionBuilder

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::Annotations::SearchCriteriaDimensionBuilder::DiameterSymbolOptions

DiameterSymbolOption.

Enumerator:

DiameterSymbolOptionsDiameter	diameter
DiameterSymbolOptionsDia	dia
DiameterSymbolOptionsSphericalDiameter	spherical diameter
DiameterSymbolOptionsUserDefined	UserDefined.

enum NXOpen::Annotations::SearchCriteriaDimensionBuilder::DimensionTypes

DimensionTypes.

Enumerator:

DimensionTypesLinear	Linear.
DimensionTypesAngular	Angular.
DimensionTypesDiameter	Diameter.
DimensionTypesRadial	Radial.
DimensionTypesChamfer	Chamfer.
DimensionTypesThickness	Thickness.
DimensionTypesArcLength	ArcLength.
DimensionTypesChain	Chain.
DimensionTypesOrdinate	Ordinate.
DimensionTypesBaseline	Baseline.

enum NXOpen::Annotations::SearchCriteriaDimensionBuilder::RadialSymbolOptions

RadialSymbolOption.

Enumerator:

RadialSymbolOptionsR	R.
RadialSymbolOptionsRad	RAD.
RadialSymbolOptionsSr	SR.
RadialSymbolOptionsCr	CR.
RadialSymbolOptionsUserDefined	UserDefined.

enum NXOpen::Annotations::SearchCriteriaDimensionBuilder::ToleranceTypes

ToleranceTypes.

Enumerator:

ToleranceTypesNoTolerance	NoTolerance.
ToleranceTypesEqualBilateralTolerance	qualBilateralTolerance
ToleranceTypesBilateralTolerance	BilateralTolerance.
ToleranceTypesUnilateralPlus	UnilateralPlus.
ToleranceTypesUnilateralMinus	UnilateralMinus.
ToleranceTypesPlusLimitTwoLines	PlusLimitTwoLines.
ToleranceTypesMinusLimitTwoLines	MinusLimitTwoLines.
ToleranceTypesPlusLimitOneLine	PlusLimitOneLine.
ToleranceTypesMinusLimitOneLine	MinusLimitOneLine.
ToleranceTypesLimitsAndFits	LimitsAndFits.
ToleranceTypesBasic	Basic.
ToleranceTypesReference	Reference.
ToleranceTypesDiameterReference	DiameterReference.
ToleranceTypesNotToScale	NotToScale.
ToleranceTypesBasicDimensionNotToScale	BasicDimensionNotToScale.

Member Function Documentation

NXString NXOpen::Annotations::SearchCriteriaDimensionBuilder::AboveText ( )

Returns the above text
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions NXOpen::Annotations::SearchCriteriaDimensionBuilder::AboveTextType ( )

Returns the above text enum
Created in NX7.5.0.

License requirements : None

NXString NXOpen::Annotations::SearchCriteriaDimensionBuilder::AfterText ( )

Returns the after text
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions NXOpen::Annotations::SearchCriteriaDimensionBuilder::AfterTextType ( )

Returns the after text enum
Created in NX7.5.0.

License requirements : None

NXString NXOpen::Annotations::SearchCriteriaDimensionBuilder::BeforeText ( )

Returns the before text
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions NXOpen::Annotations::SearchCriteriaDimensionBuilder::BeforeTextType ( )

Returns the before text enum
Created in NX7.5.0.

License requirements : None

NXString NXOpen::Annotations::SearchCriteriaDimensionBuilder::BelowText ( )

Returns the below text
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions NXOpen::Annotations::SearchCriteriaDimensionBuilder::BelowTextType ( )

Returns the below text enum
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDimensionBuilder::ByAboveText ( )

Returns the above text toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDimensionBuilder::ByAfterText ( )

Returns the after text toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDimensionBuilder::ByBeforeText ( )

Returns the before text toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDimensionBuilder::ByBelowText ( )

Returns the below text toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDimensionBuilder::ByDeviation ( )

Returns the deviation toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDimensionBuilder::ByDiameterSymbol ( )

Returns the diameter symbol toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDimensionBuilder::ByDimensionType ( )

Returns the dimension type toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDimensionBuilder::ByDimensionValue ( )

Returns the dimension value toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDimensionBuilder::ByGrade ( )

Returns the grade toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDimensionBuilder::ByLowerTolerance ( )

Returns the lower tolerance toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDimensionBuilder::ByRadialSymbol ( )

Returns the radial symbol toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDimensionBuilder::ByToleranceType ( )

Returns the tolerance type toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDimensionBuilder::ByUpperTolerance ( )

Returns the upper tolerance toggle
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchCriteriaCalloutBuilder* NXOpen::Annotations::SearchCriteriaDimensionBuilder::Callout ( )

Returns the callout block
Created in NX9.0.0.

License requirements : None

NXString NXOpen::Annotations::SearchCriteriaDimensionBuilder::Deviation ( )

Returns the deviation
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchCriteriaDimensionBuilder::DiameterSymbolOptions NXOpen::Annotations::SearchCriteriaDimensionBuilder::DiameterSymbol ( )

Returns the diameter symbol
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchCriteriaDimensionBuilder::DimensionTypes NXOpen::Annotations::SearchCriteriaDimensionBuilder::DimensionType ( )

Returns the dimension type
Created in NX7.5.0.

License requirements : None

double NXOpen::Annotations::SearchCriteriaDimensionBuilder::DimensionValue ( )

Returns the dimension value
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions NXOpen::Annotations::SearchCriteriaDimensionBuilder::DimensionValueType ( )

Returns the dimension value enum
Created in NX7.5.0.

License requirements : None

NXString NXOpen::Annotations::SearchCriteriaDimensionBuilder::Grade ( )

Returns the grade
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions NXOpen::Annotations::SearchCriteriaDimensionBuilder::LowerToleranceType ( )

Returns the lower tolerance enum
Created in NX7.5.0.

License requirements : None

double NXOpen::Annotations::SearchCriteriaDimensionBuilder::LowerToleranceValue ( )

Returns the lower tolerance value
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchCriteriaDimensionBuilder::RadialSymbolOptions NXOpen::Annotations::SearchCriteriaDimensionBuilder::RadialSymbol ( )

Returns the radial symbol
Created in NX7.5.0.

License requirements : None

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetAboveText ( const NXString & aboveText )

Sets the above text
Created in NX7.5.0.

License requirements : None

Parameters

aboveText abovetext

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetAboveText ( const char * aboveText )

Sets the above text
Created in NX7.5.0.

License requirements : None

Parameters

aboveText abovetext

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetAboveTextType ( NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions aboveTextType )

Sets the above text enum
Created in NX7.5.0.

License requirements : None

Parameters

aboveTextType abovetexttype

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetAfterText ( const NXString & afterText )

Sets the after text
Created in NX7.5.0.

License requirements : None

Parameters

afterText aftertext

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetAfterText ( const char * afterText )

Sets the after text
Created in NX7.5.0.

License requirements : None

Parameters

afterText aftertext

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetAfterTextType ( NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions afterTextType )

Sets the after text enum
Created in NX7.5.0.

License requirements : None

Parameters

afterTextType aftertexttype

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetBeforeText ( const NXString & beforeText )

Sets the before text
Created in NX7.5.0.

License requirements : None

Parameters

beforeText beforetext

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetBeforeText ( const char * beforeText )

Sets the before text
Created in NX7.5.0.

License requirements : None

Parameters

beforeText beforetext

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetBeforeTextType ( NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions beforeTextType )

Sets the before text enum
Created in NX7.5.0.

License requirements : None

Parameters

beforeTextType beforetexttype

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetBelowText ( const NXString & belowText )

Sets the below text
Created in NX7.5.0.

License requirements : None

Parameters

belowText belowtext

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetBelowText ( const char * belowText )

Sets the below text
Created in NX7.5.0.

License requirements : None

Parameters

belowText belowtext

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetBelowTextType ( NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions belowTextType )

Sets the below text enum
Created in NX7.5.0.

License requirements : None

Parameters

belowTextType belowtexttype

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetByAboveText ( bool aboveText )

Sets the above text toggle
Created in NX7.5.0.

License requirements : None

Parameters

aboveText abovetext

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetByAfterText ( bool afterText )

Sets the after text toggle
Created in NX7.5.0.

License requirements : None

Parameters

afterText aftertext

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetByBeforeText ( bool beforeText )

Sets the before text toggle
Created in NX7.5.0.

License requirements : None

Parameters

beforeText beforetext

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetByBelowText ( bool belowText )

Sets the below text toggle
Created in NX7.5.0.

License requirements : None

Parameters

belowText belowtext

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetByDeviation ( bool byDeviation )

Sets the deviation toggle
Created in NX7.5.0.

License requirements : None

Parameters

byDeviation bydeviation

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetByDiameterSymbol ( bool diameterSymbol )

Sets the diameter symbol toggle
Created in NX7.5.0.

License requirements : None

Parameters

diameterSymbol diametersymbol

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetByDimensionType ( bool dimensionType )

Sets the dimension type toggle
Created in NX7.5.0.

License requirements : None

Parameters

dimensionType dimensiontype

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetByDimensionValue ( bool dimensionValue )

Sets the dimension value toggle
Created in NX7.5.0.

License requirements : None

Parameters

dimensionValue dimensionvalue

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetByGrade ( bool byGrade )

Sets the grade toggle
Created in NX7.5.0.

License requirements : None

Parameters

byGrade bygrade

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetByLowerTolerance ( bool lowerTolerance )

Sets the lower tolerance toggle
Created in NX7.5.0.

License requirements : None

Parameters

lowerTolerance lowertolerance

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetByRadialSymbol ( bool radialSymbol )

Sets the radial symbol toggle
Created in NX7.5.0.

License requirements : None

Parameters

radialSymbol radialsymbol

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetByToleranceType ( bool toleranceType )

Sets the tolerance type toggle
Created in NX7.5.0.

License requirements : None

Parameters

toleranceType tolerancetype

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetByUpperTolerance ( bool upperTolerance )

Sets the upper tolerance toggle
Created in NX7.5.0.

License requirements : None

Parameters

upperTolerance uppertolerance

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetDeviation ( const NXString & deviation )

Sets the deviation
Created in NX7.5.0.

License requirements : None

Parameters

deviation deviation

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetDeviation ( const char * deviation )

Sets the deviation
Created in NX7.5.0.

License requirements : None

Parameters

deviation deviation

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetDiameterSymbol ( NXOpen::Annotations::SearchCriteriaDimensionBuilder::DiameterSymbolOptions diameterSymbol )

Sets the diameter symbol
Created in NX7.5.0.

License requirements : None

Parameters

diameterSymbol diametersymbol

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetDimensionType ( NXOpen::Annotations::SearchCriteriaDimensionBuilder::DimensionTypes dimensionType )

Sets the dimension type
Created in NX7.5.0.

License requirements : None

Parameters

dimensionType dimensiontype

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetDimensionValue ( double dimensionValue )

Sets the dimension value
Created in NX7.5.0.

License requirements : None

Parameters

dimensionValue dimensionvalue

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetDimensionValueType ( NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions dimensionValueType )

Sets the dimension value enum
Created in NX7.5.0.

License requirements : None

Parameters

dimensionValueType dimensionvaluetype

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetGrade ( const NXString & grade )

Sets the grade
Created in NX7.5.0.

License requirements : None

Parameters

grade grade

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetGrade ( const char * grade )

Sets the grade
Created in NX7.5.0.

License requirements : None

Parameters

grade grade

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetLowerToleranceType ( NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions lowerToleranceType )

Sets the lower tolerance enum
Created in NX7.5.0.

License requirements : None

Parameters

lowerToleranceType lowertolerancetype

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetLowerToleranceValue ( double lowerToleranceValue )

Sets the lower tolerance value
Created in NX7.5.0.

License requirements : None

Parameters

lowerToleranceValue lowertolerancevalue

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetRadialSymbol ( NXOpen::Annotations::SearchCriteriaDimensionBuilder::RadialSymbolOptions radialSymbol )

Sets the radial symbol
Created in NX7.5.0.

License requirements : None

Parameters

radialSymbol radialsymbol

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetToleranceType ( NXOpen::Annotations::SearchCriteriaDimensionBuilder::ToleranceTypes toleranceType )

Sets the tolerance type
Created in NX7.5.0.

License requirements : None

Parameters

toleranceType tolerancetype

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetUpperToleranceType ( NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions upperToleranceType )

Sets the upper tolerance enum
Created in NX7.5.0.

License requirements : None

Parameters

upperToleranceType uppertolerancetype

void NXOpen::Annotations::SearchCriteriaDimensionBuilder::SetUpperToleranceValue ( double upperToleranceValue )

Sets the upper tolerance value
Created in NX7.5.0.

License requirements : None

Parameters

upperToleranceValue uppertolerancevalue

NXOpen::Annotations::SearchCriteriaDimensionBuilder::ToleranceTypes NXOpen::Annotations::SearchCriteriaDimensionBuilder::ToleranceType ( )

Returns the tolerance type
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions NXOpen::Annotations::SearchCriteriaDimensionBuilder::UpperToleranceType ( )

Returns the upper tolerance enum
Created in NX7.5.0.

License requirements : None

double NXOpen::Annotations::SearchCriteriaDimensionBuilder::UpperToleranceValue ( )

Returns the upper tolerance value
Created in NX7.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Annotations_SearchCriteriaDimensionBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
