Represents SearchCriteriaDatumTargetBuilder
To create a new instance of this class, use Annotations::SearchModelViewCollection::CreateSearchCriteriaDatumTargetBuilder

Created in NX7.5.0. More...

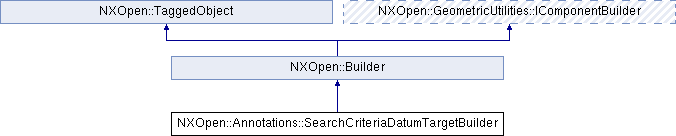

Inheritance diagram for NXOpen::Annotations::SearchCriteriaDatumTargetBuilder:

Public Types
enum	DatumTargetTypes { DatumTargetTypesPoint, DatumTargetTypesLine, DatumTargetTypesRectangular, DatumTargetTypesCircular, DatumTargetTypesAnnular, DatumTargetTypesSpherical, DatumTargetTypesCylindrical, DatumTargetTypesArbitrary }
	Lists the search pmi datum target type. More...

Public Member Functions
bool	ByDatumTargetLabel ()
	Returns the datum target label toggle Created in NX7.5.0.

bool	ByDatumTargetType ()
	Returns the datum target type toggle Created in NX7.5.0.

bool	ByHeight ()
	Returns the height toggle Created in NX7.5.0.

bool	ByInnerDiameter ()
	Returns the inner diameter toggle Created in NX7.5.0.

bool	ByOuterDiameter ()
	Returns the outer diameter toggle Created in NX7.5.0.

bool	ByText ()
	Returns the text toggle Created in NX7.5.0.

bool	ByWidth ()
	Returns the width toggle Created in NX7.5.0.

NXString	DatumTargetLabelText ()
	Returns the datum target label text Created in NX7.5.0.

NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::DatumTargetTypes	DatumTargetType ()
	Returns the datum target type enum Created in NX7.5.0.

NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions	HeightType ()
	Returns the height enum Created in NX7.5.0.

double	HeightValue ()
	Returns the height value Created in NX7.5.0.

NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions	InnerDiameterType ()
	Returns the inner diameter enum Created in NX7.5.0.

double	InnerDiameterValue ()
	Returns the inner diameter value Created in NX7.5.0.

NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions	OuterDiameterType ()
	Returns the outer diameter enum Created in NX7.5.0.

double	OuterDiameterValue ()
	Returns the outer diameter value Created in NX7.5.0.

void	SetByDatumTargetLabel (bool datumTargetLabel)
	Sets the datum target label toggle Created in NX7.5.0.

void	SetByDatumTargetType (bool datumTargetType)
	Sets the datum target type toggle Created in NX7.5.0.

void	SetByHeight (bool height)
	Sets the height toggle Created in NX7.5.0.

void	SetByInnerDiameter (bool innerDiameter)
	Sets the inner diameter toggle Created in NX7.5.0.

void	SetByOuterDiameter (bool outerDiameter)
	Sets the outer diameter toggle Created in NX7.5.0.

void	SetByText (bool text)
	Sets the text toggle Created in NX7.5.0.

void	SetByWidth (bool width)
	Sets the width toggle Created in NX7.5.0.

void	SetDatumTargetLabelText (const NXString &datumTargetLabelText)
	Sets the datum target label text Created in NX7.5.0.

void	SetDatumTargetLabelText (const char *datumTargetLabelText)
	Sets the datum target label text Created in NX7.5.0.

void	SetDatumTargetType (NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::DatumTargetTypes datumTargetType)
	Sets the datum target type enum Created in NX7.5.0.

void	SetHeightType (NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions heightType)
	Sets the height enum Created in NX7.5.0.

void	SetHeightValue (double heightValue)
	Sets the height value Created in NX7.5.0.

void	SetInnerDiameterType (NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions innerDiameterType)
	Sets the inner diameter enum Created in NX7.5.0.

void	SetInnerDiameterValue (double innerDiameterValue)
	Sets the inner diameter value Created in NX7.5.0.

void	SetOuterDiameterType (NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions outerDiameterType)
	Sets the outer diameter enum Created in NX7.5.0.

void	SetOuterDiameterValue (double outerDiameterValue)
	Sets the outer diameter value Created in NX7.5.0.

void	SetText (const NXString &text)
	Sets the text Created in NX7.5.0.

void	SetText (const char *text)
	Sets the text Created in NX7.5.0.

void	SetTextType (NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions textType)
	Sets the text enum Created in NX7.5.0.

void	SetWidthType (NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions widthType)
	Sets the width enum Created in NX7.5.0.

void	SetWidthValue (double widthValue)
	Sets the width value Created in NX7.5.0.

NXString	Text ()
	Returns the text Created in NX7.5.0.

NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions	TextType ()
	Returns the text enum Created in NX7.5.0.

NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions	WidthType ()
	Returns the width enum Created in NX7.5.0.

double	WidthValue ()
	Returns the width value Created in NX7.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents SearchCriteriaDatumTargetBuilder
To create a new instance of this class, use Annotations::SearchModelViewCollection::CreateSearchCriteriaDatumTargetBuilder

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::DatumTargetTypes

Lists the search pmi datum target type.

Enumerator:

DatumTargetTypesPoint	point type
DatumTargetTypesLine	line type
DatumTargetTypesRectangular	rectangular type
DatumTargetTypesCircular	circular type
DatumTargetTypesAnnular	annular type
DatumTargetTypesSpherical	spherical type
DatumTargetTypesCylindrical	cylindrical type
DatumTargetTypesArbitrary	arbitray type

Member Function Documentation

bool NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::ByDatumTargetLabel ( )

Returns the datum target label toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::ByDatumTargetType ( )

Returns the datum target type toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::ByHeight ( )

Returns the height toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::ByInnerDiameter ( )

Returns the inner diameter toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::ByOuterDiameter ( )

Returns the outer diameter toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::ByText ( )

Returns the text toggle
Created in NX7.5.0.

License requirements : None

bool NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::ByWidth ( )

Returns the width toggle
Created in NX7.5.0.

License requirements : None

NXString NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::DatumTargetLabelText ( )

Returns the datum target label text
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::DatumTargetTypes NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::DatumTargetType ( )

Returns the datum target type enum
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::HeightType ( )

Returns the height enum
Created in NX7.5.0.

License requirements : None

double NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::HeightValue ( )

Returns the height value
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::InnerDiameterType ( )

Returns the inner diameter enum
Created in NX7.5.0.

License requirements : None

double NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::InnerDiameterValue ( )

Returns the inner diameter value
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::OuterDiameterType ( )

Returns the outer diameter enum
Created in NX7.5.0.

License requirements : None

double NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::OuterDiameterValue ( )

Returns the outer diameter value
Created in NX7.5.0.

License requirements : None

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetByDatumTargetLabel ( bool datumTargetLabel )

Sets the datum target label toggle
Created in NX7.5.0.

License requirements : None

Parameters

datumTargetLabel datumtargetlabel

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetByDatumTargetType ( bool datumTargetType )

Sets the datum target type toggle
Created in NX7.5.0.

License requirements : None

Parameters

datumTargetType datumtargettype

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetByHeight ( bool height )

Sets the height toggle
Created in NX7.5.0.

License requirements : None

Parameters

height height

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetByInnerDiameter ( bool innerDiameter )

Sets the inner diameter toggle
Created in NX7.5.0.

License requirements : None

Parameters

innerDiameter innerdiameter

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetByOuterDiameter ( bool outerDiameter )

Sets the outer diameter toggle
Created in NX7.5.0.

License requirements : None

Parameters

outerDiameter outerdiameter

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetByText ( bool text )

Sets the text toggle
Created in NX7.5.0.

License requirements : None

Parameters

text text

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetByWidth ( bool width )

Sets the width toggle
Created in NX7.5.0.

License requirements : None

Parameters

width width

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetDatumTargetLabelText ( const NXString & datumTargetLabelText )

Sets the datum target label text
Created in NX7.5.0.

License requirements : None

Parameters

datumTargetLabelText datumtargetlabeltext

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetDatumTargetLabelText ( const char * datumTargetLabelText )

Sets the datum target label text
Created in NX7.5.0.

License requirements : None

Parameters

datumTargetLabelText datumtargetlabeltext

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetDatumTargetType ( NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::DatumTargetTypes datumTargetType )

Sets the datum target type enum
Created in NX7.5.0.

License requirements : None

Parameters

datumTargetType datumtargettype

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetHeightType ( NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions heightType )

Sets the height enum
Created in NX7.5.0.

License requirements : None

Parameters

heightType heighttype

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetHeightValue ( double heightValue )

Sets the height value
Created in NX7.5.0.

License requirements : None

Parameters

heightValue heightvalue

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetInnerDiameterType ( NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions innerDiameterType )

Sets the inner diameter enum
Created in NX7.5.0.

License requirements : None

Parameters

innerDiameterType innerdiametertype

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetInnerDiameterValue ( double innerDiameterValue )

Sets the inner diameter value
Created in NX7.5.0.

License requirements : None

Parameters

innerDiameterValue innerdiametervalue

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetOuterDiameterType ( NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions outerDiameterType )

Sets the outer diameter enum
Created in NX7.5.0.

License requirements : None

Parameters

outerDiameterType outerdiametertype

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetOuterDiameterValue ( double outerDiameterValue )

Sets the outer diameter value
Created in NX7.5.0.

License requirements : None

Parameters

outerDiameterValue outerdiametervalue

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetText ( const NXString & text )

Sets the text
Created in NX7.5.0.

License requirements : None

Parameters

text text

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetText ( const char * text )

Sets the text
Created in NX7.5.0.

License requirements : None

Parameters

text text

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetTextType ( NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions textType )

Sets the text enum
Created in NX7.5.0.

License requirements : None

Parameters

textType texttype

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetWidthType ( NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions widthType )

Sets the width enum
Created in NX7.5.0.

License requirements : None

Parameters

widthType widthtype

void NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::SetWidthValue ( double widthValue )

Sets the width value
Created in NX7.5.0.

License requirements : None

Parameters

widthValue widthvalue

NXString NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::Text ( )

Returns the text
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchModelViewBuilder::TextComparisionOptions NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::TextType ( )

Returns the text enum
Created in NX7.5.0.

License requirements : None

NXOpen::Annotations::SearchModelViewBuilder::ValueComparisionOptions NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::WidthType ( )

Returns the width enum
Created in NX7.5.0.

License requirements : None

double NXOpen::Annotations::SearchCriteriaDatumTargetBuilder::WidthValue ( )

Returns the width value
Created in NX7.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Annotations_SearchCriteriaDatumTargetBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
