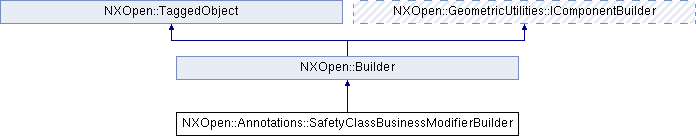

Inheritance diagram for NXOpen::Annotations::SafetyClassBusinessModifierBuilder:

Public Member Functions
NXString	SafetyClass ()
	Returns the safety class Created in NX6.0.0.

void	SetSafetyClass (const NXString &safetyClass)
	Sets the safety class Created in NX6.0.0.

void	SetSafetyClass (const char *safetyClass)
	Sets the safety class Created in NX6.0.0.

void	SetTitle (const NXString &title)
	Sets the str title Created in NX6.0.0.

void	SetTitle (const char *title)
	Sets the str title Created in NX6.0.0.

NXString	Title ()
	Returns the str title Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Member Function Documentation

NXString NXOpen::Annotations::SafetyClassBusinessModifierBuilder::SafetyClass ( )

Returns the safety class
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::SafetyClassBusinessModifierBuilder::SetSafetyClass ( const NXString & safetyClass )

Sets the safety class
Created in NX6.0.0.

License requirements : geometric_tol ("GDT")

Parameters

safetyClass safetyclass

void NXOpen::Annotations::SafetyClassBusinessModifierBuilder::SetSafetyClass ( const char * safetyClass )

Sets the safety class
Created in NX6.0.0.

License requirements : geometric_tol ("GDT")

Parameters

safetyClass safetyclass

void NXOpen::Annotations::SafetyClassBusinessModifierBuilder::SetTitle ( const NXString & title )

Sets the str title
Created in NX6.0.0.

License requirements : geometric_tol ("GDT")

Parameters

title title

void NXOpen::Annotations::SafetyClassBusinessModifierBuilder::SetTitle ( const char * title )

Sets the str title
Created in NX6.0.0.

License requirements : geometric_tol ("GDT")

Parameters

title title

NXString NXOpen::Annotations::SafetyClassBusinessModifierBuilder::Title ( )

Returns the str title
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:
