NXOpen::Annotations::RectangularTarget Class Reference

Represents a rectangular datum target
To create or edit an instance of this class, use Annotations::PmiDatumTargetBuilder

Created in NX4.0.0. More...

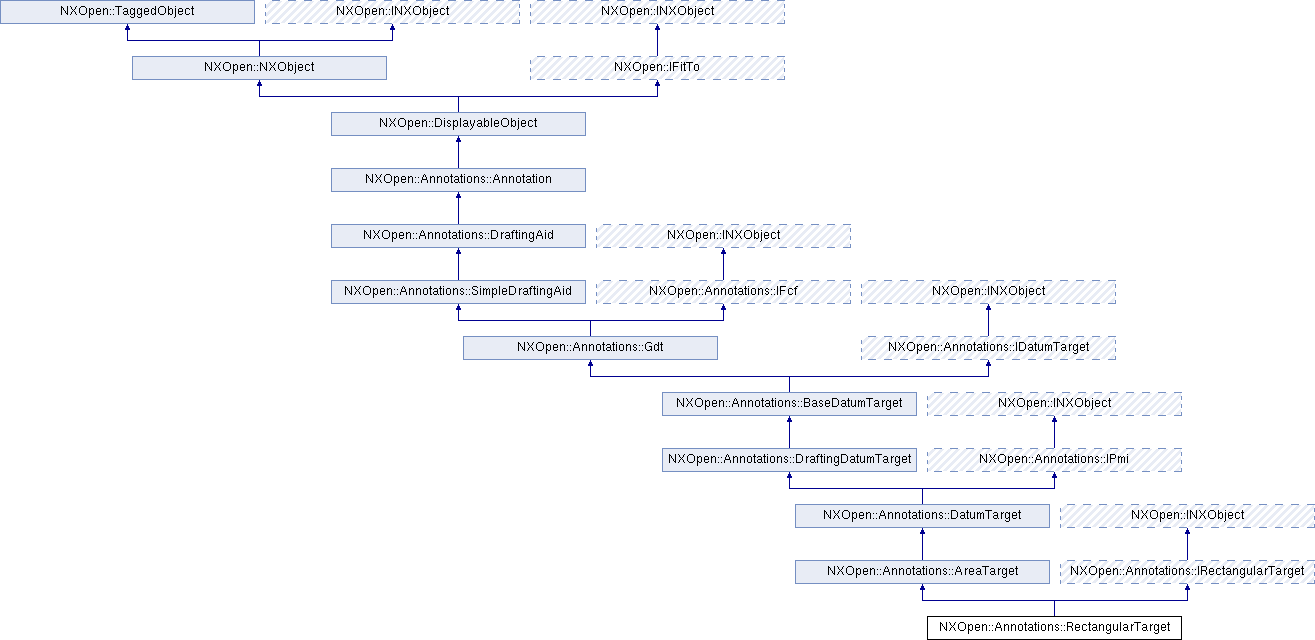

Inheritance diagram for NXOpen::Annotations::RectangularTarget:

Public Member Functions
virtual NXOpen::Annotations::Value	GetLength ()
	Returns the target length.
virtual NXOpen::Annotations::Value	GetWidth ()
	Returns the target width.
virtual void	SetLength (const NXOpen::Annotations::Value &length)
	Sets the target length.
virtual void	SetWidth (const NXOpen::Annotations::Value &width)
	Sets the target width.

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline,   ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...
enum	ObjectWidth {   ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5,   ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive,   ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...

Detailed Description

Represents a rectangular datum target
To create or edit an instance of this class, use Annotations::PmiDatumTargetBuilder

Created in NX4.0.0.

Member Function Documentation

virtual NXOpen::Annotations::Value NXOpen::Annotations::RectangularTarget::GetLength ( )

virtual

Returns the target length.

Returns

Length data
Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::IRectangularTarget.

virtual NXOpen::Annotations::Value NXOpen::Annotations::RectangularTarget::GetWidth ( )

virtual

Returns the target width.

Returns

Width data
Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::IRectangularTarget.

virtual void NXOpen::Annotations::RectangularTarget::SetLength ( const NXOpen::Annotations::Value &  length )

virtual

Sets the target length.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

length

New length data

Implements NXOpen::Annotations::IRectangularTarget.

virtual void NXOpen::Annotations::RectangularTarget::SetWidth ( const NXOpen::Annotations::Value &  width )

virtual

Sets the target width.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

width

New width data

Implements NXOpen::Annotations::IRectangularTarget.

---

The documentation for this class was generated from the following file:

• Annotations_RectangularTarget.hxx
