NXOpen::Annotations::PmiFeatureControlFrameBuilder Class Reference

Represents a Annotations::PmiFeatureControlFrameBuilder
To create a new instance of this class, use Annotations::AnnotationManager::CreatePmiFeatureControlFrameBuilder

Created in NX6.0.0. More...

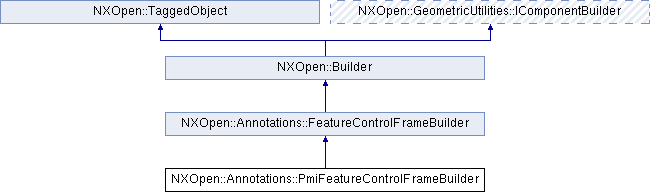

Inheritance diagram for NXOpen::Annotations::PmiFeatureControlFrameBuilder:

Public Member Functions
NXOpen::Annotations::AssociatedObjectsBuilder *	AssociatedObjects ()
	Returns the associated objects builder for the annotation Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Annotations::FeatureControlFrameBuilder
NXOpen::Annotations::FeatureControlFrameBuilder::FcfCharacteristic	Characteristic ()
	Returns the characteristic Created in NX6.0.0.
void	FeatureControlFrameData (std::vector< NXOpen::Annotations::FeatureControlFrameDataBuilder * > &featureControlFrameDataBuilders)
	The feature control frame data list Created in NX6.0.0.
NXOpen::Annotations::FeatureControlFrameDataBuilderList *	FeatureControlFrameDataList ()
	Returns the feature control frame data list Created in NX6.0.0.
NXOpen::Annotations::FeatureControlFrameBuilder::FcfFrameStyle	FrameStyle ()
	Returns the frame style Created in NX6.0.0.
void	InheritFrom (NXOpen::Annotations::BaseFcf *inheritTag)
	The feature control frame is inherited form existing feature control frame.
NXOpen::Annotations::LeaderBuilder *	Leader ()
	Returns the Annotations::LeaderBuilder for the annotation Created in NX6.0.0.
NXOpen::Annotations::OriginBuilder *	Origin ()
	Returns the Annotations::OriginBuilder for the annotation Created in NX6.0.0.
void	SetCharacteristic (NXOpen::Annotations::FeatureControlFrameBuilder::FcfCharacteristic characteristic)
	Sets the characteristic Created in NX6.0.0.
void	SetFrameStyle (NXOpen::Annotations::FeatureControlFrameBuilder::FcfFrameStyle frameStyle)
	Sets the frame style Created in NX6.0.0.
NXOpen::Annotations::StyleBuilder *	Style ()
	Returns the style Created in NX6.0.0.
NXOpen::Annotations::TextWithSymbolsBuilder *	Text ()
	Returns the text Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::Annotations::FeatureControlFrameBuilder
enum	FcfCharacteristic {   FcfCharacteristicStraightness, FcfCharacteristicFlatness, FcfCharacteristicCircularity, FcfCharacteristicCylindricity,   FcfCharacteristicProfileOfALine, FcfCharacteristicProfileOfASurface, FcfCharacteristicAngularity, FcfCharacteristicPerpendicularity,   FcfCharacteristicParallelism, FcfCharacteristicPosition, FcfCharacteristicConcentricity, FcfCharacteristicSymmetry,   FcfCharacteristicCircularRunout, FcfCharacteristicTotalRunout, FcfCharacteristicAxisIntersection }
	Specifies the characteristitic of the feature control frame. More...
enum	FcfFrameStyle { FcfFrameStyleSingleFrame, FcfFrameStyleCompositeFrame }
	Specifies whether the feature control frame is a single frame or composite. More...

Detailed Description

Represents a Annotations::PmiFeatureControlFrameBuilder
To create a new instance of this class, use Annotations::AnnotationManager::CreatePmiFeatureControlFrameBuilder

Created in NX6.0.0.

Member Function Documentation

NXOpen::Annotations::AssociatedObjectsBuilder* NXOpen::Annotations::PmiFeatureControlFrameBuilder::AssociatedObjects

(

)

Returns the associated objects builder for the annotation
Created in NX6.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Annotations_PmiFeatureControlFrameBuilder.hxx
