NXOpen::Annotations::IntersectionSymbolBuilder Class Reference

Represents a @link Annotations::IntersectionSymbol Annotations::IntersectionSymbol@endlink  builder  <br> To create a new instance of this class, use @link Annotations::IntersectionSymbolCollection::CreateIntersectionSymbolBuilder  Annotations::IntersectionSymbolCollection::CreateIntersectionSymbolBuilder @endlink  <br>

Default values. More...

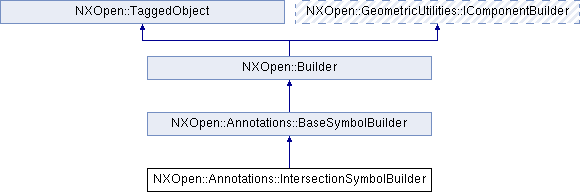

Inheritance diagram for NXOpen::Annotations::IntersectionSymbolBuilder:

Public Types
enum	Thickness {   ThicknessThin, ThicknessNormal, ThicknessThick, ThicknessOne = 6,   ThicknessTwo, ThicknessThree, ThicknessFour, ThicknessFive,   ThicknessSix, ThicknessSeven, ThicknessEight, ThicknessNine }
	the types of intersection symbol thickness More...

Public Member Functions
NXOpen::NXColor *	Color ()
	Returns the color Created in NX6.0.0.
double	Extension ()
	Returns the extension Created in NX6.0.0.
NXOpen::SelectNXObject *	Inherit ()
	Returns the inherit Created in NX6.0.0.
NXOpen::SelectNXObject *	IntersectionObject1 ()
	Returns the intersection object1 Created in NX6.0.0.
NXOpen::SelectNXObject *	IntersectionObject2 ()
	Returns the intersection object2 Created in NX6.0.0.
void	SetColor (NXOpen::NXColor *color)
	Sets the color Created in NX6.0.0.
void	SetExtension (double extension)
	Sets the extension Created in NX6.0.0.
void	SetWidth (NXOpen::Annotations::IntersectionSymbolBuilder::Thickness width)
	Sets the width Created in NX6.0.0.
NXOpen::Annotations::IntersectionSymbolBuilder::Thickness	Width ()
	Returns the width Created in NX6.0.0.

Detailed Description

Represents a @link Annotations::IntersectionSymbol Annotations::IntersectionSymbol@endlink  builder  <br> To create a new instance of this class, use @link Annotations::IntersectionSymbolCollection::CreateIntersectionSymbolBuilder  Annotations::IntersectionSymbolCollection::CreateIntersectionSymbolBuilder @endlink  <br>

Default values.

Property	Value
Extension	3
Width	Thin

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Annotations::IntersectionSymbolBuilder::Thickness

the types of intersection symbol thickness

Enumerator:

ThicknessThin	Thin.
ThicknessNormal	Normal.
ThicknessThick	Thick.
ThicknessTwo	Width Two.
ThicknessThree	Width Three.
ThicknessFour	Width Four.
ThicknessFive	Width Five.
ThicknessSix	Width Six.
ThicknessSeven	Width Seven.
ThicknessEight	Width Eight.
ThicknessNine	Width Nine.

Member Function Documentation

NXOpen::NXColor* NXOpen::Annotations::IntersectionSymbolBuilder::Color

(

)

Returns the color
Created in NX6.0.0.

License requirements : None

double NXOpen::Annotations::IntersectionSymbolBuilder::Extension

(

)

Returns the extension
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Annotations::IntersectionSymbolBuilder::Inherit

(

)

Returns the inherit
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Annotations::IntersectionSymbolBuilder::IntersectionObject1

(

)

Returns the intersection object1
Created in NX6.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Annotations::IntersectionSymbolBuilder::IntersectionObject2

(

)

Returns the intersection object2
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::IntersectionSymbolBuilder::SetColor

(

NXOpen::NXColor *

color

)

Sets the color
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

color

color

void NXOpen::Annotations::IntersectionSymbolBuilder::SetExtension

(

double

extension

)

Sets the extension
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

extension

extension

void NXOpen::Annotations::IntersectionSymbolBuilder::SetWidth

(

NXOpen::Annotations::IntersectionSymbolBuilder::Thickness

width

)

Sets the width
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

width

width

NXOpen::Annotations::IntersectionSymbolBuilder::Thickness NXOpen::Annotations::IntersectionSymbolBuilder::Width

(

)

Returns the width
Created in NX6.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Annotations_IntersectionSymbolBuilder.hxx
