NXOpen::Annotations::IFcf Class Reference

Represents interface class for a feature control frame
Created in NX4.0.0. More...

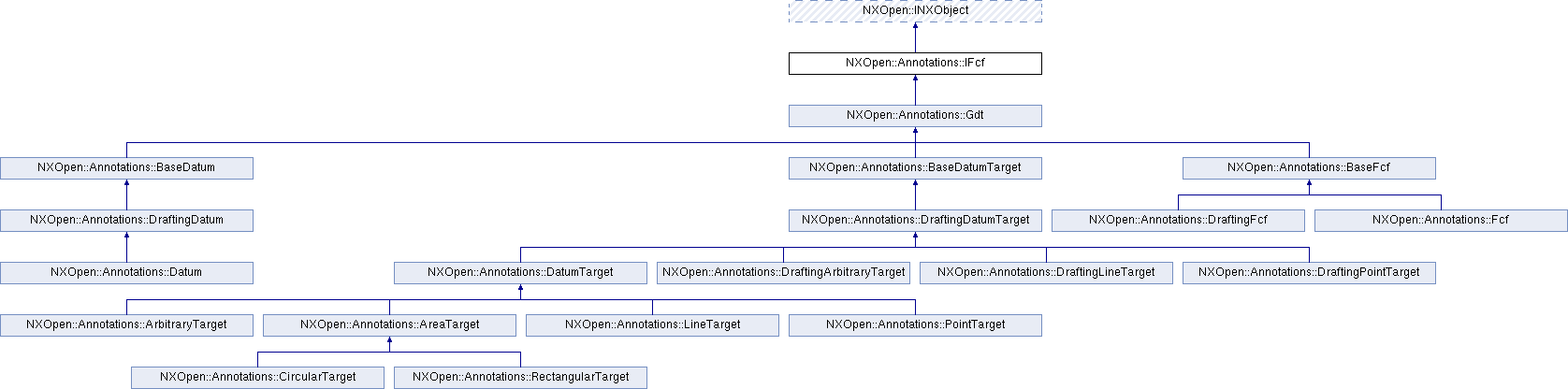

Inheritance diagram for NXOpen::Annotations::IFcf:

Public Member Functions
virtual NXOpen::Annotations::FcfFrameData *	GetFcfFrameData ()=0
	Returns the single FCF frames data.
virtual std::vector < NXOpen::Annotations::FcfFrameData * >	GetFcfFrameDataArray ()=0
	Returns the multiple FCF frames data.
virtual void	SetFcfFrameData (NXOpen::Annotations::FcfFrameData *data)=0
	Sets the single FCF frames data.
virtual void	SetFcfFrameData (const std::vector< NXOpen::Annotations::FcfFrameData * > &fcfFrameData)=0
	Sets the multiple FCF frames data.
Public Member Functions inherited from NXOpen::INXObject
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)=0
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
virtual bool	IsOccurrence ()=0
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()=0
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()=0
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()=0
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()=0
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()=0
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()=0
	Returns the prototype of this object if it is an occurrence.
virtual void	SetName (const NXString &name)=0
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents interface class for a feature control frame
Created in NX4.0.0.

Member Function Documentation

virtual NXOpen::Annotations::FcfFrameData* NXOpen::Annotations::IFcf::GetFcfFrameData ( )

pure virtual

Returns the single FCF frames data.

Returns

FCF frame data
Created in NX4.0.0.

License requirements : None

Implemented in NXOpen::Annotations::Gdt.

virtual std::vector<NXOpen::Annotations::FcfFrameData *> NXOpen::Annotations::IFcf::GetFcfFrameDataArray ( )

pure virtual

Returns the multiple FCF frames data.

Returns

FCF frame datas
Created in NX5.0.0.

License requirements : None

Implemented in NXOpen::Annotations::Gdt.

virtual void NXOpen::Annotations::IFcf::SetFcfFrameData ( NXOpen::Annotations::FcfFrameData *  data )

pure virtual

Sets the single FCF frames data.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

data	FCF frame data

Implemented in NXOpen::Annotations::Gdt.

virtual void NXOpen::Annotations::IFcf::SetFcfFrameData ( const std::vector< NXOpen::Annotations::FcfFrameData * > &  fcfFrameData )

pure virtual

Sets the multiple FCF frames data.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX5.0.0.

License requirements : geometric_tol ("GDT")

Parameters

fcfFrameData

FCF frame datas

Implemented in NXOpen::Annotations::Gdt.

---

The documentation for this class was generated from the following file:

• Annotations_IFcf.hxx
