NXOpen::Annotations::GeneralCustomSymbol Class Reference

Represents a general custom symbol
Created in NX7.0.0. More...

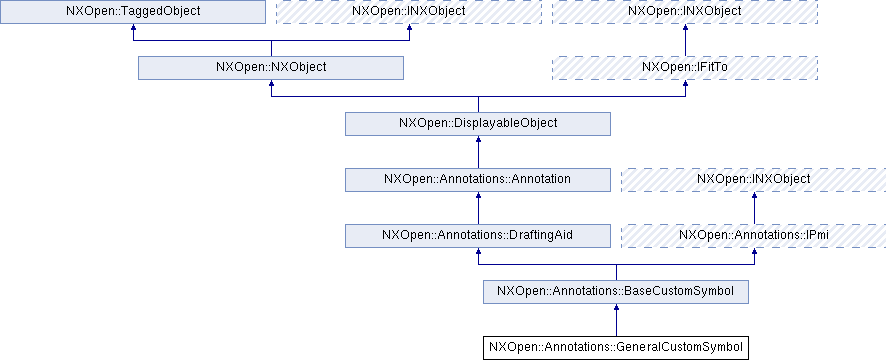

Inheritance diagram for NXOpen::Annotations::GeneralCustomSymbol:

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline,   ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...
enum	ObjectWidth {   ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5,   ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive,   ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...
Public Member Functions inherited from NXOpen::Annotations::BaseCustomSymbol
void	AddLeader (NXOpen::Annotations::LeaderBundle *leader)
	Adds leaders to the custom symbol.
void	FlipSymbol (NXOpen::Annotations::FlipOption flipOption)
	Flips the custom symbol horizontally/vertically.
NXOpen::Point *	GetAnchor ()
	Returns the master custom symbol anchor point.
virtual NXOpen::Annotations::AssociatedObject *	GetAssociatedObject ()
	Returns the associated object.
virtual std::vector < NXOpen::Annotations::BusinessModifier * >	GetBusinessModifiers ()
	Returns the business modifiers.
virtual NXOpen::Annotations::AssociatedObject *	GetSharedAssociatedObject ()
	Returns the shared associated objects.
NXOpen::Annotations::CustomSymbolData *	GetSymbolData ()
	Returns the custom symbol data.
virtual int	Index ()
	Returns the index.
virtual bool	IsMirrored ()
	Returns a flag indicating whether the annotation is mirrored Created in NX8.5.0.
void	RemoveLeader (int nthLeader)
	Removes leader from the custom symbol.
void	ReplaceSymbol (const NXString &name, const NXString &path, bool isPartSymbol)
	Replace custom symbol with the given master symbol name and path.
void	ReplaceSymbol (const char *name, const char *path, bool isPartSymbol)
	Replace custom symbol with the given master symbol name and path.
void	SetAnchor (NXOpen::Point *anchorPoint)
	Sets the master custom symbol anchor point.
virtual void	SetAssociatedObject (NXOpen::Annotations::AssociatedObject *assocObj)
	Sets the associated object.
virtual void	SetBusinessModifiers (const std::vector< NXOpen::Annotations::BusinessModifier * > &businessModifiers)
	Sets the business modifiers.
virtual void	SetIndex (int index)
	Sets the index.
void	SetSymbolData (NXOpen::Annotations::CustomSymbolData *data)
	Sets the custom symbol data.
NXString	SymbolName ()
	Returns the symbol name.
void	SynchronizeSymbol ()
	Synchronize associative custom symbol.
void	UpdateFromRule ()
	Updates the specified symbol from the KF rule.
void	UpdateSymbolGeometry (const NXOpen::Point3d &origin, double scale, double angle)
	Sets the origin, scale and angle for a custom symbol instance and updates the leaders (if any) as needed.

Detailed Description

Represents a general custom symbol
Created in NX7.0.0.

---

The documentation for this class was generated from the following file:

• Annotations_GeneralCustomSymbol.hxx
