Represents a Annotations::FrameBarBuilder . More...

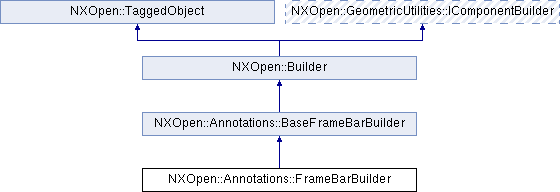

Inheritance diagram for NXOpen::Annotations::FrameBarBuilder:
Additional Inherited Members | |
 Public Types inherited from NXOpen::Annotations::BaseFrameBarBuilder | |
| enum | AxisType { AxisTypeX, AxisTypeY, AxisTypeZ } |
| Enum for Ship Axis This is used by Annotations::BaseFrameBarBuilder::Axis and Annotations::BaseFrameBarBuilder::SetAxis to get/set the axis for a frame bar. More... | |
| Public Member Functions inherited from NXOpen::Annotations::BaseFrameBarBuilder | |
| bool | AftPerpendicular () |
| Returns the aft perpendicular Created in NX8.0.0. | |
| NXOpen::Annotations::BaseFrameBarBuilder::AxisType | Axis () |
| Returns the axis Created in NX8.0.0. | |
| bool | Baseline () |
| Returns the baseline Created in NX8.0.0. | |
| bool | BulkHeads () |
| Returns the bulk heads Created in NX8.0.0. | |
| bool | Centerline () |
| Returns the centerline Created in NX8.0.0. | |
| void | CreateFrameBarObject () |
| Creates frame bar object Created in NX8.0.0. | |
| bool | Decks () |
| Returns the decks Created in NX8.0.0. | |
| bool | ForwardPerpendicular () |
| Returns the forward perpendicular Created in NX8.0.0. | |
| NXOpen::Annotations::BaseFrameBar * | GetFramebar () |
| The frame bar. | |
| bool | InterTransverseFrames () |
| Returns the inter transverse frames Created in NX8.0.0. | |
| bool | LongitudinalYFrames () |
| Returns the longitudinal yframes Created in NX8.0.0. | |
| bool | LongitudinalZFrames () |
| Returns the longitudinal zframes Created in NX8.0.0. | |
| NXOpen::Annotations::OriginBuilder * | Origin () |
| Returns the origin Created in NX8.0.0. | |
| void | ReverseTics () |
| This function is used to reverse tics on the framebar Created in NX8.0.0. | |
| void | SetAftPerpendicular (bool aftPerpendicular) |
| Sets the aft perpendicular Created in NX8.0.0. | |
| void | SetAxis (NXOpen::Annotations::BaseFrameBarBuilder::AxisType axis) |
| Sets the axis Created in NX8.0.0. | |
| void | SetBaseline (bool baseline) |
| Sets the baseline Created in NX8.0.0. | |
| void | SetBulkHeads (bool bulkHeads) |
| Sets the bulk heads Created in NX8.0.0. | |
| void | SetCenterline (bool centerline) |
| Sets the centerline Created in NX8.0.0. | |
| void | SetDecks (bool decks) |
| Sets the decks Created in NX8.0.0. | |
| void | SetForwardPerpendicular (bool forwardPerpendicular) |
| Sets the forward perpendicular Created in NX8.0.0. | |
| void | SetInterTransverseFrames (bool interTransverseFrames) |
| Sets the inter transverse frames Created in NX8.0.0. | |
| void | SetLongitudinalYFrames (bool longitudinalYFrames) |
| Sets the longitudinal yframes Created in NX8.0.0. | |
| void | SetLongitudinalZFrames (bool longitudinalZFrames) |
| Sets the longitudinal zframes Created in NX8.0.0. | |
| void | SetTransveralInsertArea (bool transveralInsertArea) |
| Sets the transveral insert area Created in NX8.0.0. | |
| void | SetTransverseFrames (bool transverseFrames) |
| Sets the transverse frames Created in NX8.0.0. | |
| void | SetWaterline (bool waterline) |
| Sets the waterline Created in NX8.0.0. | |
| NXOpen::Annotations::StyleBuilder * | Style () |
| Returns the style Created in NX8.0.0. | |
| bool | TransveralInsertArea () |
| Returns the transveral insert area Created in NX8.0.0. | |
| bool | TransverseFrames () |
| Returns the transverse frames Created in NX8.0.0. | |
| void | UpdateFrameBarFromStyle () |
| Updates frame bar object as per style Created in NX8.0.0. | |
| void | UpdateFromConceptModel () |
| This function is used to update framebar from Concept model Created in NX8.0.0. | |
| NXOpen::Drawings::SelectDraftingView * | View () |
| Returns the select view Created in NX8.0.0. | |
| bool | Waterline () |
| Returns the waterline Created in NX8.0.0. | |
Detailed Description
Represents a Annotations::FrameBarBuilder .
This class allows to create frame bar annotation <br> To create a new instance of this class, use @link Annotations::FrameBarCollection::CreateFrameBarBuilder Annotations::FrameBarCollection::CreateFrameBarBuilder @endlink <br>
Default values.
| Property | Value |
|---|---|
|
AftPerpendicular |
0 |
|
X | |
|
Baseline |
0 |
|
BulkHeads |
0 |
|
0 | |
|
Decks |
0 |
|
ForwardPerpendicular |
0 |
|
InterTransverseFrames |
0 |
|
LongitudinalYFrames |
0 |
|
LongitudinalZFrames |
0 |
|
TransveralInsertArea |
0 |
|
TransverseFrames |
0 |
|
Waterline |
0 |
Created in NX8.0.0.
The documentation for this class was generated from the following file:
- Annotations_FrameBarBuilder.hxx
