NXOpen::Annotations::DraftingFeatureControlFrameBuilder Class Reference

Represents a @link Annotations::DraftingFeatureControlFrameBuilder Annotations::DraftingFeatureControlFrameBuilder@endlink
 <br> To create a new instance of this class, use @link Annotations::AnnotationManager::CreateDraftingFeatureControlFrameBuilder  Annotations::AnnotationManager::CreateDraftingFeatureControlFrameBuilder @endlink  <br>

Default values. More...

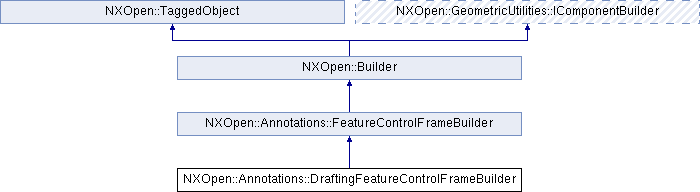

Inheritance diagram for NXOpen::Annotations::DraftingFeatureControlFrameBuilder:

Additional Inherited Members
Public Types inherited from NXOpen::Annotations::FeatureControlFrameBuilder
enum	FcfCharacteristic {   FcfCharacteristicStraightness, FcfCharacteristicFlatness, FcfCharacteristicCircularity, FcfCharacteristicCylindricity,   FcfCharacteristicProfileOfALine, FcfCharacteristicProfileOfASurface, FcfCharacteristicAngularity, FcfCharacteristicPerpendicularity,   FcfCharacteristicParallelism, FcfCharacteristicPosition, FcfCharacteristicConcentricity, FcfCharacteristicSymmetry,   FcfCharacteristicCircularRunout, FcfCharacteristicTotalRunout, FcfCharacteristicAxisIntersection }
	Specifies the characteristitic of the feature control frame. More...
enum	FcfFrameStyle { FcfFrameStyleSingleFrame, FcfFrameStyleCompositeFrame }
	Specifies whether the feature control frame is a single frame or composite. More...
Public Member Functions inherited from NXOpen::Annotations::FeatureControlFrameBuilder
NXOpen::Annotations::FeatureControlFrameBuilder::FcfCharacteristic	Characteristic ()
	Returns the characteristic Created in NX6.0.0.
void	FeatureControlFrameData (std::vector< NXOpen::Annotations::FeatureControlFrameDataBuilder * > &featureControlFrameDataBuilders)
	The feature control frame data list Created in NX6.0.0.
NXOpen::Annotations::FeatureControlFrameDataBuilderList *	FeatureControlFrameDataList ()
	Returns the feature control frame data list Created in NX6.0.0.
NXOpen::Annotations::FeatureControlFrameBuilder::FcfFrameStyle	FrameStyle ()
	Returns the frame style Created in NX6.0.0.
void	InheritFrom (NXOpen::Annotations::BaseFcf *inheritTag)
	The feature control frame is inherited form existing feature control frame.
NXOpen::Annotations::LeaderBuilder *	Leader ()
	Returns the Annotations::LeaderBuilder for the annotation Created in NX6.0.0.
NXOpen::Annotations::OriginBuilder *	Origin ()
	Returns the Annotations::OriginBuilder for the annotation Created in NX6.0.0.
void	SetCharacteristic (NXOpen::Annotations::FeatureControlFrameBuilder::FcfCharacteristic characteristic)
	Sets the characteristic Created in NX6.0.0.
void	SetFrameStyle (NXOpen::Annotations::FeatureControlFrameBuilder::FcfFrameStyle frameStyle)
	Sets the frame style Created in NX6.0.0.
NXOpen::Annotations::StyleBuilder *	Style ()
	Returns the style Created in NX6.0.0.
NXOpen::Annotations::TextWithSymbolsBuilder *	Text ()
	Returns the text Created in NX6.0.0.

Detailed Description

Represents a @link Annotations::DraftingFeatureControlFrameBuilder Annotations::DraftingFeatureControlFrameBuilder@endlink
 <br> To create a new instance of this class, use @link Annotations::AnnotationManager::CreateDraftingFeatureControlFrameBuilder  Annotations::AnnotationManager::CreateDraftingFeatureControlFrameBuilder @endlink  <br>

Default values.

Property	Value
Characteristic	Straightness
FrameStyle	SingleFrame

Created in NX6.0.0.

---

The documentation for this class was generated from the following file:

• Annotations_DraftingFeatureControlFrameBuilder.hxx
