Represents a Annotations::CompanyProprietaryInformation builder
To create a new instance of this class, use Annotations::PmiAttributeCollection::CreateCompanyProprietaryInformationBuilder
Created in NX6.0.0.
More...

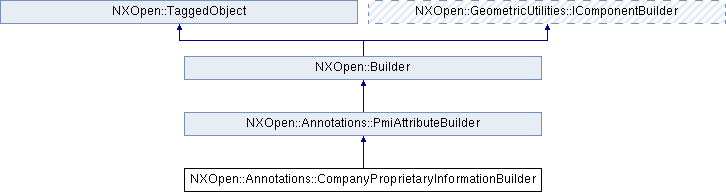

Inheritance diagram for NXOpen::Annotations::CompanyProprietaryInformationBuilder:
Public Member Functions | |
| std::vector< NXString > | GetStringText () |
| Returns the str text. | |
| NXString | Identifier () |
| Returns the identifier Created in NX6.0.0. | |
| void | SetIdentifier (const NXString &identifier) |
| Sets the identifier Created in NX6.0.0. | |
| void | SetIdentifier (const char *identifier) |
| Sets the identifier Created in NX6.0.0. | |
| void | SetStringText (const std::vector< NXString > &stringText) |
| Sets the str text Created in NX6.0.0. | |
| void | SetTitle (const NXString &title) |
| Sets the str title Created in NX6.0.0. | |
| void | SetTitle (const char *title) |
| Sets the str title Created in NX6.0.0. | |
| NXString | Title () |
| Returns the str title Created in NX6.0.0. | |
 Public Member Functions inherited from NXOpen::Annotations::PmiAttributeBuilder | |
| NXOpen::Annotations::AssociatedObjectsBuilder * | AssociatedObjects () |
| Returns the Annotations::AssociatedObjectsBuilder for the annotation Created in NX6.0.0. | |
| NXOpen::Annotations::Pmi * | Attribute () |
| Returns the Annotations::Pmi for this annotation Created in NX6.0.0. | |
| NXOpen::NXObject * | BusinessModifier () |
| Returns the business modifier Created in NX6.0.0. | |
| std::vector< NXOpen::NXObject * > | GetAttributeValues () |
| Returns the attribute values. | |
| NXString | KnowledgeFusionClassName () |
| Returns the knowledge fusion class name file, the default class is UG provided pmi KF class Created in NX6.0.0. | |
| NXOpen::Annotations::LeaderBuilder * | Leader () |
| Returns the Annotations::LeaderBuilder for the annotation Created in NX6.0.0. | |
| NXOpen::Annotations::OriginBuilder * | Origin () |
| Returns the Annotations::OriginBuilder for the annotation Created in NX6.0.0. | |
| void | SetAttribute (NXOpen::Annotations::Pmi *attribute) |
| Sets the Annotations::Pmi for this annotation Created in NX6.0.0. | |
| void | SetAttributeValues (const std::vector< NXOpen::NXObject * > &attributeValues) |
| Sets the attribute values Created in NX6.0.0. | |
| void | SetBusinessModifier (NXOpen::NXObject *businessModifier) |
| Sets the business modifier Created in NX6.0.0. | |
| void | SetKnowledgeFusionClassName (const NXString &knowledgeFusionClassName) |
| Sets the knowledge fusion class name file, the default class is UG provided pmi KF class Created in NX6.0.0. | |
| void | SetKnowledgeFusionClassName (const char *knowledgeFusionClassName) |
| Sets the knowledge fusion class name file, the default class is UG provided pmi KF class Created in NX6.0.0. | |
| NXOpen::Annotations::StyleBuilder * | Style () |
| Returns the Annotations::StyleBuilder for the annotation Created in NX6.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a Annotations::CompanyProprietaryInformation builder
To create a new instance of this class, use Annotations::PmiAttributeCollection::CreateCompanyProprietaryInformationBuilder
Created in NX6.0.0.
Member Function Documentation
| std::vector<NXString> NXOpen::Annotations::CompanyProprietaryInformationBuilder::GetStringText | ( | ) |
Returns the str text.
- Returns
Created in NX6.0.0.
License requirements : None
| NXString NXOpen::Annotations::CompanyProprietaryInformationBuilder::Identifier | ( | ) |
Returns the identifier
Created in NX6.0.0.
License requirements : None
| void NXOpen::Annotations::CompanyProprietaryInformationBuilder::SetIdentifier | ( | const NXString & | identifier | ) |
Sets the identifier
Created in NX6.0.0.
License requirements : None
- Parameters
-
identifier identifier
| void NXOpen::Annotations::CompanyProprietaryInformationBuilder::SetIdentifier | ( | const char * | identifier | ) |
Sets the identifier
Created in NX6.0.0.
License requirements : None
- Parameters
-
identifier identifier
| void NXOpen::Annotations::CompanyProprietaryInformationBuilder::SetStringText | ( | const std::vector< NXString > & | stringText | ) |
Sets the str text
Created in NX6.0.0.
License requirements : None
- Parameters
-
stringText stringtext
| void NXOpen::Annotations::CompanyProprietaryInformationBuilder::SetTitle | ( | const NXString & | title | ) |
Sets the str title
Created in NX6.0.0.
License requirements : None
- Parameters
-
title title
| void NXOpen::Annotations::CompanyProprietaryInformationBuilder::SetTitle | ( | const char * | title | ) |
Sets the str title
Created in NX6.0.0.
License requirements : None
- Parameters
-
title title
| NXString NXOpen::Annotations::CompanyProprietaryInformationBuilder::Title | ( | ) |
Returns the str title
Created in NX6.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- Annotations_CompanyProprietaryInformationBuilder.hxx
