Represents a CircularCenterlineBuilder Builder <br> To create a new instance of this class, use @link Annotations::CenterlineCollection::CreateCircularCenterlineBuilder Annotations::CenterlineCollection::CreateCircularCenterlineBuilder @endlink <br>
Default values. More...

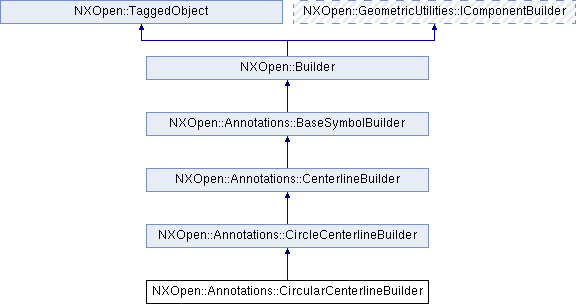

Inheritance diagram for NXOpen::Annotations::CircularCenterlineBuilder:
Additional Inherited Members | |
 Public Types inherited from NXOpen::Annotations::CircleCenterlineBuilder | |
| enum | Types { TypesThrough3Points, TypesCenterpoint } |
| the valid enumeration used for the creation types, applicable only while creation Once created type centerpoint will be set for all bolt circle/circular centerline More... | |
| Public Member Functions inherited from NXOpen::Annotations::CircleCenterlineBuilder | |
| bool | FullCircle () |
| Returns the method which returns full or partial circle flag Created in NX6.0.0. | |
| NXOpen::SelectNXObject * | Inherit () |
| Returns the inherit object Created in NX6.0.0. | |
| NXOpen::SelectNXObjectList * | Locations () |
| Returns the selction object of the centerline Created in NX6.0.0. | |
| void | RemoveLocation (int index) |
| Removes location object for a given index from the Select Object List. | |
| void | SetFullCircle (bool fullType) |
| Sets the method which returns full or partial circle flag Created in NX6.0.0. | |
| NXOpen::Annotations::CircleCenterlineSettingsBuilder * | Settings () |
| Returns the settings builder object for the centerline Created in NX6.0.0. | |
| void | SetType (NXOpen::Annotations::CircleCenterlineBuilder::Types method) |
| Sets the method which returns type of centerline Created in NX6.0.0. | |
| NXOpen::Annotations::CircleCenterlineBuilder::Types | Type () |
| Returns the method which returns type of centerline Created in NX6.0.0. | |
Detailed Description
Represents a CircularCenterlineBuilder Builder <br> To create a new instance of this class, use @link Annotations::CenterlineCollection::CreateCircularCenterlineBuilder Annotations::CenterlineCollection::CreateCircularCenterlineBuilder @endlink <br>
Default values.
| Property | Value |
|---|---|
|
FullCircle |
true |
|
Type |
Through3Points |
Created in NX6.0.0.
The documentation for this class was generated from the following file:
- Annotations_CircularCenterlineBuilder.hxx
