NXOpen::Annotations::CenterMarkBuilder Class Reference

Builder for creating Center Mark. More...

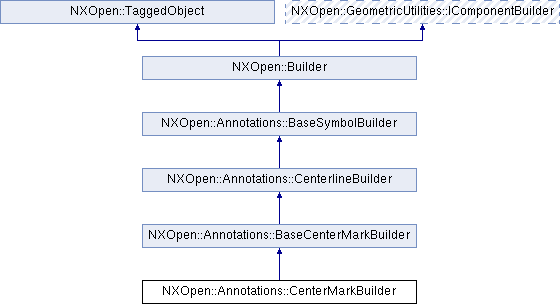

Inheritance diagram for NXOpen::Annotations::CenterMarkBuilder:

Public Member Functions
NXOpen::SelectNXObject *	Inherit ()
	Returns the inherit object Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Annotations::BaseCenterMarkBuilder
NXOpen::SelectNXObjectList *	Locations ()
	Returns the location object Created in NX6.0.0.
bool	MultipleCenterMarks ()
	Returns the multiple center marks option, applicable only for creation Created in NX6.0.0.
void	RemoveLocation (int index)
	Removes location object for a given index from the Select Object List.
void	SetMultipleCenterMarks (bool multipleCenterlines)
	Sets the multiple center marks option, applicable only for creation Created in NX6.0.0.
NXOpen::Annotations::CenterMarkSettingsBuilder *	Settings ()
	Returns the center mark settings builder Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Annotations::CenterlineBuilder
void	AddEndExtensions (double start, double end)
	Adds extensions only at ends Created in NX6.0.0.
void	AddExtension (int index, double defaultValue)
	Adds extension based on select object index Created in NX6.0.0.
std::vector< double >	GetAllExtensions ()
	Returns all extensions.
std::vector< double >	GetAllIndividualExtensions ()
	Returns individual extensions.
std::vector< double >	GetEndExtensions ()
	Returns end extensions only.
void	RemoveEndExtensions ()
	Removes extensions only at ends Created in NX6.0.0.
void	RemoveExtension (int index)
	Removes extension based on select object index Created in NX6.0.0.
void	ResetAllExtensions (double defaultValue)
	Reset all extensions by the supplied defaultValue Created in NX6.0.1.
void	SetAllIndividualExtensions (const std::vector< double > &extensionValues)
	Sets all individual extensions Created in NX8.0.1.
void	SetEndExtensions (double start, double end)
	Modifies end extensions only Created in NX6.0.0.
void	SetIndividualExtensions (int index, double value1, double value2)
	Modifies extensions based on select object index Created in NX6.0.0.

Detailed Description

Builder for creating Center Mark.

It creates or edits Center Marks
To create a new instance of this class, use Annotations::CenterlineCollection::CreateCenterMarkBuilder
Default values.

Property	Value
MultipleCenterMarks	false

Created in NX6.0.0.

Member Function Documentation

NXOpen::SelectNXObject* NXOpen::Annotations::CenterMarkBuilder::Inherit

(

)

Returns the inherit object
Created in NX6.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Annotations_CenterMarkBuilder.hxx
