Represents a Annotations::Dimension builder
This is an abstract class and cannot be instantiated. More...

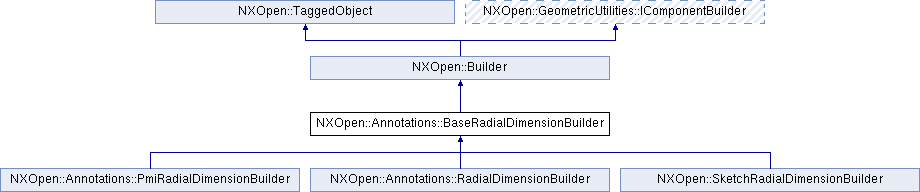

Inheritance diagram for NXOpen::Annotations::BaseRadialDimensionBuilder:

Public Member Functions
NXOpen::Annotations::AppendedTextBuilder *	AppendedText ()
	Returns the appended text Created in NX9.0.0.

NXOpen::SelectNXObject *	FirstAssociativity ()
	Returns the first associativity.

NXOpen::SelectDisplayableObject *	FoldLocation ()
	Returns the fold location Created in NX9.0.0.

NXOpen::SelectDisplayableObject *	Inherit ()
	Returns the inherit Created in NX9.0.0.

bool	IsFoldedRadius ()
	Returns the is folded radius Created in NX9.0.0.

bool	IsHoleStyle ()
	Returns the is hole style dimension Created in NX9.0.0.

bool	IsRadiusToCenter ()
	Returns the is radius to center Created in NX9.0.0.

NXOpen::Annotations::DimensionMeasurementBuilder *	Measurement ()
	Returns the measurement Created in NX9.0.0.

NXOpen::SelectDisplayableObject *	OffsetCenterPoint ()
	Returns the offset center point Created in NX9.0.0.

NXOpen::Annotations::OriginBuilder *	Origin ()
	Returns the origin Created in NX9.0.0.

void	SetFoldedRadius (bool isFoldedRadius)
	Sets the is folded radius Created in NX9.0.0.

void	SetHoleStyle (bool isArrowsOutDia)
	Sets the is hole style dimension Created in NX9.0.0.

void	SetRadiusToCenter (bool isRadiusToCenter)
	Sets the is radius to center Created in NX9.0.0.

NXOpen::Annotations::StyleBuilder *	Style ()
	Returns the style Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Annotations::Dimension builder
This is an abstract class and cannot be instantiated.

Created in NX9.0.0.

Member Function Documentation

NXOpen::Annotations::AppendedTextBuilder* NXOpen::Annotations::BaseRadialDimensionBuilder::AppendedText ( )

Returns the appended text
Created in NX9.0.0.

License requirements : None

NXOpen::SelectNXObject* NXOpen::Annotations::BaseRadialDimensionBuilder::FirstAssociativity ( )

Returns the first associativity.

Supported object types include Feature and DisplayableObject.
Created in NX9.0.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::Annotations::BaseRadialDimensionBuilder::FoldLocation ( )

Returns the fold location
Created in NX9.0.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::Annotations::BaseRadialDimensionBuilder::Inherit ( )

Returns the inherit
Created in NX9.0.0.

License requirements : None

bool NXOpen::Annotations::BaseRadialDimensionBuilder::IsFoldedRadius ( )

Returns the is folded radius
Created in NX9.0.0.

License requirements : None

bool NXOpen::Annotations::BaseRadialDimensionBuilder::IsHoleStyle ( )

Returns the is hole style dimension
Created in NX9.0.0.

License requirements : None

bool NXOpen::Annotations::BaseRadialDimensionBuilder::IsRadiusToCenter ( )

Returns the is radius to center
Created in NX9.0.0.

License requirements : None

NXOpen::Annotations::DimensionMeasurementBuilder* NXOpen::Annotations::BaseRadialDimensionBuilder::Measurement ( )

Returns the measurement
Created in NX9.0.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::Annotations::BaseRadialDimensionBuilder::OffsetCenterPoint ( )

Returns the offset center point
Created in NX9.0.0.

License requirements : None

NXOpen::Annotations::OriginBuilder* NXOpen::Annotations::BaseRadialDimensionBuilder::Origin ( )

Returns the origin
Created in NX9.0.0.

License requirements : None

void NXOpen::Annotations::BaseRadialDimensionBuilder::SetFoldedRadius ( bool isFoldedRadius )

Sets the is folded radius
Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

Parameters

isFoldedRadius isfoldedradius

void NXOpen::Annotations::BaseRadialDimensionBuilder::SetHoleStyle ( bool isArrowsOutDia )

Sets the is hole style dimension
Created in NX9.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

isArrowsOutDia isarrowsoutdia

void NXOpen::Annotations::BaseRadialDimensionBuilder::SetRadiusToCenter ( bool isRadiusToCenter )

Sets the is radius to center
Created in NX9.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

isRadiusToCenter isradiustocenter

NXOpen::Annotations::StyleBuilder* NXOpen::Annotations::BaseRadialDimensionBuilder::Style ( )

Returns the style
Created in NX9.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Annotations_BaseRadialDimensionBuilder.hxx
