Represents a Note
This is an abstract class and cannot be directly instantiated

Created in NX6.0.0. More...

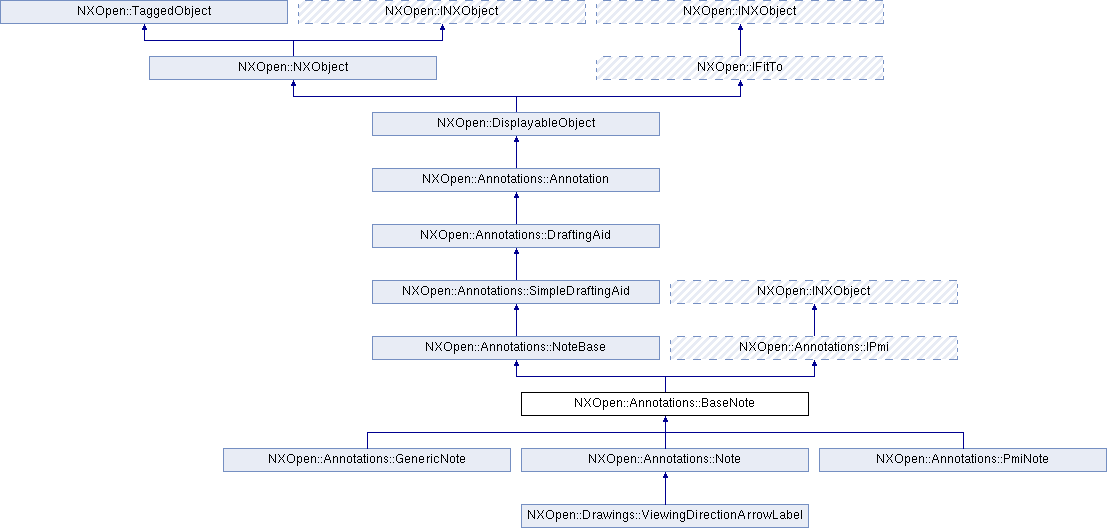

Inheritance diagram for NXOpen::Annotations::BaseNote:

Public Member Functions
virtual NXOpen::Annotations::AssociatedObject *	GetAssociatedObject ()
	Returns the associated object.

virtual std::vector < NXOpen::Annotations::BusinessModifier * >	GetBusinessModifiers ()
	Returns the business modifiers.

virtual NXOpen::Annotations::AssociatedObject *	GetSharedAssociatedObject ()
	Returns the shared associated objects.

virtual int	Index ()
	Returns the index.

virtual bool	IsMirrored ()
	Returns a flag indicating whether the annotation is mirrored Created in NX8.5.0.

bool	IsVertical ()
	Returns a flag indicating whether the note is vertical.

virtual void	SetAssociatedObject (NXOpen::Annotations::AssociatedObject *assocObj)
	Sets the associated object.

virtual void	SetBusinessModifiers (const std::vector< NXOpen::Annotations::BusinessModifier * > &businessModifiers)
	Sets the business modifiers.

virtual void	SetIndex (int index)
	Sets the index.

void	SetVertical (bool isVertical)
	Sets a flag indicating whether the note is vertical.

void	UpdateFromRule ()
	Updates the specified note from the KF rule.

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...

enum	ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...

Detailed Description

Represents a Note
This is an abstract class and cannot be directly instantiated

Created in NX6.0.0.

Member Function Documentation

virtual NXOpen::Annotations::AssociatedObject* NXOpen::Annotations::BaseNote::GetAssociatedObject ( )

virtual

Returns the associated object.

Returns: Associated object
Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::IPmi.

virtual std::vector<NXOpen::Annotations::BusinessModifier *> NXOpen::Annotations::BaseNote::GetBusinessModifiers ( )

virtual

Returns the business modifiers.

Returns: List of business modifiers
Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::IPmi.

virtual NXOpen::Annotations::AssociatedObject* NXOpen::Annotations::BaseNote::GetSharedAssociatedObject ( )

virtual

Returns the shared associated objects.

Returns: Shared associated objects
Created in NX8.5.0.

License requirements : None

Implements NXOpen::Annotations::IPmi.

virtual int NXOpen::Annotations::BaseNote::Index ( )

virtual

Returns the index.

It is a unique integer assigned to a PMI object.

      NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
            If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::IPmi.

virtual bool NXOpen::Annotations::BaseNote::IsMirrored ( )

virtual

Returns a flag indicating whether the annotation is mirrored
Created in NX8.5.0.

License requirements : None

Implements NXOpen::Annotations::IPmi.

bool NXOpen::Annotations::BaseNote::IsVertical ( )

Returns a flag indicating whether the note is vertical.

       When editing this, the changes are not applied to the system until
       an update is performed.  An update can be performed by calling @link Update::DoUpdate Update::DoUpdate@endlink .

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX3.0.0.

License requirements : None

virtual void NXOpen::Annotations::BaseNote::SetAssociatedObject ( NXOpen::Annotations::AssociatedObject * assocObj )

virtual

Sets the associated object.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

assocObj New associated object

Implements NXOpen::Annotations::IPmi.

virtual void NXOpen::Annotations::BaseNote::SetBusinessModifiers ( const std::vector< NXOpen::Annotations::BusinessModifier * > & businessModifiers )

virtual

Sets the business modifiers.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

businessModifiers List of new business modifiers

Implements NXOpen::Annotations::IPmi.

virtual void NXOpen::Annotations::BaseNote::SetIndex ( int index )

virtual

Sets the index.

It is a unique integer assigned to a PMI object.

      NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
            If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

index New integer for PMI object

Implements NXOpen::Annotations::IPmi.

void NXOpen::Annotations::BaseNote::SetVertical ( bool isVertical )

Sets a flag indicating whether the note is vertical.

       When editing this, the changes are not applied to the system until
       an update is performed.  An update can be performed by calling @link Update::DoUpdate Update::DoUpdate@endlink .

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX3.0.0.

License requirements : drafting ("DRAFTING")

Parameters

isVertical is vertical

void NXOpen::Annotations::BaseNote::UpdateFromRule ( )

Updates the specified note from the KF rule.

    <br>
       The changes are not applied till an update is performed by
       calling @link Update::DoUpdate Update::DoUpdate@endlink  .
    <br>

Created in NX8.0.0.

License requirements : drafting ("DRAFTING")

The documentation for this class was generated from the following file:

Annotations_BaseNote.hxx
