Represents a Base Centerline3d Builder for pmi and drafting 3D centerlines
This is an abstract class, and cannot be instantiated. More...

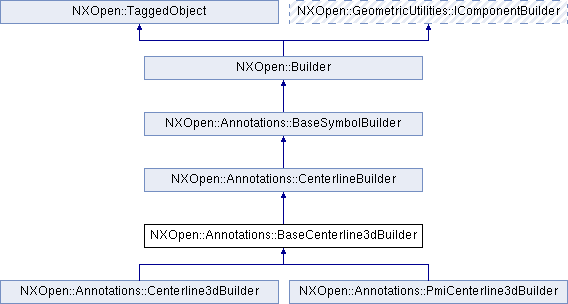

Inheritance diagram for NXOpen::Annotations::BaseCenterline3dBuilder:

Public Member Functions
NXOpen::SelectNXObjectList *	Face ()
	Returns the face Created in NX6.0.0.

int	ReferenceIndex ()
	Returns the reference index Created in NX6.0.0.

void	SetReferenceIndex (int referenceIndex)
	Sets the reference index Created in NX6.0.0.

NXOpen::Annotations::Centerline3dSettingsBuilder *	Settings ()
	Returns the settings builder Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Annotations::CenterlineBuilder
void	AddEndExtensions (double start, double end)
	Adds extensions only at ends Created in NX6.0.0.

void	AddExtension (int index, double defaultValue)
	Adds extension based on select object index Created in NX6.0.0.

std::vector< double >	GetAllExtensions ()
	Returns all extensions.

std::vector< double >	GetAllIndividualExtensions ()
	Returns individual extensions.

std::vector< double >	GetEndExtensions ()
	Returns end extensions only.

void	RemoveEndExtensions ()
	Removes extensions only at ends Created in NX6.0.0.

void	RemoveExtension (int index)
	Removes extension based on select object index Created in NX6.0.0.

void	ResetAllExtensions (double defaultValue)
	Reset all extensions by the supplied defaultValue Created in NX6.0.1.

void	SetAllIndividualExtensions (const std::vector< double > &extensionValues)
	Sets all individual extensions Created in NX8.0.1.

void	SetEndExtensions (double start, double end)
	Modifies end extensions only Created in NX6.0.0.

void	SetIndividualExtensions (int index, double value1, double value2)
	Modifies extensions based on select object index Created in NX6.0.0.

Detailed Description

Represents a Base Centerline3d Builder for pmi and drafting 3D centerlines
This is an abstract class, and cannot be instantiated.

Default values.

Property

Settings.Extension

6.35 (millimeters part), 0.25 (inches part)

Settings.Gap

1.5875 (millimeters part), 0.0625 (inches part)

Settings.IndividualDistance

0

Settings.Size

3.175 (millimeters part), 0.125 (inches part)

Settings.Width

Thin

Created in NX7.5.0.

Member Function Documentation

NXOpen::SelectNXObjectList* NXOpen::Annotations::BaseCenterline3dBuilder::Face ( )

Returns the face
Created in NX6.0.0.

License requirements : None

int NXOpen::Annotations::BaseCenterline3dBuilder::ReferenceIndex ( )

Returns the reference index
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::BaseCenterline3dBuilder::SetReferenceIndex ( int referenceIndex )

Sets the reference index
Created in NX6.0.0.

License requirements : drafting ("DRAFTING") OR geometric_tol ("GDT")

Parameters

referenceIndex referenceindex

NXOpen::Annotations::Centerline3dSettingsBuilder* NXOpen::Annotations::BaseCenterline3dBuilder::Settings ( )

Returns the settings builder
Created in NX6.0.0.

License requirements : None
