NXOpen::Annotations::AutomaticCenterlineBuilder Class Reference

Builder for creating Automatic Centerlines  <br> To create a new instance of this class, use @link Annotations::CenterlineCollection::CreateAutomaticCenterlineBuilder  Annotations::CenterlineCollection::CreateAutomaticCenterlineBuilder @endlink  <br>

Default values. More...

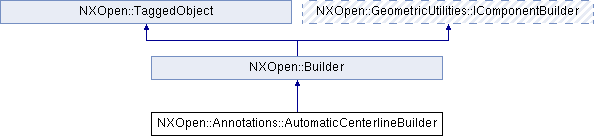

Inheritance diagram for NXOpen::Annotations::AutomaticCenterlineBuilder:

Public Types
enum	CenterlineThickness {   CenterlineThicknessThin, CenterlineThicknessNormal, CenterlineThicknessThick, CenterlineThicknessOne = 6,   CenterlineThicknessTwo, CenterlineThicknessThree, CenterlineThicknessFour, CenterlineThicknessFive,   CenterlineThicknessSix, CenterlineThicknessSeven, CenterlineThicknessEight, CenterlineThicknessNine }
	the types of centerline thickness More...

Public Member Functions
NXOpen::NXColor *	Color ()
	Returns the color Created in NX6.0.0.
double	CylindricalExtension ()
	Returns the cylindrical extension Created in NX6.0.0.
bool	InheritAngle ()
	Returns the inherit angle Created in NX6.0.0.
void	SetColor (NXOpen::NXColor *color)
	Sets the color Created in NX6.0.0.
void	SetCylindricalExtension (double cylindricalExtension)
	Sets the cylindrical extension Created in NX6.0.0.
void	SetInheritAngle (bool inheritAngle)
	Sets the inherit angle Created in NX6.0.0.
void	SetWidth (NXOpen::Annotations::AutomaticCenterlineBuilder::CenterlineThickness width)
	Sets the width Created in NX6.0.0.
NXOpen::Drawings::SelectDraftingViewList *	Views ()
	Returns the selected views Created in NX6.0.0.
NXOpen::Annotations::AutomaticCenterlineBuilder::CenterlineThickness	Width ()
	Returns the width Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Builder for creating Automatic Centerlines  <br> To create a new instance of this class, use @link Annotations::CenterlineCollection::CreateAutomaticCenterlineBuilder  Annotations::CenterlineCollection::CreateAutomaticCenterlineBuilder @endlink  <br>

Default values.

Property	Value
CylindricalExtension	1.5 (millimeters part), 0.0625 (inches part)
InheritAngle	1
Width	Thin

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Annotations::AutomaticCenterlineBuilder::CenterlineThickness

the types of centerline thickness

Enumerator:

CenterlineThicknessThin	thin
CenterlineThicknessNormal	normal
CenterlineThicknessThick	thick
CenterlineThicknessTwo	Width Two.
CenterlineThicknessThree	Width Three.
CenterlineThicknessFour	Width Four.
CenterlineThicknessFive	Width Five.
CenterlineThicknessSix	Width Six.
CenterlineThicknessSeven	Width Seven.
CenterlineThicknessEight	Width Eight.
CenterlineThicknessNine	Width Nine.

Member Function Documentation

NXOpen::NXColor* NXOpen::Annotations::AutomaticCenterlineBuilder::Color

(

)

Returns the color
Created in NX6.0.0.

License requirements : None

double NXOpen::Annotations::AutomaticCenterlineBuilder::CylindricalExtension

(

)

Returns the cylindrical extension
Created in NX6.0.0.

License requirements : None

bool NXOpen::Annotations::AutomaticCenterlineBuilder::InheritAngle

(

)

Returns the inherit angle
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::AutomaticCenterlineBuilder::SetColor

(

NXOpen::NXColor *

color

)

Sets the color
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

color

color

void NXOpen::Annotations::AutomaticCenterlineBuilder::SetCylindricalExtension

(

double

cylindricalExtension

)

Sets the cylindrical extension
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

cylindricalExtension

cylindricalextension

void NXOpen::Annotations::AutomaticCenterlineBuilder::SetInheritAngle

(

bool

inheritAngle

)

Sets the inherit angle
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

inheritAngle

inheritangle

void NXOpen::Annotations::AutomaticCenterlineBuilder::SetWidth

(

NXOpen::Annotations::AutomaticCenterlineBuilder::CenterlineThickness

width

)

Sets the width
Created in NX6.0.0.

License requirements : drafting ("DRAFTING")

Parameters

width

width

NXOpen::Drawings::SelectDraftingViewList* NXOpen::Annotations::AutomaticCenterlineBuilder::Views

(

)

Returns the selected views
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::AutomaticCenterlineBuilder::CenterlineThickness NXOpen::Annotations::AutomaticCenterlineBuilder::Width

(

)

Returns the width
Created in NX6.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Annotations_AutomaticCenterlineBuilder.hxx
