Represents an arc length dimension
To create or edit an instance of this class, use Annotations::CurveLengthDimensionBuilder
Created in NX4.0.0.
More...

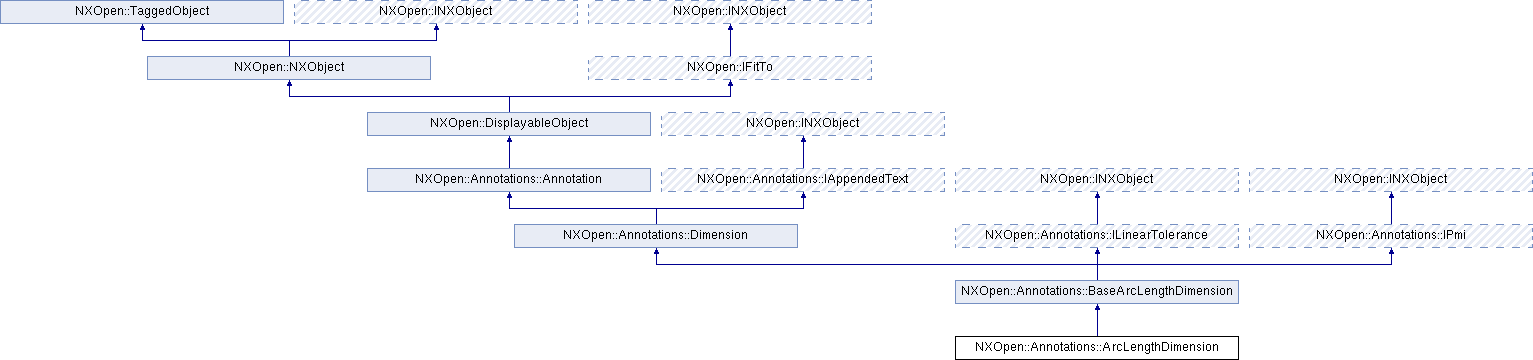

Inheritance diagram for NXOpen::Annotations::ArcLengthDimension:
Additional Inherited Members | |
 Public Types inherited from NXOpen::DisplayableObject | |
| enum | ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed } |
| specifies the object font for objects such as lines Created in NX3.0.0. More... | |
| enum | ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine } |
| specifies object width for objects such as lines and text Created in NX3.0.0. More... | |
| Public Member Functions inherited from NXOpen::Annotations::BaseArcLengthDimension | |
| virtual NXOpen::Annotations::AssociatedObject * | GetAssociatedObject () |
| Returns the associated object. | |
| virtual std::vector < NXOpen::Annotations::BusinessModifier * > | GetBusinessModifiers () |
| Returns the business modifiers. | |
| virtual NXOpen::Annotations::AssociatedObject * | GetSharedAssociatedObject () |
| Returns the shared associated objects. | |
| virtual NXOpen::Annotations::LinearTolerance * | GetTolerance () |
| Returns the tolerance. | |
| virtual int | Index () |
| Returns the index. | |
| virtual bool | IsMirrored () |
| Returns a flag indicating whether the annotation is mirrored Created in NX8.5.0. | |
| virtual void | SetAssociatedObject (NXOpen::Annotations::AssociatedObject *assocObj) |
| Sets the associated object. | |
| virtual void | SetBusinessModifiers (const std::vector< NXOpen::Annotations::BusinessModifier * > &businessModifiers) |
| Sets the business modifiers. | |
| virtual void | SetIndex (int index) |
| Sets the index. | |
| virtual void | SetTolerance (NXOpen::Annotations::LinearTolerance *tolerance) |
| Sets the tolerance. | |
Detailed Description
Represents an arc length dimension
To create or edit an instance of this class, use Annotations::CurveLengthDimensionBuilder
Created in NX4.0.0.
The documentation for this class was generated from the following file:
- Annotations_ArcLengthDimension.hxx
