Prism Example

Demonstrates the creation of two solid prisms, one (PRISM1) with a positive height value, the other (PRISM2) with a negative height value.


$$
$$ Declarations
$$
    ENTITY/PRISM1,PRISM2
$$
$$ Geometry Definition
$$
    PRISM1 = SOLPRI/ORIGIN,-1.5,-1.5,-1.5,HEIGHT,$
    1,DIAMTR,.5,SIDE,5
    PRISM2 = SOLPRI/ORIGIN,1.5,1.5,1.5,HEIGHT,$
    -1,DIAMTR,.5,SIDE,5
    HALT

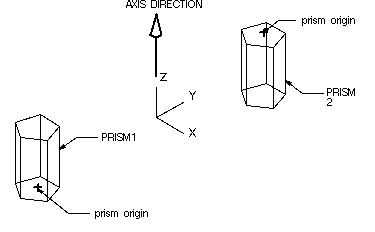

Solid Prism Creation, Positive vs. Negative Height Values
