X Axis, Y Axis Example

Creating a coordinate system by specifying two previously defined lines.

$$
$$ Declarations
$$
    ENTITY/LN1,LN2,CSYS1
$$
$$ Geometry Definition
$$
    LN1 =LINE/-1,-1,1,1
    LN2 =LINE/-1,1,-.5,0
$$
$$ Coordinate System Definition
$$
    CSYS1=CSYS/LN1,LN2

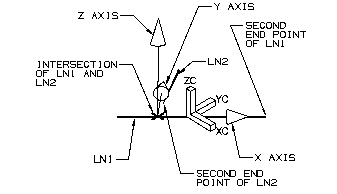

Coordinate System Defined by Two Lines
