Existing Coordinate System Example

Creating a coordinate system by specifying an existing coordinate system and a new origin.

$$
$$ Declarations
$$
    ENTITY/CR1,PT1,CSYS1,CSYS2
$$
$$ Geometry Definition
$$
    CR1=CIRCLE/0,0,1
    PT1=POINT/1,1
    CSYS1=CSYS/CR1
$$
$$ Coordinate System Definition
$$
    CSYS2=CSYS/CSYS1,ORIGIN,PT1

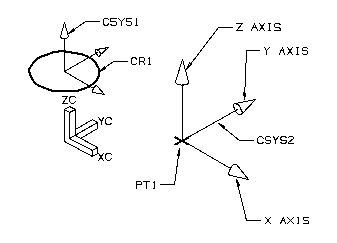

Coordinate System Defined by an Existing Coordinate System
