Coordinate System of a Conic Example

Creating a coordinate system by specifying a previously defined ellipse.

$$
$$ Declarations
$$
    ENTITY/PT1,ELIPS1,CSYS1
$$
$$ Geometry Definition
$$
    PT1 =POINT/1,1
    ELIPS1=ELLIPS/PT1,2,1
$$
$$ Coordinate System Definition
$$
    CSYS1=CSYS/ELIPS1

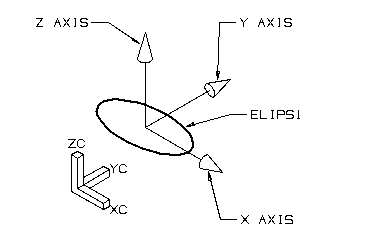

Coordinate System Defined by an Ellipse
