Coordinate System of an Arc Example

Creating a coordinate system by specifying a previously defined arc.

$$
$$ Declarations
$$
    ENTITY/CR1,CSYS1
$$
$$ Geometry Definition
$$
    CR1=CIRCLE/1,1,1
$$
$$ Coordinate System Definition
$$
    CSYS1=CSYS/CR1

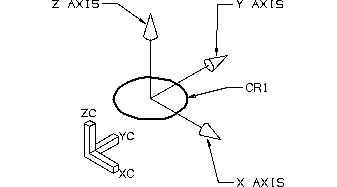

Coordinate System Defined by an Arc
