2D Analysis Example 1

This example demonstrates the use of the 2D analysis statement.

$$
$$ Declarations
$$
    ENTITY/OSIDE(4),ISIDE(3),OBNDRY,IBNDRY
    NUMBER/RETRN(32)
$$
$$ Geometry Definition
$$
    OSIDE(1)=LINE/.25,.25,4.25,.25
    OSIDE(2)=LINE/4.25,.25,4.25,3
    OSIDE(3)=LINE/4.25,3,.25,3
    OSIDE(4)=LINE/.25,3,.25,.25
    ISIDE(1)=LINE/3.25,.5,1.25,.5
    ISIDE(2)=LINE/1.25,.5,2.25,2.75
    ISIDE(3)=LINE/2.25,2.75,3.25,.5
    OBNDRY=BOUND/OSIDE(1..4)
    IBNDRY=BOUND/ISIDE(1..3)
$$
$$ Analysis
$$
    ANLSIS/TWOD,OBNDRY,IBNDRY,INCHES,RETRN(1..32)

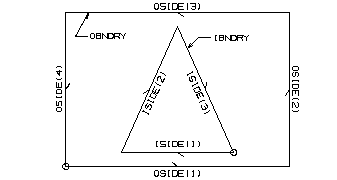

A Two Dimensional Analysis Using Boundary Objects
