Translate Example

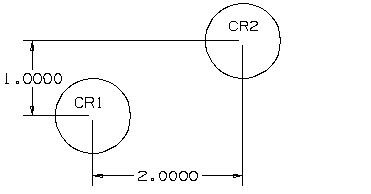

This example demonstrates the creation of a circle (CR2) by transforming a copy of CR1 using a translation matrix.

$$
$$ Declarations
$$
    ENTITY/CR1,CR2
    NUMBER/MAT1(12)
$$
$$ Geometry Definition
$$
    CR1 =CIRCLE/-1,-.5,.5
$$
$$ Matrix Definition
$$
    MAT1=MATRIX/TRANSL,2,1,0
$$
$$ Transformation
$$
    CR2 =TRANSF/MAT1,CR1

Translation Matrix
