Transformation Example

This example demonstrates the transformation of several objects using the TRANSF statement.

Trace curves are also created by specifying the TRACRV minor word.

$$
$$ Declarations
$$
    ENTITY/LN(8)
    NUMBER/MAT1(12)
$$
$$ Geometry Definition
$$
    LN(1) =LINE/.25,.25,3,.25
    LN(2) =LINE/3,.25,3,2
    LN(3) =LINE/3,2,.25,2
    LN(4) =LINE/.25,2,.25,.25
$$
$$ Matrix Definition
$$
    MAT1 = MATRIX/TRANSL,0,0,1
$$
$$ Transformation
$$
    LN(5..8)=TRANSF/MAT1,LN(1..4),TRACRV

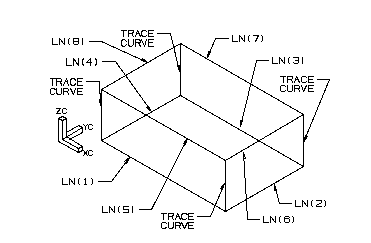

Transformation with Trace Curves
